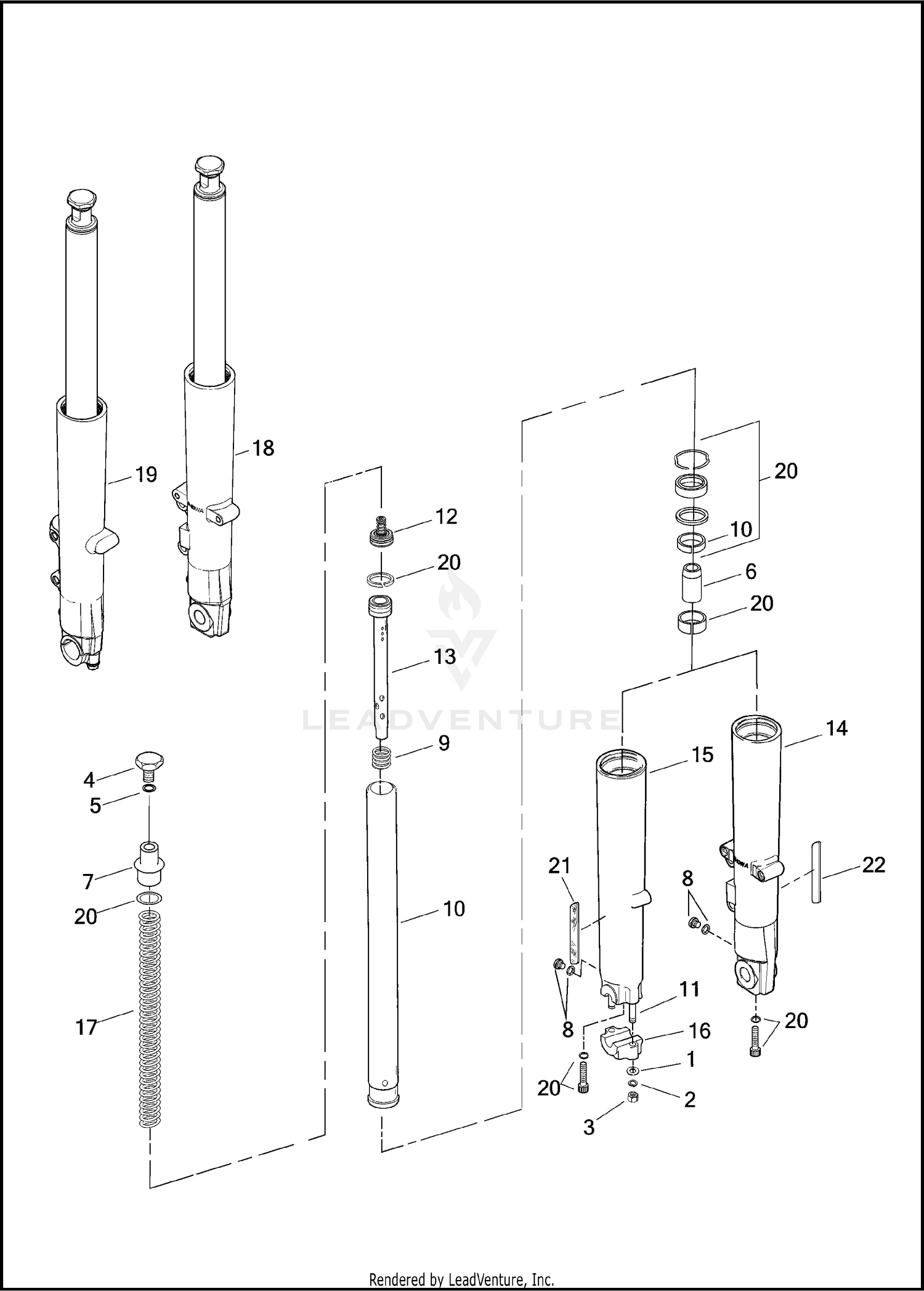

| Ref | Part Number | Description |
|---|
| 1 |
6702 |
WASHER 5/16 X 11/16 X 1/16 Price: $0.59 |
| 2 |
7041 |
LOCKWASHER,REGULAR Price: $0.59 |
| 3 |
7748W |
NUT 5/16-18 X 1/4 X 1/2 (GRADE 2) Price: $1.39 |
| 4 |
45419-80 |
BOLT FORK Price: $17.09 |
| 5 |
45733-48 |
OIL SEAL Price: $1.38 |
| 6 |
45803-97 |
STOP OIL LOCK PIECE Price: $9.68 |
| 7 |
45838-77 |
BOLT FRONT FORK Price: $26.52 |
| 8 |
45858-77 |
SCREW DRAIN, W/ WASHER Price: $3.56 |
| 9 |
45933-86 |
REBOUND SPRING Price: $3.76 |
| 10 |
45972-09 |
STANCHION TUBE ASSEMBLY W/ SLIDER BUSHING Price: $176.75 |
| 11 |
45998-73 |
STUD (RIGHT-HAND) Price: $4.12 |
| 12 |
46209-06 |
DAMPING VALVE Price: $36.51 |
| 13 |
46422-09 |
DAMPER TUBE W/ PISTON RING Price: $40.08 |
| 14 |
45500169 |
SLIDER,LH/FRT FORK,CHRM This part replaces 46473-00B. Price: $361.08 |
| 15 |
45500168 |
SLIDER,RH/FRT FORK,CHRM This part replaces 46474-00C. Price: $361.08 |
| 16 |
46658-07 |
HOLDER AXLE (RIGHT-HAND) Price: $42.20 |
| 17 |
48787-09 |
SPRING Price: $32.81 |
| 18 |
48789-09 |
FORK ASSEMBLY COMPLETE (LEFT-HAND) (CHROME) Not Available Price: |
| 19 |
48790-09 |
FORK ASSEMBLY COMPLETE (RIGHT-HAND) (CHROME) Not Available Price: |
| 20 |
49377-09A |
FORK REBUILT KIT Price: $48.53 |
| 21 |
59481-00 |
REFLECTOR (RIGHT-HAND) (AMBER) Price: $7.76 |
