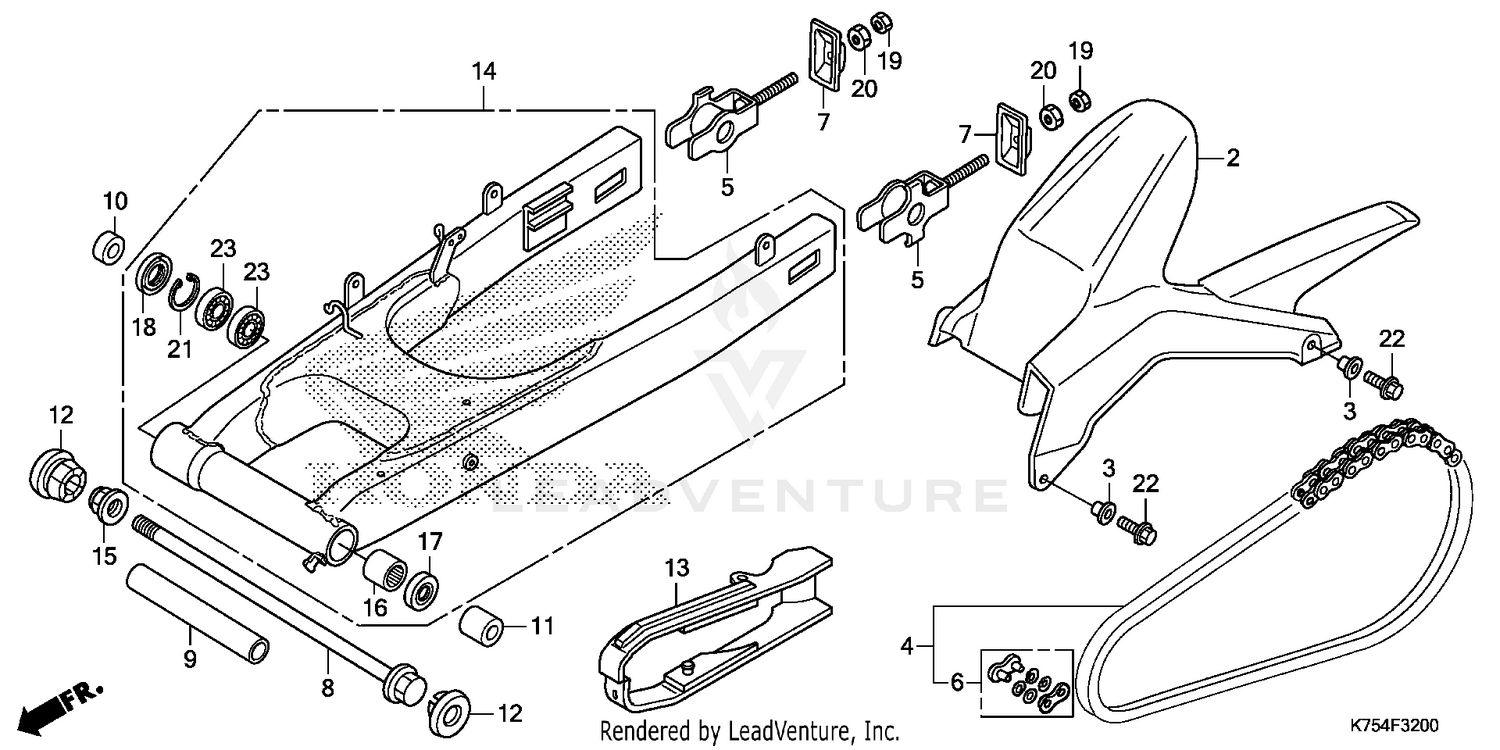

| Ref | Part Number | Description |
|---|
| 2 |
40510-KYJ-900 |
CASE, DRIVE CHAIN Price: $34.22 |
| 3 |
40511-KYJ-900 |
COLLAR Price: $0.67 |
| 4 |
40540-KYJ-902 |
CHAIN, DRIVE (DID520VF-120ZB) (DAIDO) (STANDARD LINK 108L) This part replaces 40540-KYJ-901. Price: $166.67 |
| 5 |
40543-KYJ-900 |
ADJUSTER, CHAIN Price: $9.96 |
| 6 |
40545-KYJ-902 |
MASTER LINK (DAIDO) This part replaces 40545-KYJ-901. Price: $17.51 |
| 7 |
40546-KYJ-900 |
CAP, SWINGARM END Price: $3.95 |
| 8 |
52101-KYJ-900 |
BOLT, SWINGARM PIVOT Price: $16.64 |
| 9 |
52102-ML4-000 |
COLLAR, PIVOT DISTANCE Price: $31.93 |
| 10 |
52105-MJ0-000 |
COLLAR B, RR. SWINGARM PIVOT Price: $6.42 |
| 11 |
52106-KYJ-900 |
COLLAR, PIVOT Price: $14.38 |
| 12 |
52161-KYJ-900 |
CAP, SWINGARM PIVOT Price: $2.60 |
| 13 |
52170-KYJ-900 |
SLIDER, CHAIN Price: $8.33 |
| 14 |
52200-KYJ-900 |
SWINGARM SUB-ASSY., RR. Price: $280.44 |
| 15 |
90305-KCJ-951 |
NUT, U (14MM) (FUJI SEIMITSU) Price: $6.71 |
| 16 |
91071-MJ0-004 |
BEARING, NEEDLE (THOMPSON) This part replaces 91071-MJ0-003. Price: $44.65 |
| 17 |
91205-965-003 |
OIL SEAL (22X31X5) (ARAI) Price: $7.29 |
| 18 |
91213-MB2-003 |
DUST SEAL (22X35X7) (ARAI) Price: $9.36 |
| 19 |
94002-080000S |
NUT,HEX 8MM Price: $1.37 |
| 20 |
94031-08000 |
NUT, HEX. (8MM) NUT, FLANGE (10MM) Price: $1.12 |
| 21 |
94520-35000 |
CIRCLIP (INNER) (35MM) Price: $2.03 |
| 22 |
95701-06012-07 |
BOLT, FLANGE (6X12) Price: $1.70 |
