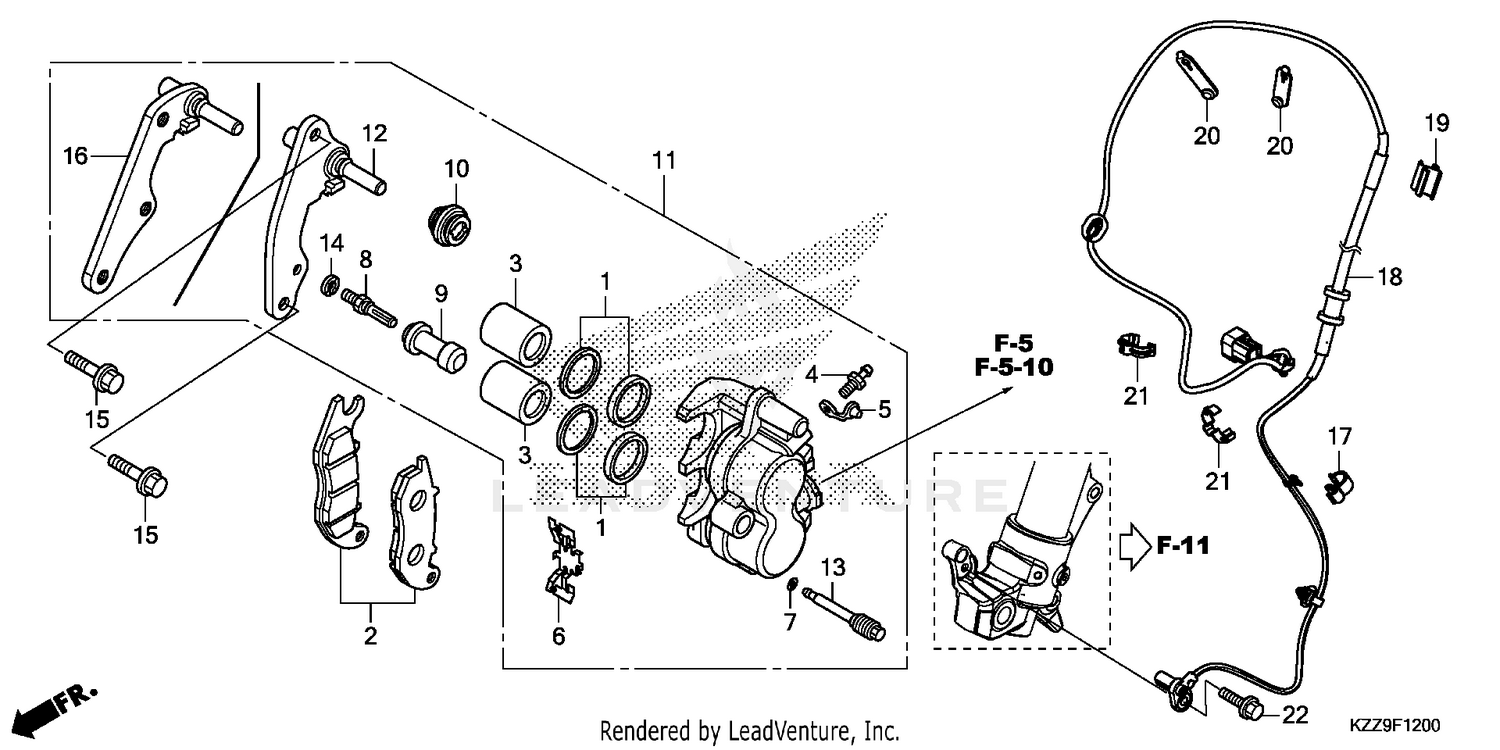

| Ref | Part Number | Description |
|---|
| 1 |
06431-MA3-405 |
SEAL SET, PISTON (RIGHT SIDE, QTY-1) Price: $9.21 |
| 2 |
06451-KZZ-902 |
PAD SET, FR. This part replaces 06451-KZZ-901. Price: $25.41 |
| 3 |
43107-MBG-006 |
PISTON (27X27) Price: $38.60 |
| 4 |
43352-568-003 |
SCREW, BLEEDER (NISSIN) Price: $9.98 |
| 5 |
43353-461-771 |
CAP, BLEEDER Price: $6.35 |
| 6 |
45108-KPH-951 |
SPRING, PAD Price: $2.18 |
| 7 |
45111-MAJ-G41 |
RING, STOPPER Price: $4.78 |
| 8 |
45131-GZ0-006 |
BOLT, PIN Price: $10.15 |
| 9 |
45132-166-016 |
BOOT, PIN BUSH (NISSIN) Price: $6.85 |
| 10 |
45133-MA3-006 |
BOOT B Price: $6.85 |
| 11 |
45150-KZZ-902 |
CALIPER SUB-ASSY., L. FR. (NISSIN) (MSDS) Price: $119.22 |
| 12 |
45190-KZZ-901 |
BRACKET SUB-ASSY., FR. CALIPER Price: $51.35 |
| 13 |
45215-KPH-951 |
PIN, HANGER Price: $3.27 |
| 14 |
45216-166-006 |
WASHER, WAVE (NISSIN) Price: $2.67 |
| 15 |
90131-KZZ-900 |
BOLT, FLANGE (8X32) Price: $0.95 |
| 17 |
38517-MGE-003 |
CLAMP, ABS WIRE (D12) Price: $3.11 |
| 18 |
38520-KZZ-G41 |
SENSOR, FR. WHEEL SPEED Price: $107.31 |
| 19 |
38525-KZZ-J80 |
CLIP, ABS WIRE Price: $5.31 |
| 20 |
90650-KZZ-J80 |
BAND, RUBBER (35MM) Price: $3.67 |
| 21 |
90690-MGS-D81 |
CLIP, CABLE (12MM) Price: $2.55 |
