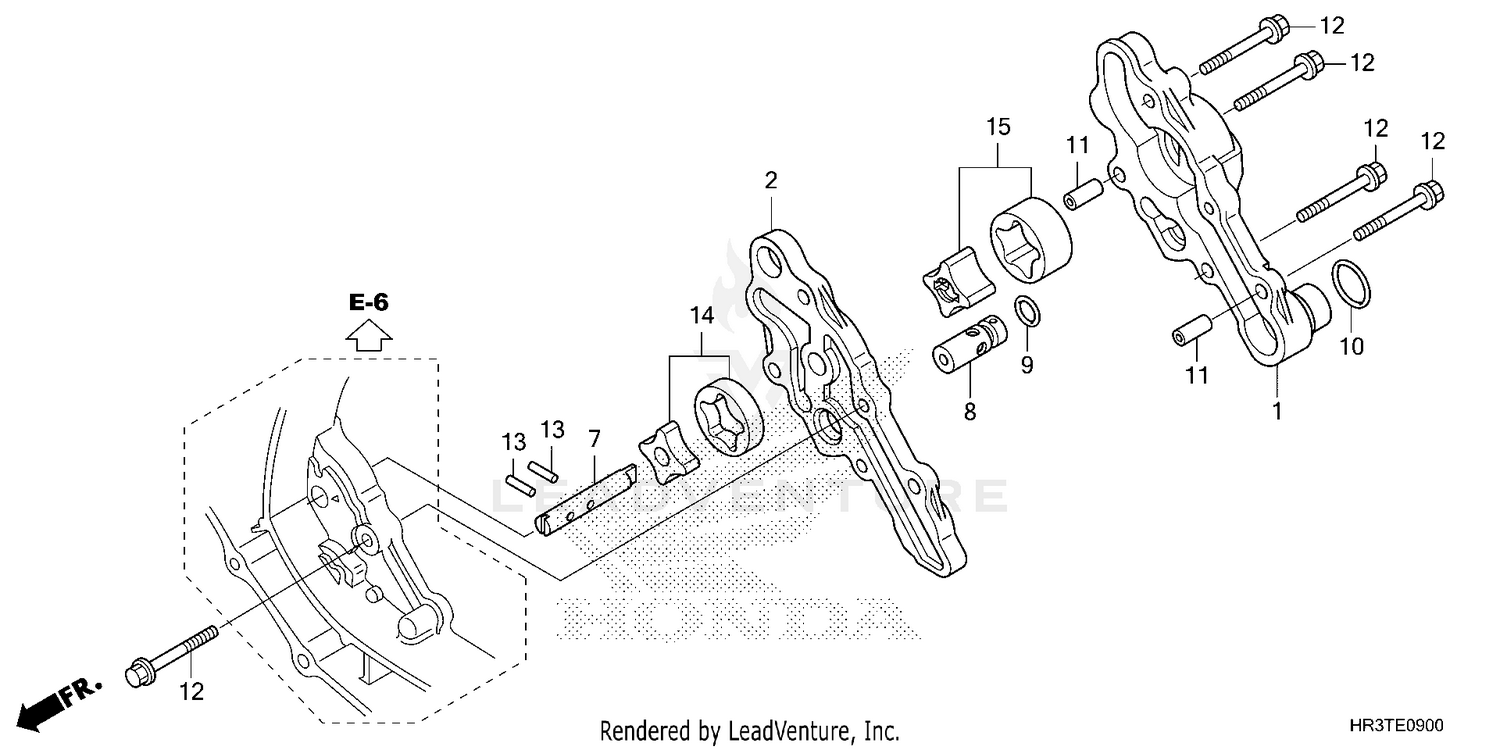

OIL PUMP (1)
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 15101-HR3-HG0 | BODY A, OIL PUMP Price: $60.53 |
| 2 | 15102-HR3-HG0 | BODY B, OIL PUMP Price: $43.25 |
| 7 | 15132-HR3-HG0 | SHAFT, OIL PUMP Price: $31.11 |
| 8 | 15240-HL4-000 | VALVE ASSY., RELIEF Price: $45.25 |
| 9 | 91313-MG7-004 | O-RING (14.8X2.2) This part replaces 91313-MB0-003. Price: $4.62 |
| 10 | 91331-PC9-003 | O-RING (21.2X2.4) (ARAI) Price: $3.93 |
| 11 | 94301-08200 | PIN, DOWEL (8X20) (Honda Code 1417369) Price: $2.35 |
| 12 | 95701-06040-00 | BOLT, FLANGE (6X40) BOLT, FLANGE (6X45) Price: $1.97 |
| 13 | 96220-40158 | ROLLER (4X15.8) Price: $0.51 |
| 14 | 15021-HR3-HG1 | ROTOR SET A Price: $51.47 |
