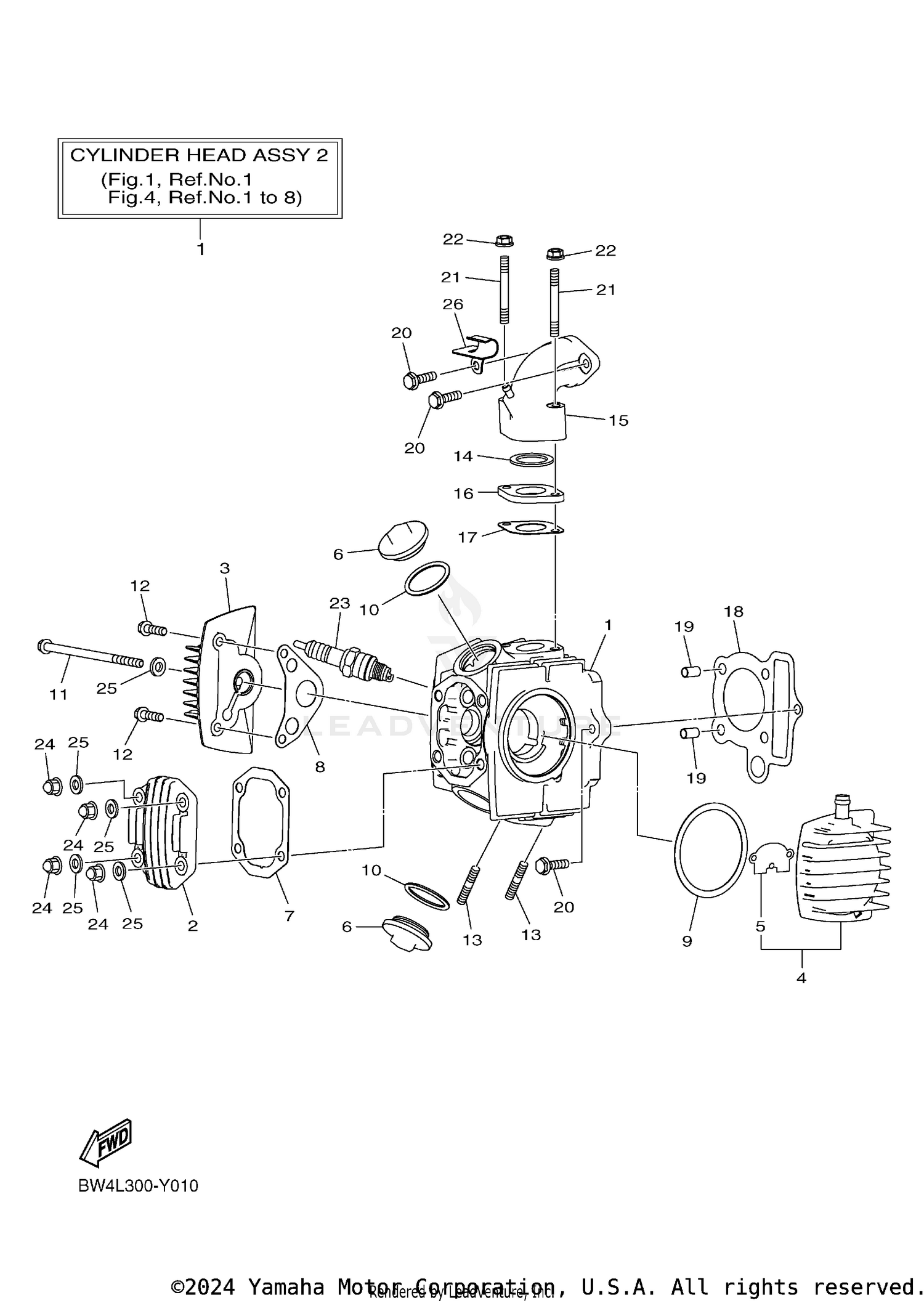

| Ref | Part Number | Description |
|---|
| 1 |
BW4-E1103-00-00 |
CYLINDER HEAD ASSY 2 Price: $398.99 |
| 2 |
BD3-E1192-00-00 |
COVER, CYLINDER HEAD 2 Price: $29.99 |
| 3 |
BD3-E112E-00-00 |
COVER, CYLINDER HEAD 3 Price: $37.99 |
| 4 |
BYS-E1191-10-00 |
COVER, CYLINDER HEAD 1 Price: $68.99 |
| 6 |
BD3-E1186-00-00 |
COVER, CYLINDER HEAD SIDE 2 Price: $9.49 |
| 7 |
BD3-E1193-20-00 |
GASKET, HEAD COVER 1 Price: $5.49 |
| 8 |
BD3-E1194-20-00 |
GASKET, HEAD COVER 2 Price: $5.49 |
| 9 |
BD3-E1169-10-00 |
GASKET, BREATHER COVER This part replaces BD3-E1169-20-00. Price: $4.30 |
| 10 |
BD3-E119B-00-00 |
O-RING Price: $11.49 |
| 11 |
BD3-E2615-10-00 |
BOLT Price: $5.49 |
| 12 |
BD3-E2623-10-00 |
BOLT Price: $4.35 |
| 13 |
BW4-E1179-00-00 |
BOLT, STUD Price: $13.49 |
| 14 |
BD3-E119A-00-00 |
O-RING Price: $4.20 |
| 15 |
BW4-E3586-00-00 |
JOINT, CARBURETOR 1 Price: $105.99 |
| 16 |
BW4-E4271-00-00 |
INSULATOR Price: $34.99 |
| 17 |
BW4-E3556-10-00 |
GASKET, MANIFOLD Price: $5.49 |
| 18 |
BW4-E1181-00-00 |
GASKET, CYLINDER HEAD 1 Price: $46.99 |
| 19 |
BD3-E3516-00-00 |
PIN, DOWEL Price: $5.49 |
| 20 |
BD3-E2157-10-00 |
BOLT Price: $2.95 |
| 21 |
BD3-E1391-10-00 |
BOLT, STUD 1 Price: $11.49 |
| 22 |
BD3-F1494-10-00 |
NUT Price: $4.35 |
| 23 |
CR6-HSA00-00-00 |
PLUG SPARK (NGK CR6HSA) Price: $5.99 |
| 24 |
BD3-E4439-10-00 |
NUT Price: $8.49 |
| 25 |
BD3-E3318-00-00 |
WASHER Price: $8.49 |
