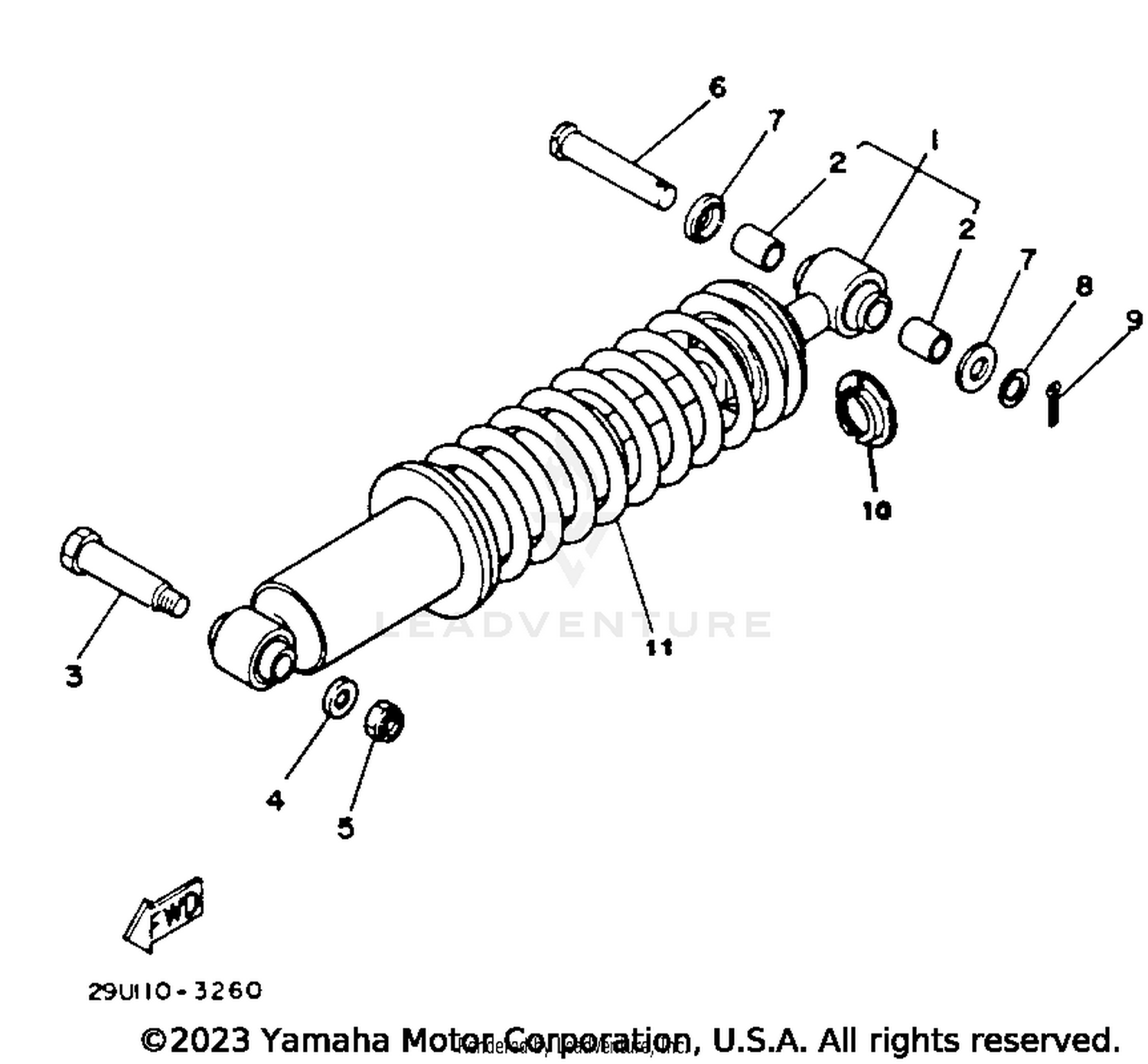

REAR SHOCKS (YTM225DXK)
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 90380-12051-00 | BUSH, SOLID Price: $17.49 |
| 3 | 90109-10736-00 | BOLT Price: $8.49 |
| 4 | 90201-102G9-00 | WASHER, PLATE Price: $10.49 |
| 5 | 95617-10100-00 | NUT, U This part replaces 95601-10100-00. Price: $9.49 |
| 6 | 90240-12092-00 | PIN, CLEVIS Price: $11.49 |
| 7 | 1W1-22128-00-00 | COVER, THRUST 1 Price: $20.99 |
| 8 | 92990-12600-00 | WASHER, PLATE Price: $9.49 |
| 9 | 91490-30030-00 | PIN, COTTER This part replaces 91401-30030-00. Price: $8.49 |
| 10 | 2VN-22214-00-00 | GUIDE, SPRING 1 Price: $30.99 |
