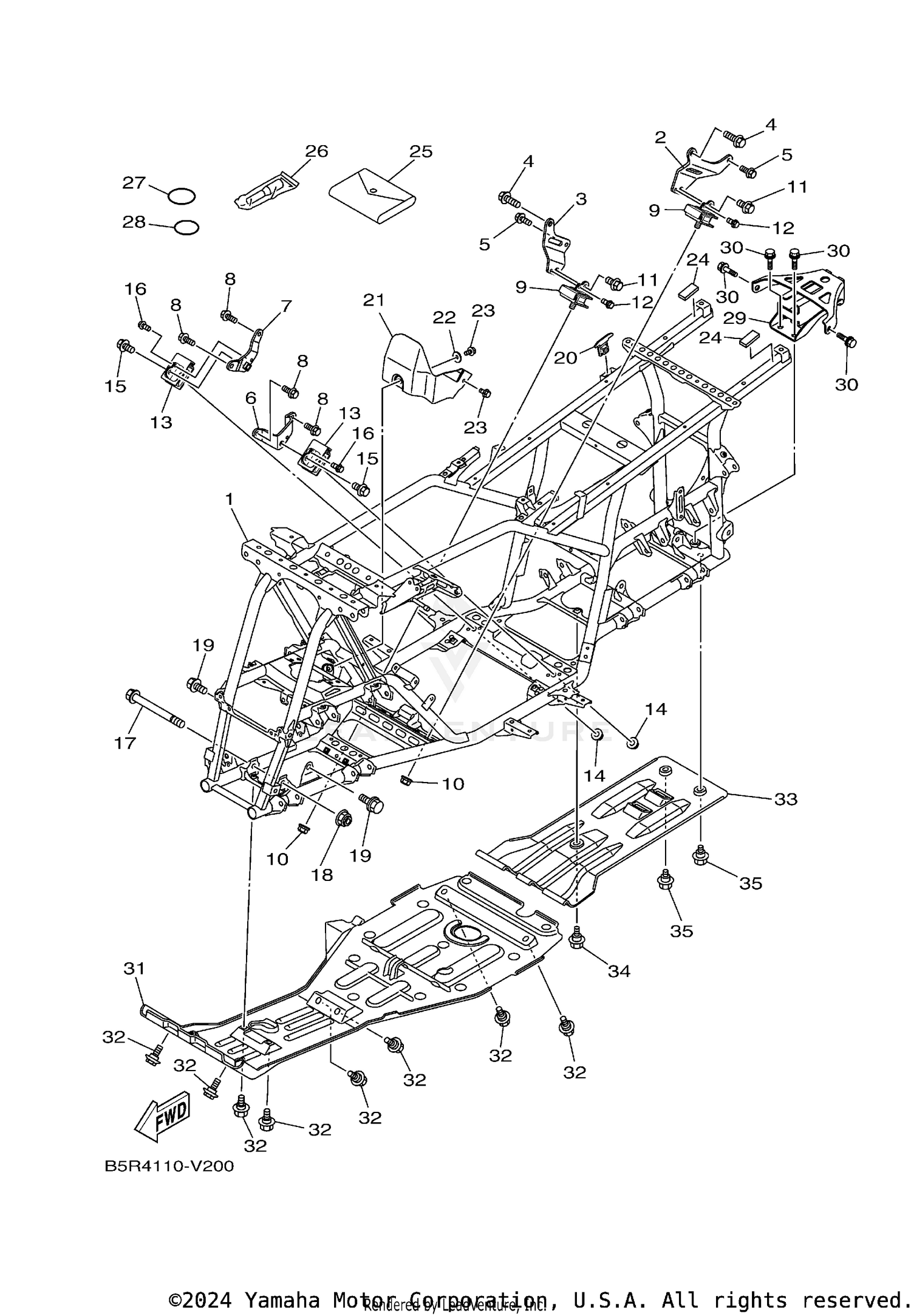

| Ref | Part Number | Description |
|---|
| 1 |
B5R-F1110-01-00 |
FRAME COMP. Price: $875.99 |
| 2 |
BB5-F1315-00-00 |
STAY, ENGINE 1 Price: $9.99 |
| 3 |
BB5-F1316-00-00 |
STAY, ENGINE 2 Price: $6.49 |
| 4 |
95D32-10030-00 |
BOLT, FLANGE DEEP RE Price: $1.75 |
| 5 |
95812-08020-00 |
BOLT, FLANGE Price: $2.80 |
| 6 |
BB5-F1317-00-00 |
STAY, ENGINE 3 Price: $5.99 |
| 7 |
BB5-F1318-00-00 |
STAY, ENGINE 4 Price: $5.49 |
| 8 |
95812-08020-00 |
BOLT, FLANGE Price: $2.80 |
| 9 |
3B4-21485-01-00 |
DAMPER, RUBBER 1 Price: $46.99 |
| 10 |
90185-10011-00 |
NUT, SELF-LOCKING Price: $4.95 |
| 11 |
95D32-10020-00 |
BOLT, FLANGE DEEP RE Price: $1.40 |
| 12 |
95E32-06012-00 |
BOLT, FLANGE DEEP RECESS Price: $1.10 |
| 13 |
3B4-21485-01-00 |
DAMPER, RUBBER 1 Price: $46.99 |
| 14 |
90185-10011-00 |
NUT, SELF-LOCKING Price: $4.95 |
| 15 |
95D32-10020-00 |
BOLT, FLANGE DEEP RE Price: $1.40 |
| 16 |
95E32-06012-00 |
BOLT, FLANGE DEEP RECESS Price: $1.10 |
| 17 |
90105-10230-00 |
BOLT, FLANGE Price: $9.49 |
| 18 |
90185-10011-00 |
NUT, SELF-LOCKING Price: $4.95 |
| 19 |
95817-10025-00 |
BOLT, FLANGE This part replaces 90105-10287-00. Price: $9.49 |
| 20 |
BB5-F1446-00-00 |
STAY, MUFFLER 2 Price: $3.55 |
| 21 |
1CT-F2825-00-00 |
PROTECTOR 1 Price: $5.49 |
| 22 |
90201-06078-00 |
WASHER, PLATE Price: $6.49 |
| 23 |
95D32-06012-00 |
BOLT, FLANGE DEEP RECESS Price: $9.49 |
| 24 |
BB5-F113B-10-00 |
DAMPER Price: $6.49 |
| 25 |
BB5-F8100-00-00 |
TOOL KIT Price: $10.49 |
| 26 |
1NV-2811A-01-00 |
GAUGE, AIR Price: $62.99 |
| 27 |
93210-92448-00 |
O-RING Price: $12.49 |
| 28 |
93210-64297-00 |
O-RING Price: $8.99 |
| 29 |
2SM-F3802-00-00 |
REAR HITCH ASSY Price: $111.99 |
| 30 |
95812-10014-00 |
BOLT, FLANGE Price: $15.49 |
| 31 |
5ND-F147A-03-00 |
GUARD, ENGINE 1 This part replaces 5ND-F147A-02-00. Price: $89.99 |
| 32 |
90109-06043-00 |
BOLT Price: $3.00 |
| 33 |
1CT-F840K-10-00 |
GUARD COMP. This part replaces 1CT-F840K-00-00. Price: $22.99 |
| 34 |
90109-06043-00 |
BOLT Price: $3.00 |
