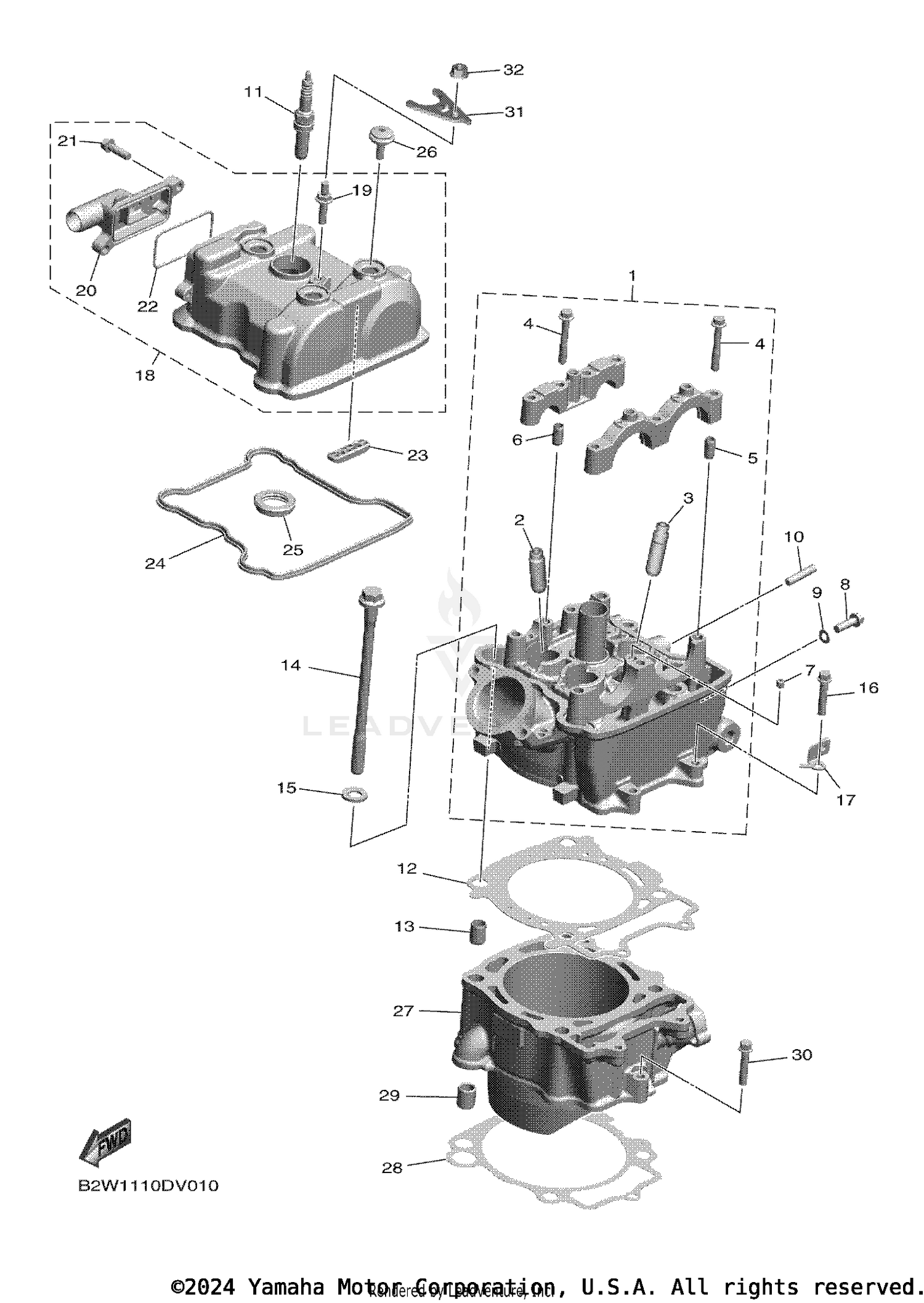

| Ref | Part Number | Description |
|---|
| 1 |
B2W-11102-00-00 |
CYLINDER HEAD ASSY Price: $818.99 |
| 2 |
B2W-11133-10-00 |
GUIDE, VALVE 1 Price: $84.99 |
| 3 |
5PS-11134-10-00 |
GUIDE, VALVE 2 Price: $84.99 |
| 4 |
90105-06027-00 |
BOLT, FLANGE Price: $8.49 |
| 5 |
91808-16023-00 |
PIN, DOWEL Price: $7.99 |
| 6 |
91808-16023-00 |
PIN, DOWEL Price: $7.99 |
| 7 |
B2W-15138-00-00 |
NOZZLE 1 Price: $5.99 |
| 8 |
95E32-06010-00 |
BOLT, FLANGE DEEP RE This part replaces 90105-06227-00. Price: $0.95 |
| 9 |
90430-06014-00 |
GASKET Price: $8.60 |
| 10 |
90116-06037-00 |
BOLT, STUD Price: $4.25 |
| 11 |
LMA-R8G00-00-00 |
LMAR8 NGK SPLUG 10PK Price: $13.49 |
| 12 |
B2W-11181-00-00 |
GASKET, CYLINDER H Price: $32.99 |
| 13 |
93612-16254-00 |
PIN, DOWEL Price: $6.49 |
| 14 |
90105-10367-00 |
BOLT, FLANGE Price: $13.49 |
| 15 |
90201-10025-00 |
WASHER, PLATE Price: $8.49 |
| 16 |
95E32-06030-00 |
BOLT, FLANGE DEEP RECESS Price: $0.80 |
| 17 |
BR9-81128-00-00 |
CLAMP Price: $8.49 |
| 19 |
90116-06049-00 |
BOLT, STUD This part replaces 90116-06048-00. Price: $5.49 |
| 20 |
BDB-11168-00-00 |
COVER, BREATHER Price: $36.99 |
| 21 |
95E32-06020-00 |
BOLT, FLANGE DEEP RE This part replaces 90105-06225-00. Price: $0.95 |
| 22 |
B2W-11169-00-00 |
GASKET, BREATHER C Price: $9.49 |
| 23 |
B2W-12241-00-00 |
GUIDE, STOPPER 2 Price: $11.49 |
| 24 |
B2W-11193-00-00 |
GASKET, HEAD COVER Price: $25.99 |
| 25 |
1SM-11194-00-00 |
GASKET, HEAD COVER 2 Price: $17.99 |
| 26 |
5UM-1119E-00-00 |
BOLT, COVER HEAD Price: $15.49 |
| 27 |
B2W-11311-00-00 |
CYLINDER 1 Price: $457.99 |
| 28 |
B2W-11351-00-00 |
GASKET, CYLINDER Price: $16.49 |
| 29 |
99530-14016-00 |
PIN, DOWEL A Price: $3.80 |
| 30 |
95E32-06030-00 |
BOLT, FLANGE DEEP RECESS Price: $0.80 |
| 31 |
BR9-11395-00-00 |
HOLDER Price: $6.49 |
