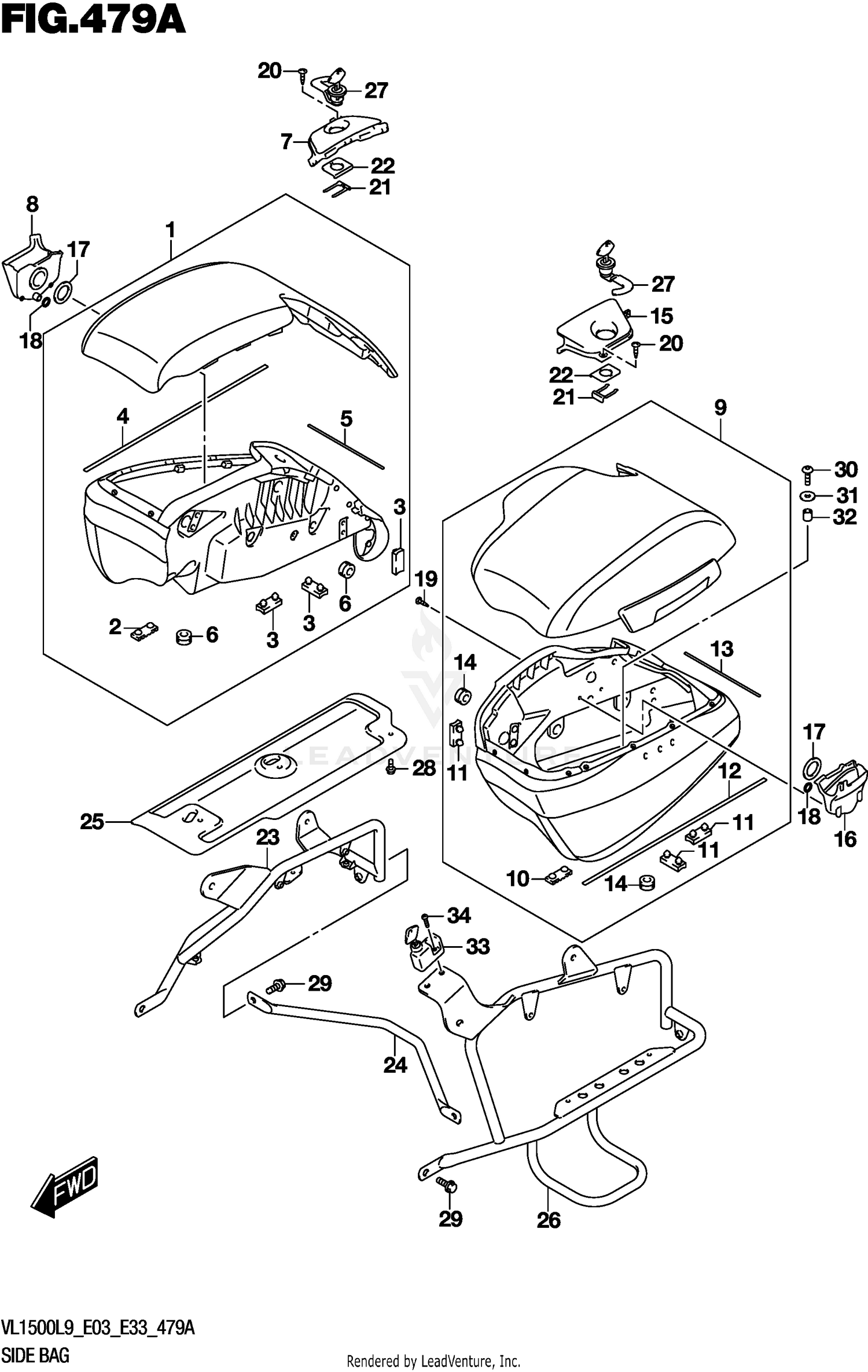

SIDE BAG (VL1500TL9 E03)
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 95400-06J51 | BAG ASSY Price: $2,481.34 |
| 7 | 95418-06J00 | COVER Price: $40.49 |
| 8 | 95419-06J00 | TRAY Price: $15.80 |
| 9 | 95500-06J42 | BAG ASSY,SIDE,L This part replaces 95500-06J41. Price: $2,406.64 |
| 15 | 95518-06J00 | COVER Price: $13.91 |
| 16 | 95519-06J00 | TRAY Price: $13.46 |
| 17 | 95533-06J00 | CUSHION Price: $2.92 |
| 18 | 09280-12012 | O RING (D:2.4,ID:11.8) This part replaces 09280-12002. Price: $5.66 |
| 19 | 03541-0516A | SCREW Price: $1.65 |
| 20 | 03541-0520B | SCREW Price: $2.77 |
| 21 | 45289-11F00 | PLATE,SEAT LOCK ASSY Price: $7.66 |
| 22 | 95425-06J00 | PLATE Price: $4.53 |
| 23 | 95470-06J00 | BRACE Price: $243.67 |
| 24 | 95481-06J00 | BRACE Price: $76.77 |
| 25 | 95482-06J00 | PLATE Price: $75.46 |
| 26 | 95570-06J00 | BRACE Price: $271.25 |
| 27 | 95700-06810 | LOCK SET Price: $110.38 |
| 28 | 01550-0612A | BOLT Price: $2.37 |
| 29 | 01550-0816B | BOLT Price: $3.33 |
| 30 | 09139-06196 | BOLT (6X25) Price: $2.66 |
| 31 | 09160-06154 | WASHER (6.5X20X1.6) Price: $2.10 |
| 32 | 09180-06120 | SPACER (6.5X11.5X12) Price: $2.79 |
| 33 | 95700-41821 | LOCK SET,HELMET Price: $165.01 |
