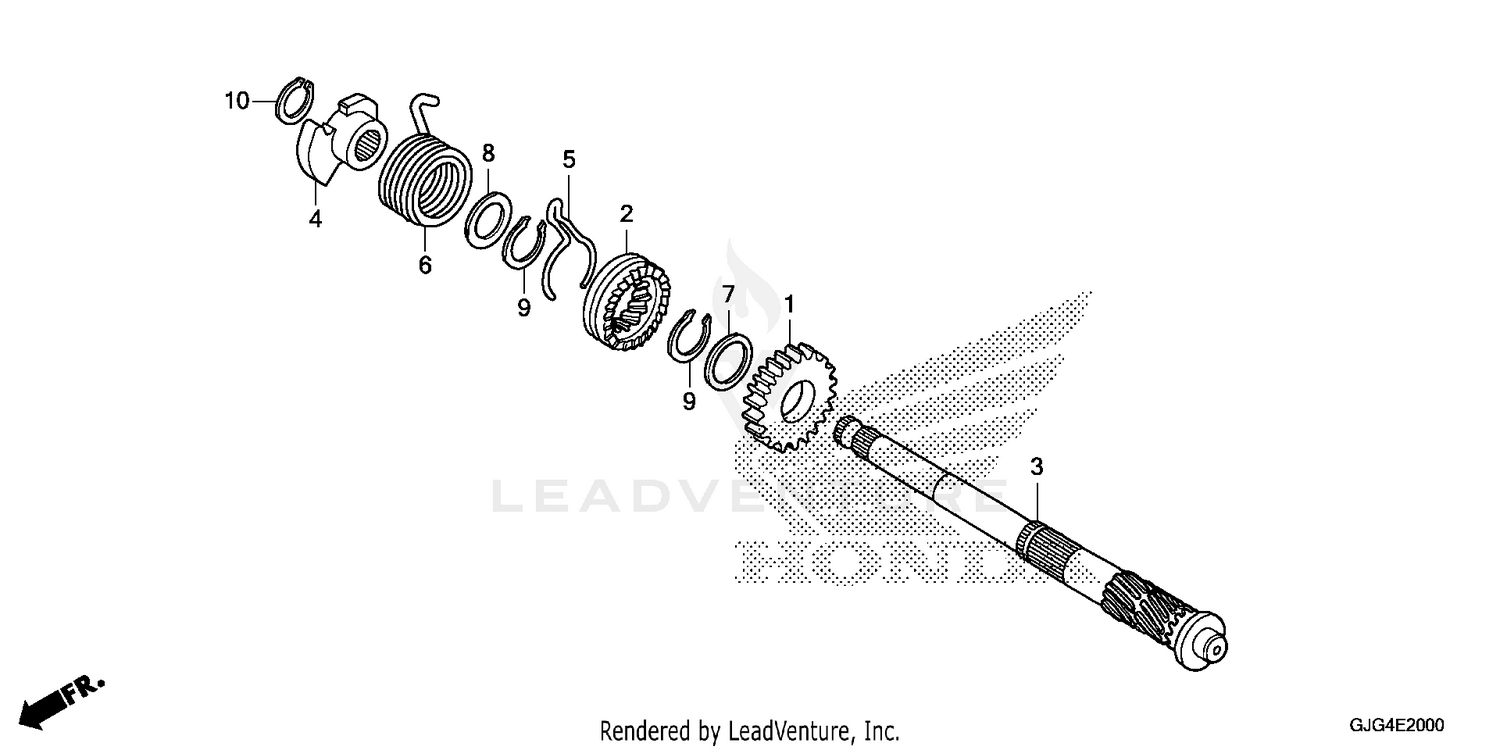

KICK STARTER SPINDLE
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 28211-GEL-A80 | PINION, KICK STARTER (21T) Price: $75.56 |
| 2 | 28221-GEL-A80 | RATCHET, STARTER DRIVE (10T) Price: $46.14 |
| 3 | 28251-GEL-A80 | SPINDLE, KICK STARTER Price: $71.20 |
| 4 | 28262-KVR-C00 | RETAINER, KICK SPRING Price: $20.65 |
| 5 | 28271-KVR-C00 | SPRING, STARTER PINION FRICTION Price: $4.50 |
| 6 | 28281-KVR-C00 | SPRING, KICK STARTER Price: $9.98 |
| 7 | 90454-107-000 | WASHER, THRUST (20MM) Price: $2.00 |
| 8 | 90456-KVR-C00 | WASHER (17MM) Price: $2.73 |
| 9 | 90604-KVR-C00 | SET-RING (20MM) Price: $3.53 |
