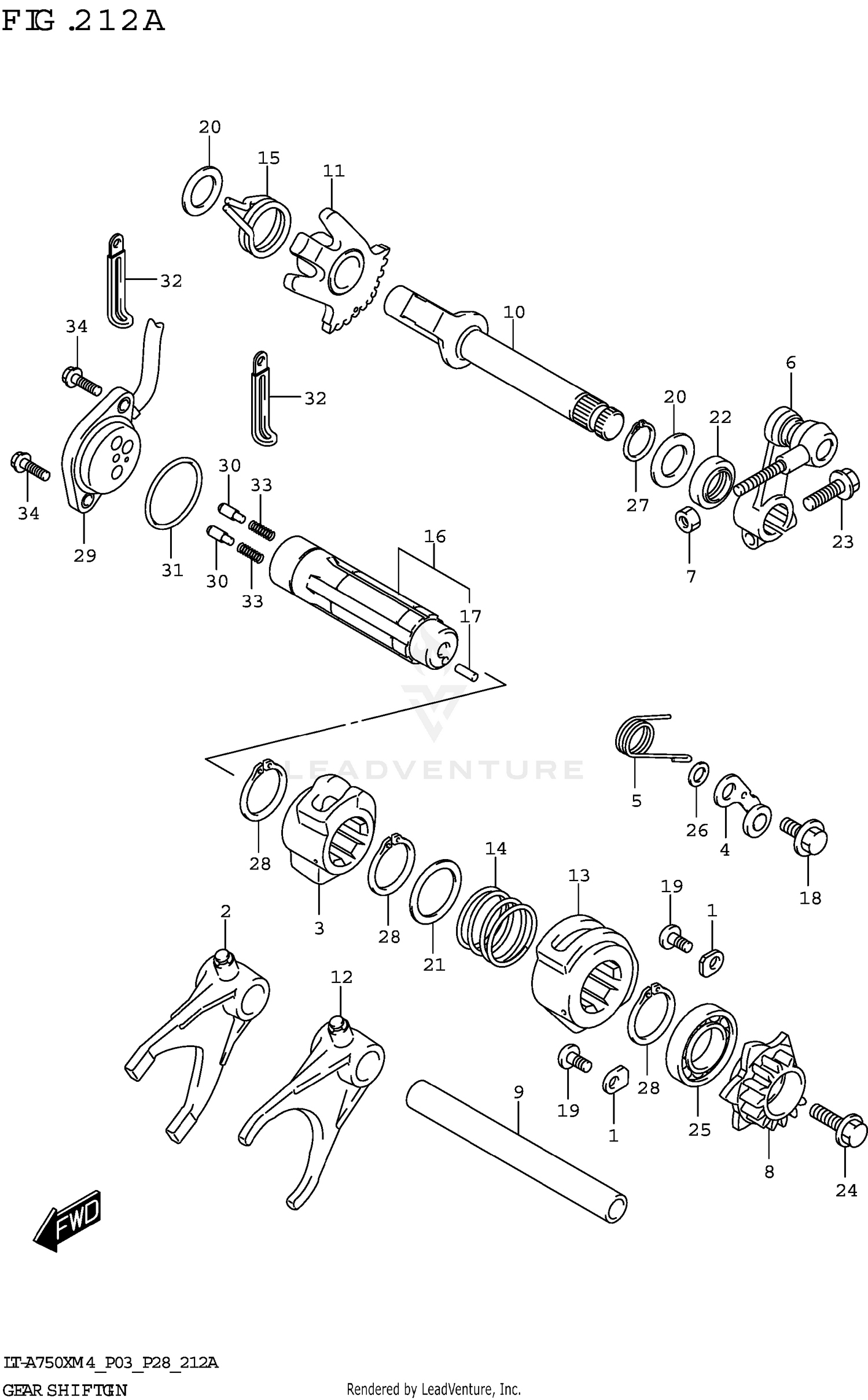

| Ref | Part Number | Description |
|---|
| 1 |
24741-21A00 |
RETAINER Price: $3.38 |
| 2 |
25240-31G10 |
FORK,GEAR SHIFT REVERSE Price: $91.24 |
| 3 |
25321-31G00 |
CAM,REVERSE GEAR SHIFT Price: $88.33 |
| 4 |
25350-31G00 |
STOPPER,SHIFT CAM Price: $10.55 |
| 5 |
25355-35F01 |
SPRING, SHIFT Price: $5.04 |
| 6 |
25360-31G10 |
ARM,SELECT Price: $86.43 |
| 7 |
08310-0006A |
NUT Price: $2.22 |
| 9 |
25411-38A00 |
SHAFT,GEAR SHIFT FORK (L:115) Price: $31.60 |
| 10 |
25510-31G01 |
SHAFT,SUB T/M SHIFT NO.2 Price: $97.35 |
| 11 |
25540-31G00 |
GEAR,SUB T/M SHIFT (NT:32) Price: $22.29 |
| 12 |
29510-31G10 |
FORK,SUB T/M GEAR SHIFT Price: $97.52 |
| 13 |
29611-31G00 |
CAM,SUB T/M GEAR SHIFT Price: $82.75 |
| 14 |
29612-31G00 |
SPRING,SUB T/M SHIFT FORK Price: $3.55 |
| 15 |
29613-31G00 |
SPRING,SHIFT ARM RETURN Price: $7.62 |
| 16 |
29620-34K00 |
SHAFT,SUB T/M GEAR SHIFT Price: $86.45 |
| 18 |
09111-06041 |
BOLT (6X14.3) Price: $3.08 |
| 19 |
09125-06122 |
SCREW (6X12) Price: $2.58 |
| 20 |
09181-14195 |
SHIM (14X24X1) Price: $3.20 |
| 21 |
09181-25139 |
SHIM (25X32X1) Price: $3.49 |
| 22 |
09283-14006 |
SEAL, SHIFT SHAFT (14X22X6) This part replaces 09283-14005. Price: $8.16 |
| 23 |
01550-0620A |
BOLT (6X20) Price: $2.37 |
| 24 |
01550-0620A |
BOLT (6X20) Price: $2.37 |
| 25 |
08110-69040 |
BEARING Price: $43.18 |
| 26 |
08211-06121 |
WASHER Price: $1.89 |
| 27 |
08331-3114A |
CIRCLIP Price: $2.30 |
| 28 |
08331-31259 |
CIRCLIP Price: $2.62 |
| 29 |
37720-31G00 |
BASE ASSY,GEAR SHIFT TERM Price: $121.37 |
| 30 |
09209-05011 |
PIN (5X15.5) Price: $2.30 |
| 31 |
09280-35006 |
O-RING (D:2.4,ID:35.5) Price: $3.70 |
| 32 |
09404-06429 |
CLAMP (L:45) Price: $2.20 |
| 33 |
09440-04010 |
SPRING Price: $1.73 |
