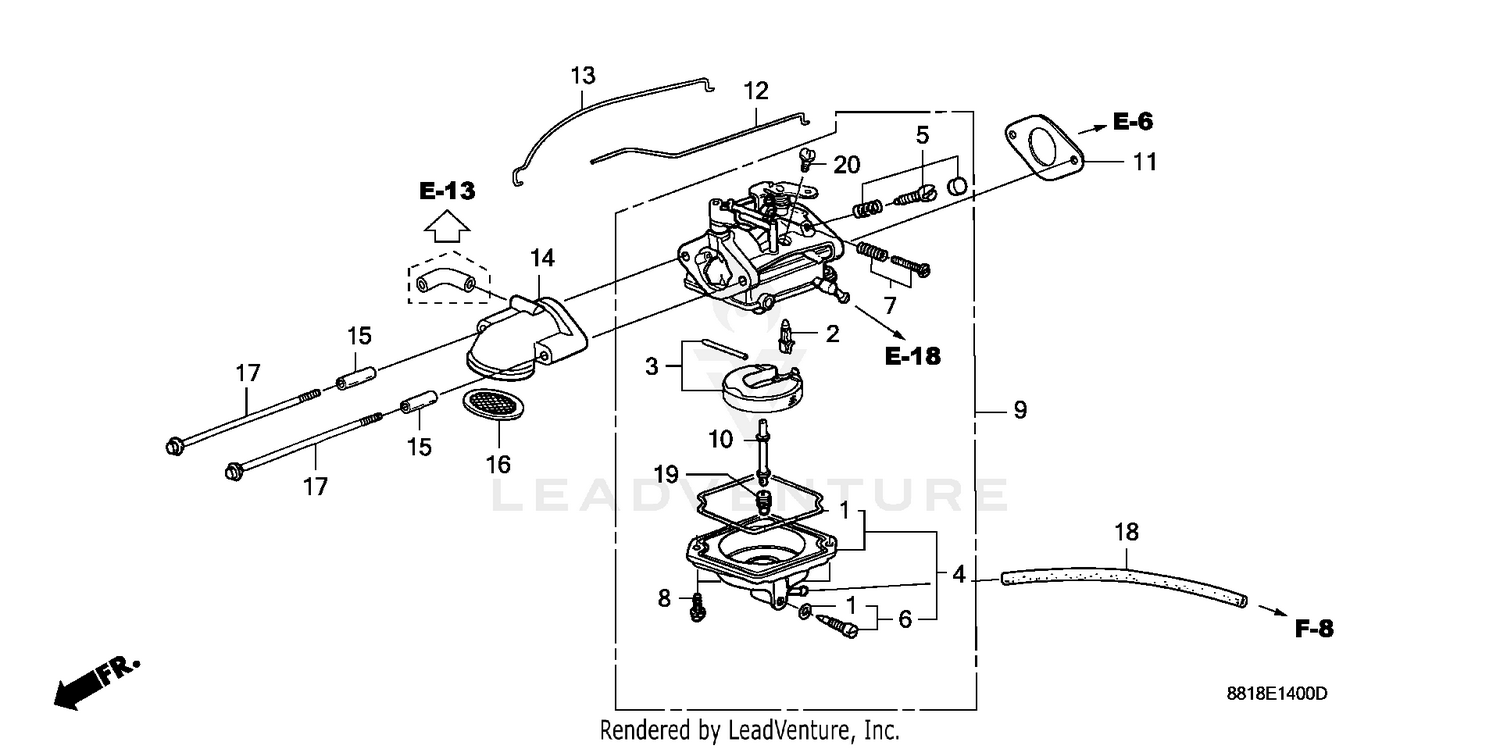

| Ref | Part Number | Description |
|---|
| 1 |
16010-881-A00 |
GASKET SET Price: $16.80 |
| 2 |
16011-881-741 |
SEE PART DETAILS - PRI; VALVE SET, FLOAT Price: $33.12 |
| 3 |
16013-881-003 |
SEE PART DETAILS - PRI; FLOAT SET Price: $20.98 |
| 4 |
16015-881-A00 |
CHAMBER SET, FLOAT Price: $58.44 |
| 5 |
16016-881-E21 |
SCREW SET (NOT AVAILABLE) Price: $7.94 |
| 6 |
16024-ZY3-000 |
SEE PART DETAILS - PRI; SCREW SET, DRAIN (CARBURETOR NO.) Price: $16.68 |
| 7 |
16028-ZV4-650 |
SEE PART DETAILS - PRI; SCREW SET Price: $13.48 |
| 8 |
16081-ZV1-A00 |
SCREW, PAN Price: $2.38 |
| 9 |
16100-881-E21 |
CARBURETOR ASSY. (BCO1G A) Price: Call Us |
| 10 |
16166-881-A00 |
NOZZLE, MAIN Price: $7.88 |
| 11 |
16201-881-850 |
SEE PART DETAILS - PRI; GASKET, CARBURETOR Price: $3.56 |
| 12 |
16593-881-010 |
ROD, THROTTLE Price: $3.82 |
| 13 |
16622-881-000 |
ROD, CHOKE Price: $7.22 |
| 14 |
17201-881-C40 |
SEE PART DETAILS - SUP; GUIDE, AIR Price: Call Us |
| 15 |
17202-921-000 |
COLLAR, DISTANCE Price: $4.32 |
| 16 |
17203-881-000 |
TRAP, FLAME Price: $6.38 |
| 17 |
90012-882-010 |
BOLT, FLANGE (6X97) Price: $5.30 |
| 18 |
95003-05008-60M |
BULK HOSE, VINYL (3.5X6.5X8000) (9500(95003-05001-60M) (CARBURETOR NO.) Price: $28.12 |
| 19 |
99101-ZH8-0880 |
SEE PART DETAILS - PRI; JET, MAIN (#88) Use up to Engine SN BE81B B. Price: $8.10 |
