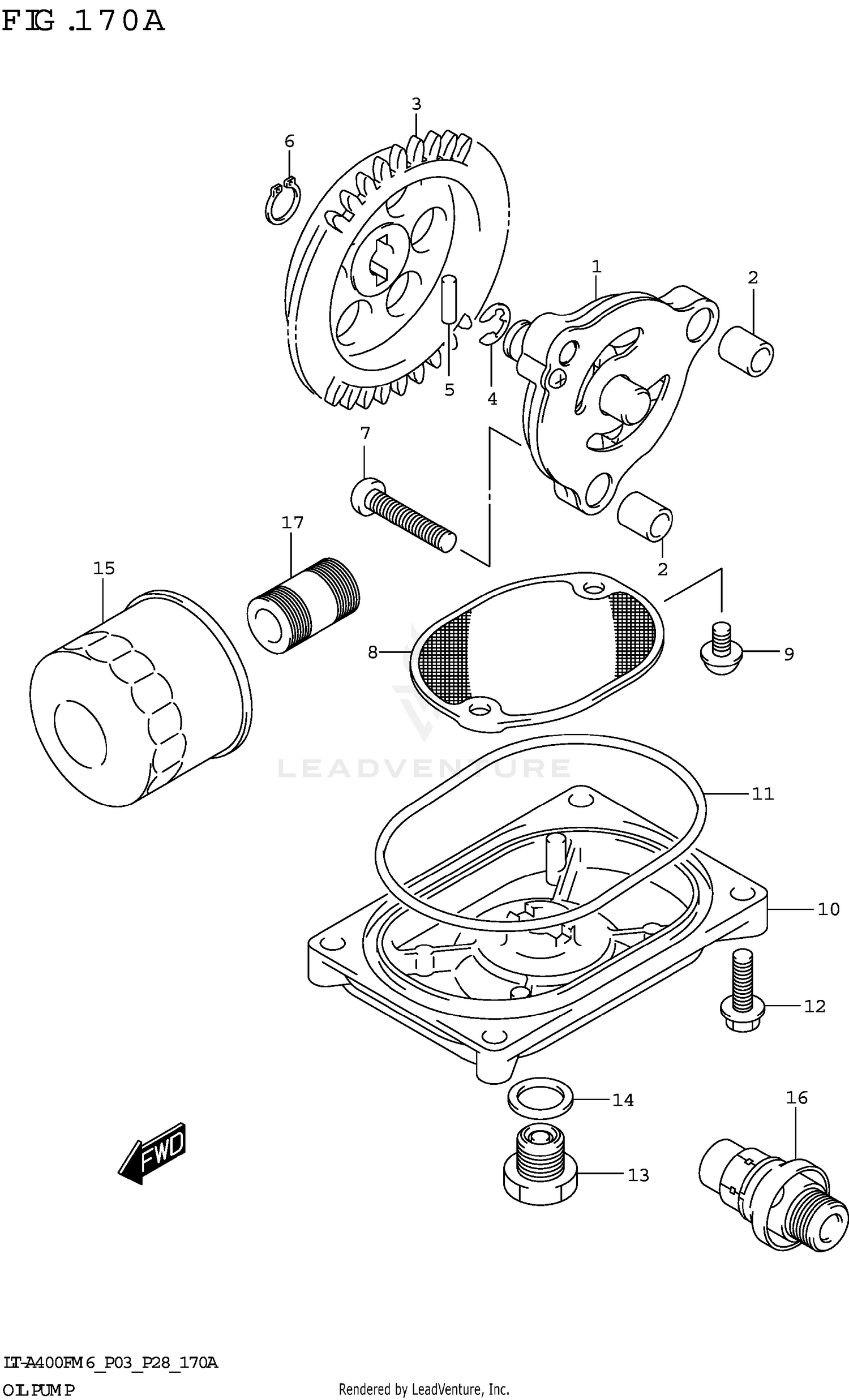

OIL PUMP
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 16400-27H00 | PUMP ASSY,ENGINE OIL Price: $177.90 |
| 2 | 04211-09109 | PIN Price: $1.99 |
| 3 | 16331-14D02 | GEAR,OIL PUMP DRIVEN (NT:35) Price: $61.46 |
| 4 | 09181-10158 | SHIM (10X18X0.5) Price: $2.37 |
| 5 | 09261-04009 | PIN (4X15.8) Price: $1.75 |
| 6 | 08331-31109 | CIRCLIP Price: $2.15 |
| 7 | 02112-0625A | SCREW Price: $2.16 |
| 8 | 16520-27H00 | STRAINER,ENGINE OIL Price: $11.53 |
| 9 | 02112-7512A | SCREW Price: $2.95 |
| 10 | 16523-24501 | CAP,OIL STRAINER Price: $33.24 |
| 12 | 01547-0625A | BOLT Price: $2.45 |
| 15 | 16510-07J10 | FILTER ASSY, ENGINE OIL This part replaces 16510-07J00. Price: $16.18 |
| 16 | 16440-27A01 | VALVE ASSY,OIL RELIEF (6K) Price: $71.72 |
