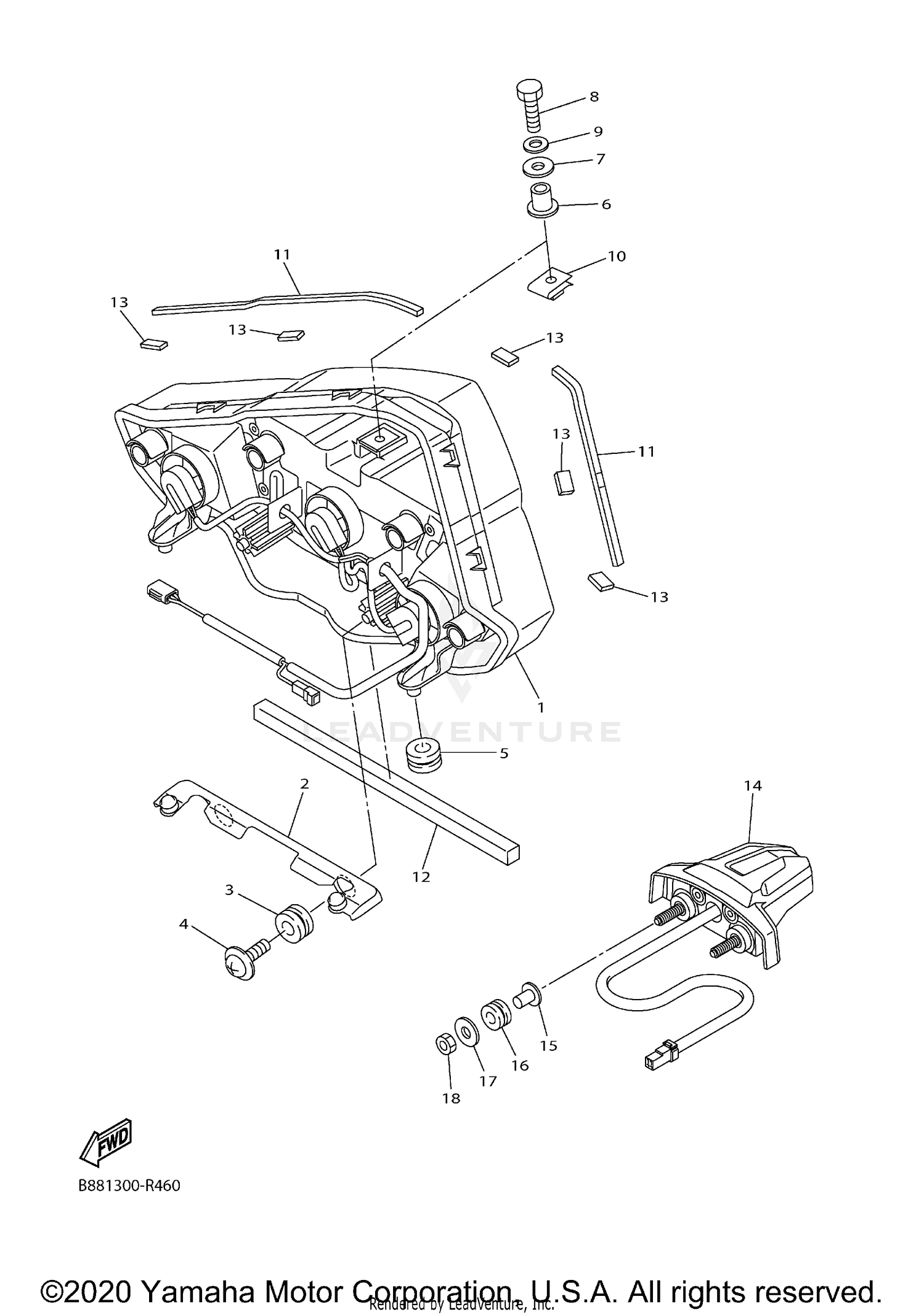

TAILLIGHT
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 1 | B88-84710-00-00 | TAILLIGHT UNIT ASSY Price: $788.99 |
| 2 | 3P6-2117E-00-00 | BRACKET, TAILLIGHT Price: $43.99 |
| 3 | 90480-18276-00 | GROMMET Price: $9.49 |
| 4 | 90164-05001-00 | SCREW, TAPPING Price: $9.49 |
| 5 | 4XV-83513-00-00 | DAMPER Price: $8.49 |
| 6 | 90387-07391-00 | COLLAR Price: $10.49 |
| 7 | 90201-06013-00 | WASHER, PLATE This part replaces 90201-06035-00. Price: $5.49 |
| 8 | 97017-06025-00 | BOLT This part replaces 97012-06025-00. Price: $4.55 |
| 9 | 92990-06600-00 | WASHER, PLATE This part replaces 92902-06600-00. Price: $2.85 |
| 10 | 90183-060A7-00 | NUT, SPRING Price: $9.49 |
| 11 | 90520-05013-00 | DAMPER, PLATE Price: $10.49 |
| 12 | 2D1-24737-00-00 | DAMPER, SEAT Price: $4.35 |
| 13 | 2C0-2847N-00-00 | DAMPER 8 Price: $7.49 |
| 14 | B88-84745-00-00 | LICENSE LIGHT UNIT ASSY Price: $254.99 |
| 15 | 90387-05003-00 | COLLAR Price: $6.49 |
| 16 | 90480-11008-00 | GROMMET Price: $6.49 |
| 17 | 90201-05043-00 | WASHER, PLATE Price: $8.49 |
