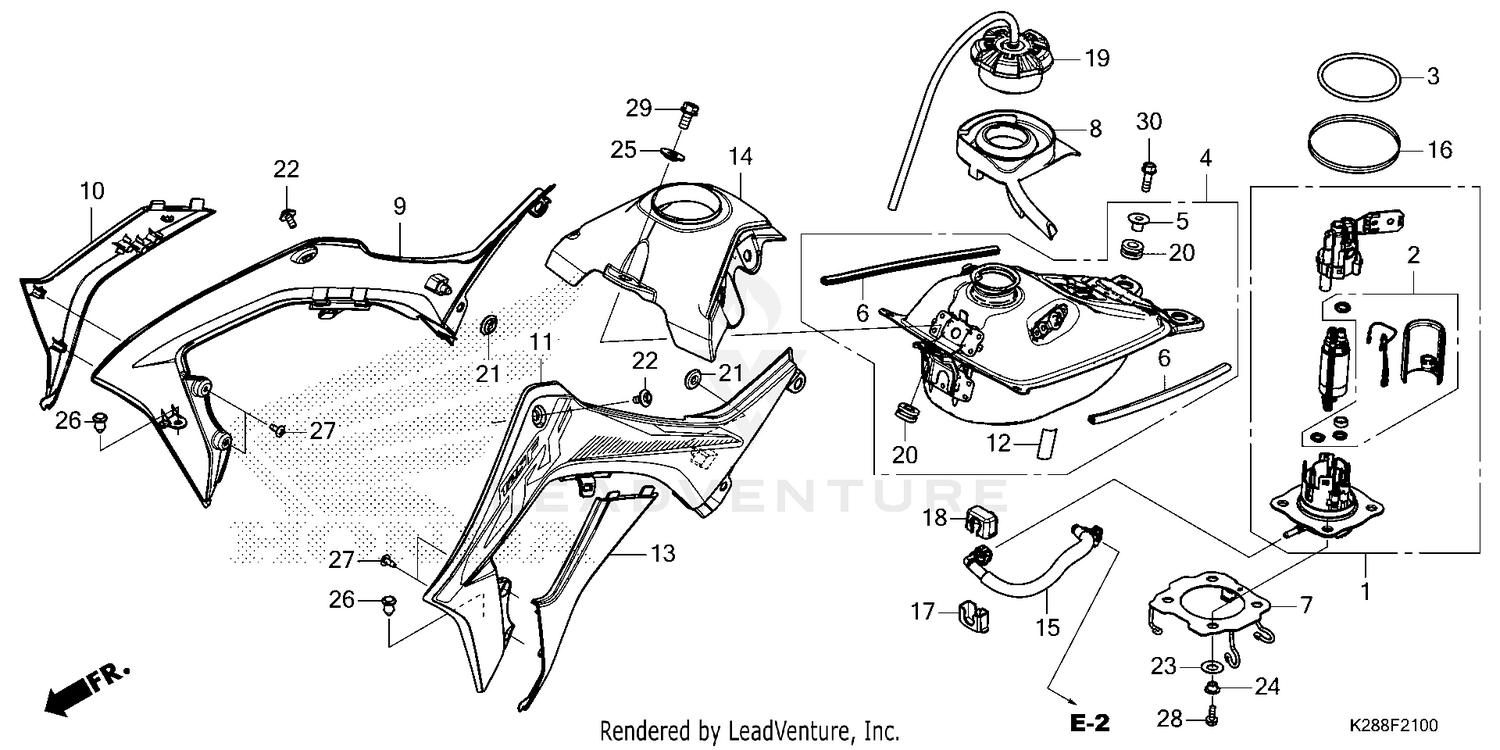

| Ref | Part Number | Description |
|---|
| 1 |
16700-K28-A61 |
PUMP UNIT ASSY., FUEL (MSDS) Price: $585.96 |
| 2 |
16707-K45-N01 |
FILTER SET Price: $28.49 |
| 3 |
16711-K99-A01 |
O-RING (3.7X62.9) Price: $41.25 |
| 4 |
17500-K28-A60 |
TANK ASSY., FUEL Price: $792.09 |
| 5 |
17509-KYK-910 |
COLLAR, TANK MOUNT Price: $6.81 |
| 6 |
17515-MJE-D00 |
TRIM, FUEL TANK Price: $15.95 |
| 7 |
17527-K28-A60 |
PLATE, SETTING Price: $20.87 |
| 8 |
17530-K28-A60 |
TRAY, FUEL Price: $22.45 |
| 9 |
17540-K28-AE0ZA |
SHROUD SET A, R. TANK (TYPE1) (WL) Price: $126.71 |
| 10 |
17546-K28-A60 |
SHROUD B, R. Price: $14.91 |
| 11 |
17550-K28-AE0ZA |
SHROUD SET A, L. TANK (TYPE1) (WL) Price: $126.67 |
| 12 |
17556-K28-910 |
FILM, PROTECTOR Price: $5.33 |
| 13 |
17556-K28-A60 |
SHROUD B, L. Price: $14.91 |
| 14 |
17560-K28-A60 |
COVER, CENTER TANK Price: $29.84 |
| 15 |
17571-K28-A61 |
HOSE, FUEL FEED Price: $56.20 |
| 16 |
17574-K99-A01 |
DUST SEAL Price: $6.84 |
| 17 |
17575-K99-A00 |
COVER, FUEL CONNECTOR Price: $2.78 |
| 18 |
17576-KRN-A90 |
RUBBER, FUEL CONNECTOR Price: $7.40 |
| 19 |
17620-K28-M22 |
CAP COMP This part replaces 17620-K28-M21. Price: $104.11 |
| 20 |
50329-KYA-B00 |
RUBBER, RR. CARRIER MOUNTING Price: $4.07 |
| 21 |
83551-376-000 |
GROMMET, SIDE COVER Price: $3.62 |
| 22 |
90126-K99-A00 |
BOLT, SPECIAL (6MM) Price: $1.93 |
| 23 |
90502-MEN-A30 |
WASHER, CONICAL SPRING FUEL PUMP Price: $3.04 |
| 24 |
90503-K99-A00 |
COLLAR, FUEL PUMP Price: $3.87 |
| 25 |
90504-K28-A60 |
COLLAR, FR. TANK Price: $4.24 |
| 26 |
90653-HC4-900 |
CLIP, SPLASH GUARD (Honda Code 3795994) Price: $0.67 |
| 27 |
93913-24120 |
SCREW, TAPPING (4X10) Price: $0.95 |
| 28 |
95701-06016-00 |
BOLT, FLANGE (6X16) (Honda Code 2410892) Price: $1.70 |
| 29 |
95701-08016-00 |
BOLT, FLANGE (8X16) Price: $1.88 |
