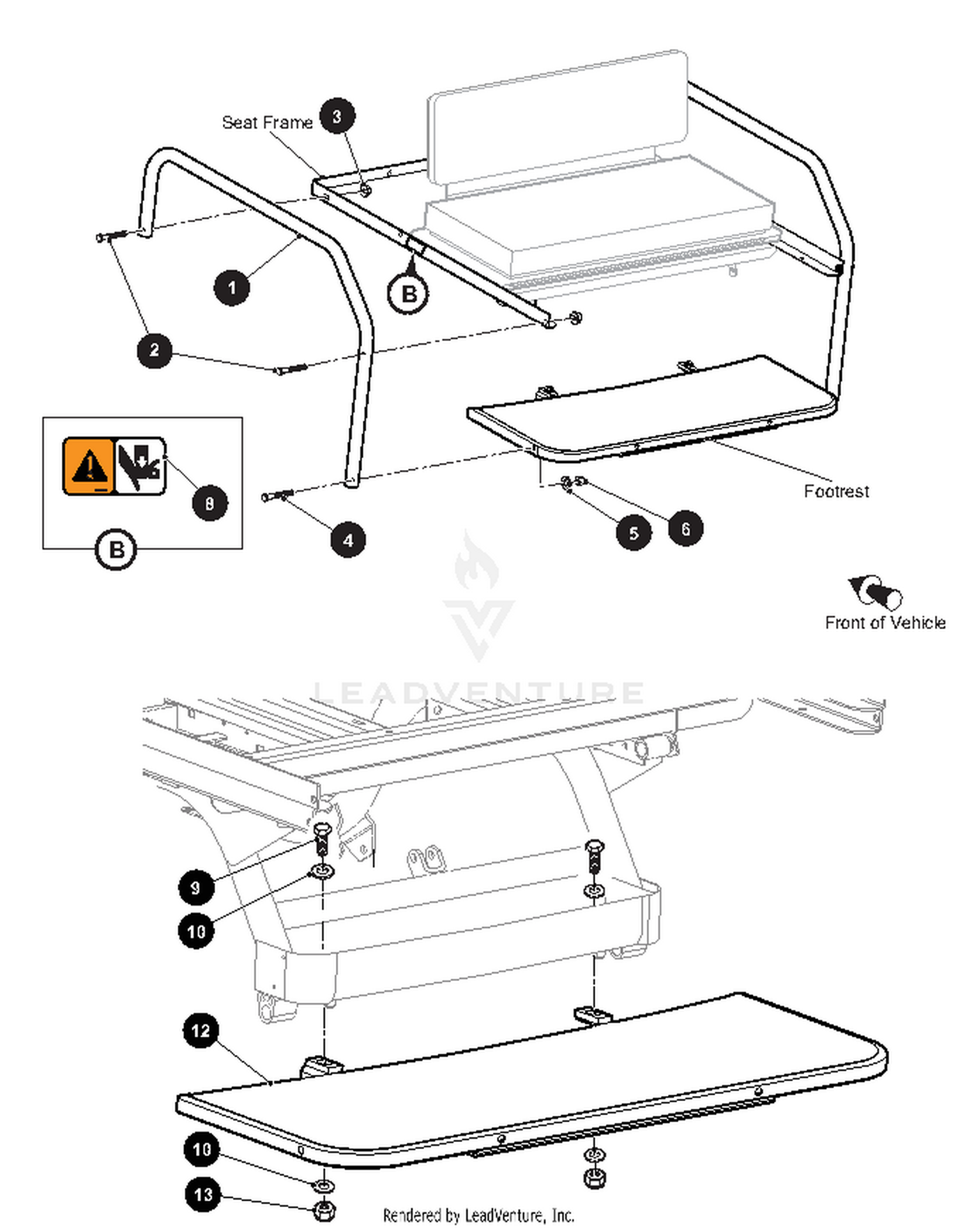

SEATING - 4
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 627783 | FLIP SEAT ARM REST Price: $181.99 |
| 2 | 00427G8 | HEX HEAD BOLT, 3/8"-16 X 2 Price: $5.99 |
| 3 | N/S | NON-SERVICEABLE PART Price: Call Us |
| 4 | 00665G9 | HEX HEAD BOLT, 3/8-16 X 3 1/2 Price: $7.99 |
| 5 | 00560G1 | FLAT WASHER, 3/8" Price: $0.99 |
| 6 | 11098G5 | LOCK NUT, 3/8"-16 Price: $0.99 |
| 8 | 629290 | PINCH WARNING DECAL Not Available Price: |
| 9 | 00463G4 | HEX HEAD BOLT, 7/16"-14 X 1 1/2 Price: $5.99 |
| 10 | 00560G2 | FLAT WASHER, 7/16 Price: $1.99 |
| 12 | 628552 | FOOTREST WELDMENT Price: $468.54 |
