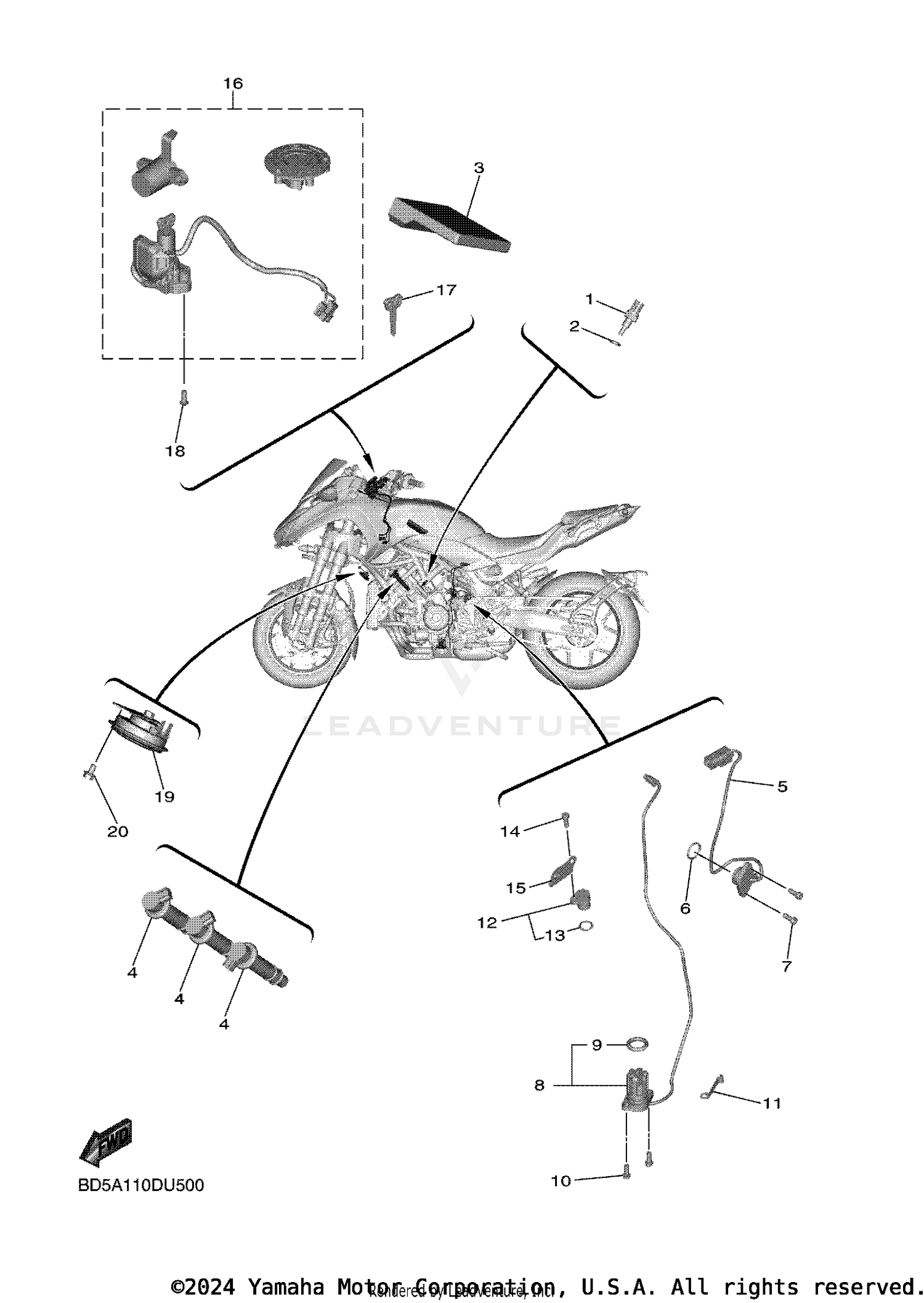

ELECTRICAL 2
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 90430-10004-00 | GASKET Price: $7.49 |
| 2 | 52B-H3591-00-00 | THERMO UNIT This part replaces 4P9-83591-00-00. Price: $37.99 |
| 3 | BD5-8591A-10-00 | ENGINE CONTROL UNIT Price: $1,510.99 |
| 4 | 39P-82310-10-00 | IGNITION COIL ASSY Price: $186.99 |
| 5 | BD5-82540-00-00 | NEUTRAL SWITCH ASSY Price: $74.99 |
| 6 | 93210-21001-00 | O-RING Price: $6.49 |
| 7 | 90110-05038-00 | BOLT, HEXAGON SOCKET HEAD This part replaces 90110-05067-00. Price: $8.49 |
| 8 | 5S7-85720-00-00 | OIL LEVEL GAUGE ASSY Price: $120.99 |
| 9 | 5VY-8A8E0-00-00 | O-RING Price: $15.49 |
| 10 | 95022-06016-00 | BOLT, FLANGE Price: $3.90 |
| 11 | 90465-08053-00 | CLAMP Price: $6.49 |
| 12 | 3P6-15399-00-00 | PLUG, BLIND Price: $20.99 |
| 13 | 93210-15566-00 | O-RING Price: $8.49 |
| 14 | 91317-06016-00 | BOLT (4MY) This part replaces 90110-06161-00. Price: $1.25 |
| 15 | BD5-15113-00-00 | PLATE Price: $6.49 |
| 16 | BD5-Y825C-01-00 | MAIN SWITCH SET Price: $750.99 |
| 18 | 90109-08196-00 | BOLT This part replaces 90109-08195-00. Price: $9.49 |
| 19 | BD5-83371-00-00 | HORN Price: $50.99 |
