Parts Catalog

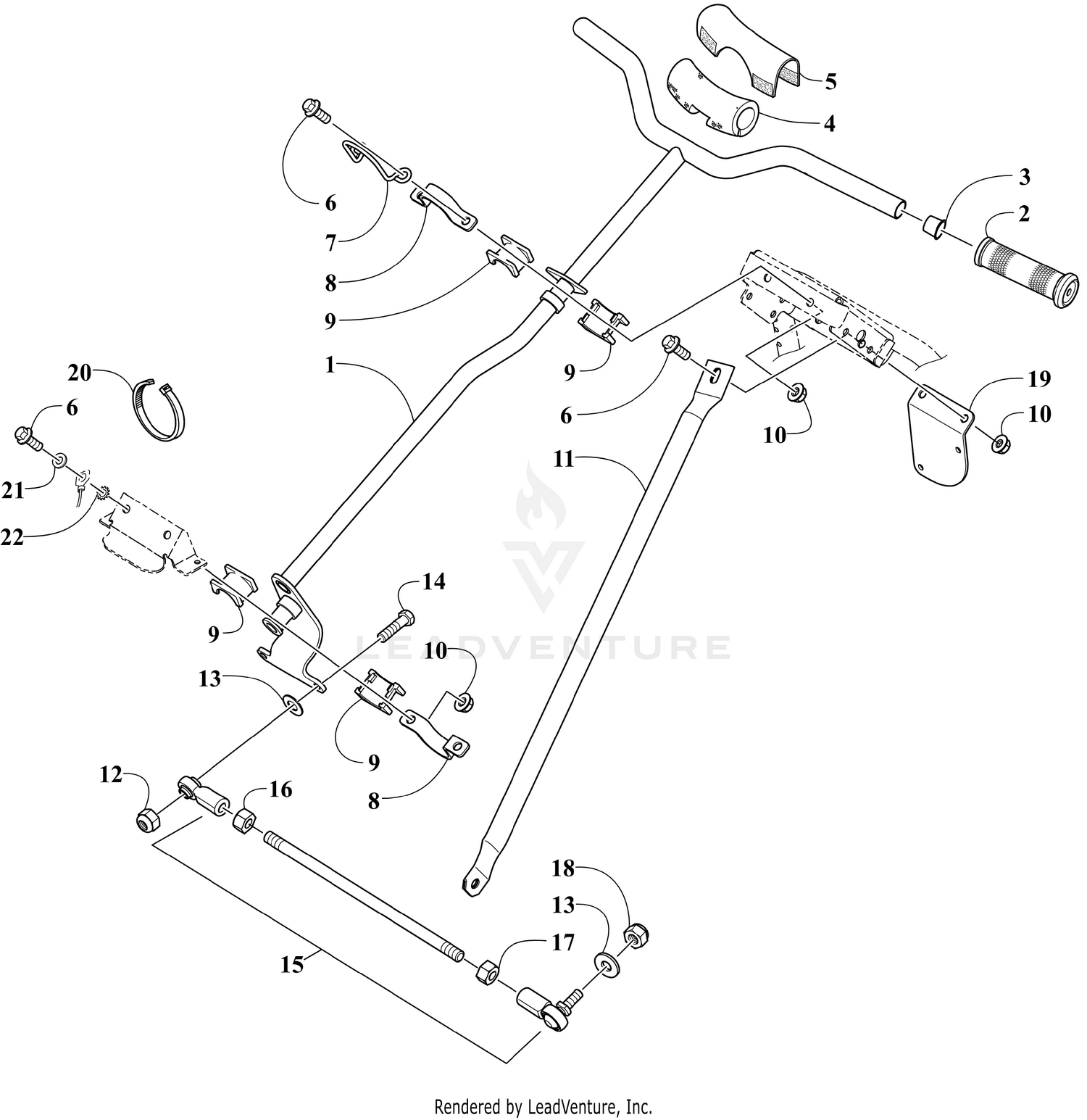

STEERING POST AND TIE ROD ASSEMBLY [106071]

Parts (21)

Ref	Part Number	Description
1	1705-552	Post, Steering - Black Price: $92.95
2	1605-174	Grip, Handle Price: $16.61
3	2623-200	Plug Price: $0.35
4	1605-107	Pad, Handlebar Price: $19.00
5	1705-444	Cover, Handlebar Pad Price: $41.95
6	8020-041	Screw, Cap Price: $8.27
7	0645-826	Guide, Harness Price: $11.85
8	0705-896	Bracket, Steering Support - Black Price: $19.00
9	0605-444	Bearing, Steering Post Price: $5.35
10	8047-366	Nut, Lock Price: $0.46
11	6706-436	Support, Steering - Black - Right Price: $38.95
11	6706-437	Support, Steering - Black - Left Price: $38.95
12	8047-426	Nut, Hex Price: $0.70
13	8050-247	Washer Price: $0.70
14	8020-134	Screw, Cap Price: $1.66
16	0623-260	Nut, Hex - Left-Hand Thread Price: $0.29
17	0123-144	Nut, Hex - Right-Hand Thread Price: $0.09
18	1623-423	Nut, Lock Price: $4.60
19	2670-612	Bracket, Fuel Pump Price: $5.44
20	0123-788	Tie, Cable - 8 in Price: $0.23
21	8050-212	Washer Price: $0.82
