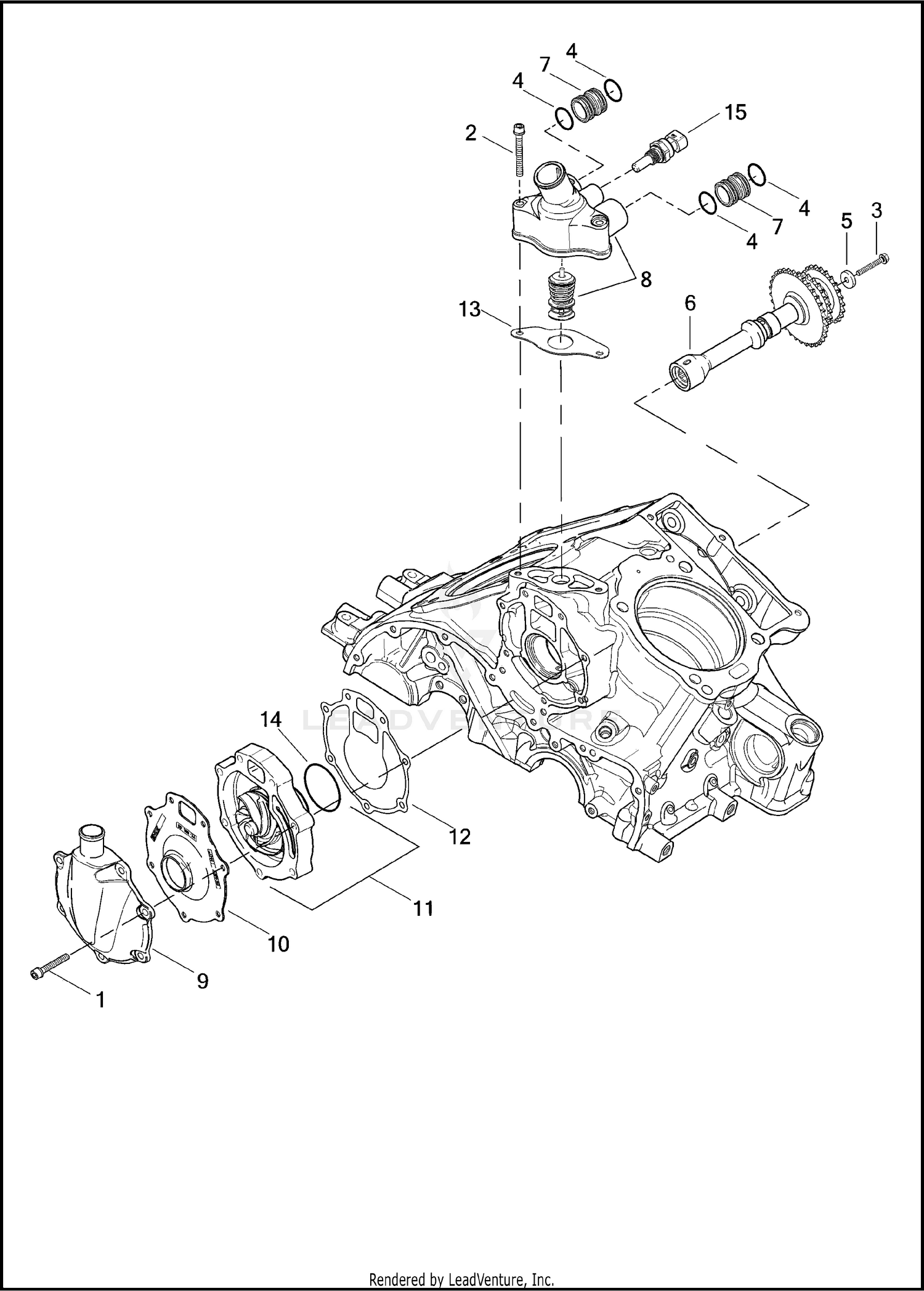

| Ref | Part Number | Description |
|---|
| 1 |
978M |
SCREW M6 X 1.0 X 40 SOCKET HD. Price: $1.22 |
| 2 |
1030M |
SCREW M6 X 1.0 X 50 SOCKET HD. Price: $1.22 |
| 3 |
1023M |
SCREW M8 X 1.25 X 55 HEX FLANGE HD. Price: $9.33 |
| 4 |
11312K |
O-RING Price: $2.45 |
| 5 |
25911-01K |
WASHER 8.2 X 28 X 5.0 Not Available Price: |
| 6 |
26582-01KA |
SHAFT INTERMEDIATE Price: $96.84 |
| 7 |
26737-01K |
TUBE THERMOSTAT Price: $13.91 |
| 8 |
26769-04K |
THERMOSTAT ASSEMBLY (BLACK) Not Available Price: |
| 9 |
26821-07KA |
COVER WATER PUMP (GLOSS BLACK) Price: $353.07 |
| 10 |
26749-01K |
GASKET OUTER WATER PUMP Price: $12.45 |
| 11 |
26759-04KA |
HOUSING WATER PUMP ASSEMBLY, W/ 11900003 (BLACK) Price: $362.88 |
| 12 |
26752-01K |
GASKET WATER PUMP Price: $5.11 |
| 13 |
26765-01K |
GASKET THERMOSTAT Price: $3.98 |
| 14 |
11900003 |
O-RING Price: $8.82 |
