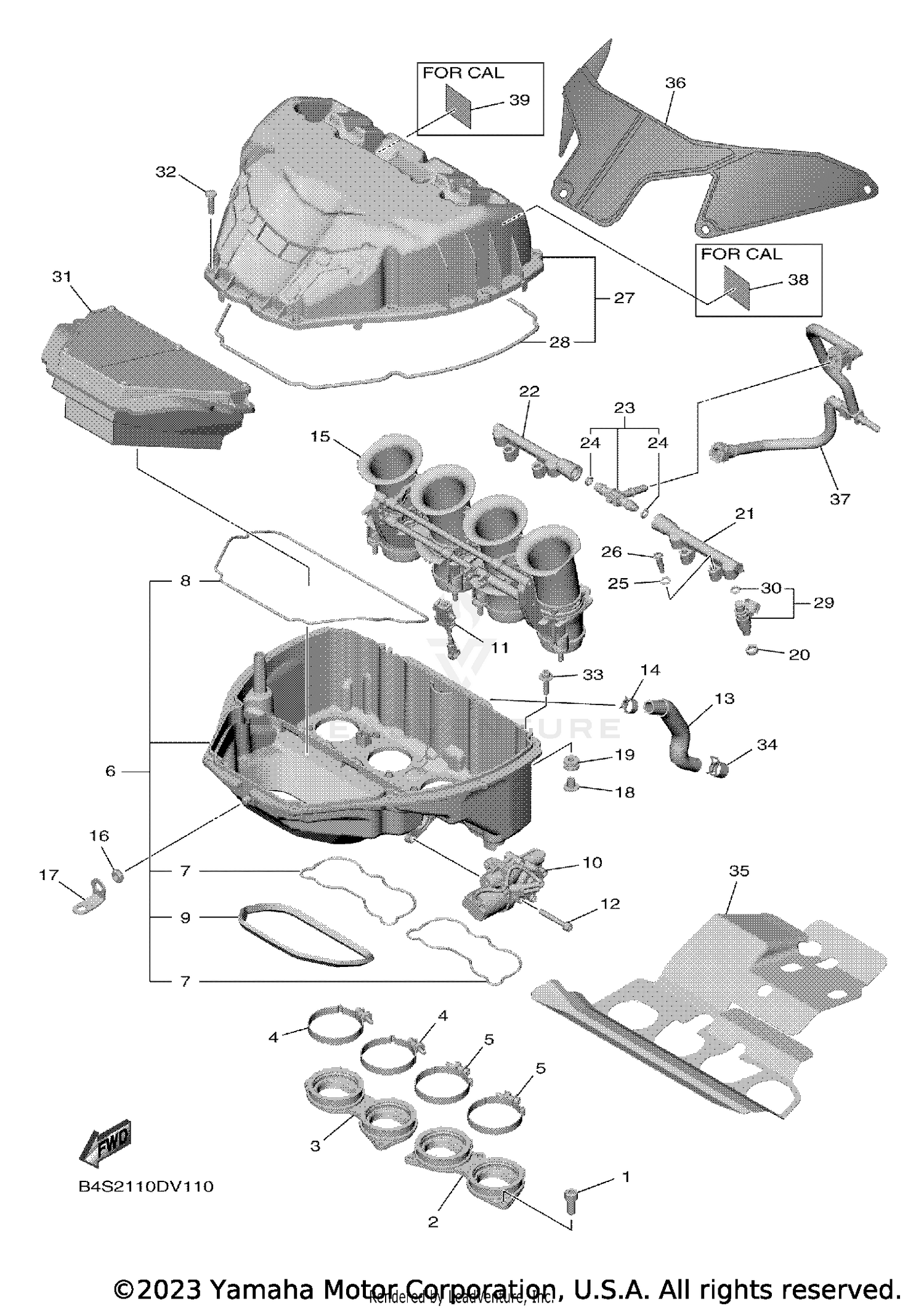

| Ref | Part Number | Description |
|---|
| 1 |
91312-06014-00 |
BOLT This part replaces 90110-06168-00. Price: $5.49 |
| 2 |
B3L-13635-00-00 |
JOINT, INTAKE 1 Price: $69.99 |
| 3 |
B3L-13636-00-00 |
JOINT, INTAKE 2 Price: $69.99 |
| 4 |
90450-60004-00 |
HOSE CLAMP ASSY Price: $18.49 |
| 5 |
90450-60004-00 |
HOSE CLAMP ASSY Price: $18.49 |
| 6 |
B3L-14411-00-00 |
CASE, AIR CLEANER 1 Price: $120.99 |
| 7 |
2CR-14457-00-00 |
SEAL Price: $8.49 |
| 8 |
2CR-14462-00-00 |
SEAL Price: $12.99 |
| 10 |
14B-85870-01-00 |
GEARED MOTOR COMP. 2 This part replaces 14B-85870-00-00. Price: $362.99 |
| 11 |
2CR-14490-00-00 |
SHAFT ASSY Price: $39.99 |
| 12 |
90110-05045-00 |
BOLT, HEXAGON SOCKET HEAD This part replaces 90110-05047-00. Price: $2.75 |
| 13 |
B3L-15393-00-00 |
PIPE, BREATHER 2 Price: $15.49 |
| 14 |
90467-15001-00 |
CLIP Price: $8.49 |
| 15 |
B3L-1440B-01-00 |
JOINT ASSY This part replaces B3L-1440B-00-00. Price: $305.99 |
| 16 |
90480-12010-00 |
GROMMET Price: $6.49 |
| 17 |
2CR-14498-00-00 |
STAY 1 Price: $7.49 |
| 18 |
90387-06205-00 |
COLLAR Price: $8.49 |
| 19 |
90480-12X00-00 |
GROMMET This part replaces 90480-12314-00. Price: $1.25 |
| 20 |
8FP-13556-00-00 |
RUBBER, INJECTOR Price: $15.49 |
| 21 |
2CR-1393A-00-00 |
PIPE, INLET Price: $69.99 |
| 22 |
2CR-1393B-00-00 |
PIPE, INLET 2 Price: $77.99 |
| 23 |
2CR-1440F-00-00 |
JOINT, AIR FILTER 1 Price: $36.99 |
| 24 |
39P-14147-00-00 |
O-RING Price: $8.49 |
| 25 |
363-14198-00-00 |
GASKET Price: $12.49 |
| 26 |
14B-13573-00-00 |
BOLT 1 Price: $7.49 |
| 27 |
B3L-14421-11-00 |
CASE, AIR CLEANER 2 This part replaces B3L-14421-10-00. Price: $132.99 |
| 28 |
2CR-14452-00-00 |
SEAL Price: $21.99 |
| 29 |
14B-13761-10-00 |
INJECTOR Price: $239.99 |
| 30 |
5PS-14147-00-00 |
O-RING Price: $14.49 |
| 31 |
B3L-14451-02-00 |
ELEMENT, AIR CLEANER This part replaces B3L-14451-00-00. Price: $90.99 |
| 32 |
98907-05020-00 |
SCREW, BIND Price: $9.49 |
| 33 |
90110-06233-00 |
BOLT, HEXAGON SOCKET HEAD Price: $9.49 |
| 34 |
90467-160A6-00 |
CLIP Price: $3.50 |
| 35 |
B3L-12682-00-00 |
PROTECTOR, HEAT Price: $69.99 |
| 36 |
B3L-1449E-00-00 |
COVER, AIR CLEANER Price: $55.99 |
| 37 |
B3L-13974-01-00 |
PIPE, FUEL 4 Price: $90.99 |
