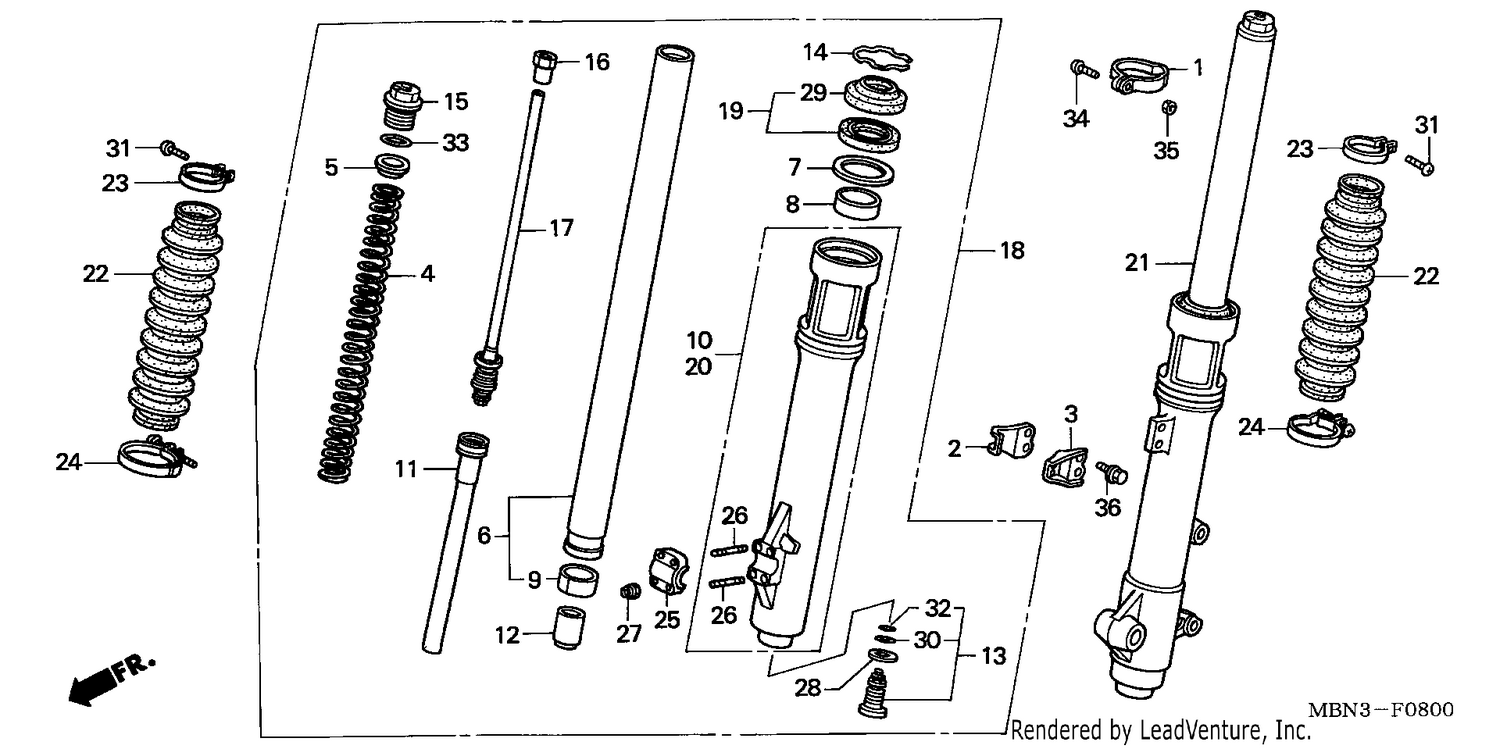

FRONT FORK

FRONT FORK

Parts (35)

RefPart NumberDescription
1 44832MBN670 CLAMPER, SPEEDOMETER CABLE Price: Call Us
2 45461MG3650 CLAMPER A, FR. BRAKE CABLE Price: Call Us
3 45462MG3650 CLAMPER B, FR. BRAKE CABLE Price: Call Us
4 51401MBN671 SPRING, FR. FORK Price: Call Us
5 51405MBN671 SEAT, SPRING Price: Call Us
6 51410MBN671 PIPE COMP., FR. FORK Price: Call Us
7 51412MAC741 RING, BACK UP Price: Call Us
8 51414KZ4J11 BUSH, GUIDE Price: Call Us
9 51415KZ4J11 BUSH, SLIDER Price: Call Us
10 51420MBN671 CASE COMP., R. BOTTOM Price: Call Us
11 51430MBN671 CYLINDER COMP. Price: Call Us
12 51432MBN671 PIECE, OIL LOCK Price: Call Us
13 51441MBN671 BOLT COMP., CENTER Price: Call Us
14 51447MAC741 RING, OIL SEAL STOP Price: Call Us
15 51450MBN671 BOLT Price: Call Us
16 51451MBN671 NUT, HEX., 17MM Price: Call Us
17 51470MBN671 ROD ASSY., PISTON Price: Call Us
18 51480MBN671 FORK SUB ASSY., R. FR. Price: Call Us
19 51490MBN671 SEAL SET, FR. FORK Price: Call Us
20 51520MBN671 CASE COMP., L. BOTTOM Price: Call Us
21 51580MBN671 FORK SUB ASSY., L. FR. Price: Call Us
22 51611MBN671 BOOT, FR. FORK Price: Call Us
23 51612MBN671 BAND, BOOT UPPER Price: Call Us
24 51613MBN672 BAND, BOOT LOWER Price: Call Us
25 51634MBN671 HOLDER, AXLE Price: Call Us
26 90136KA3831 BOLT, STUD, 6X34 Price: Call Us
27 90301473003 NUT, U, 6MM Price: Call Us
28 90544KZ4711 WASHER, SPECIAL Price: Call Us
29 91254MBN671 SEAL, DUST Price: Call Us
30 91256KZ4711 O-RING, 21.8X2.4 Price: Call Us
31 91256MBN671 SCREW, PAN, 3.5X10 Price: Call Us
32 91259KZ4711 O-RING, 19.5X1.5 Price: Call Us
33 91356MBN671 O-RING Price: Call Us
34 93500050200A SCREW, PAN, 5X20 Price: Call Us
35 94001050000S NUT, HEX., 5MM Price: Call Us
