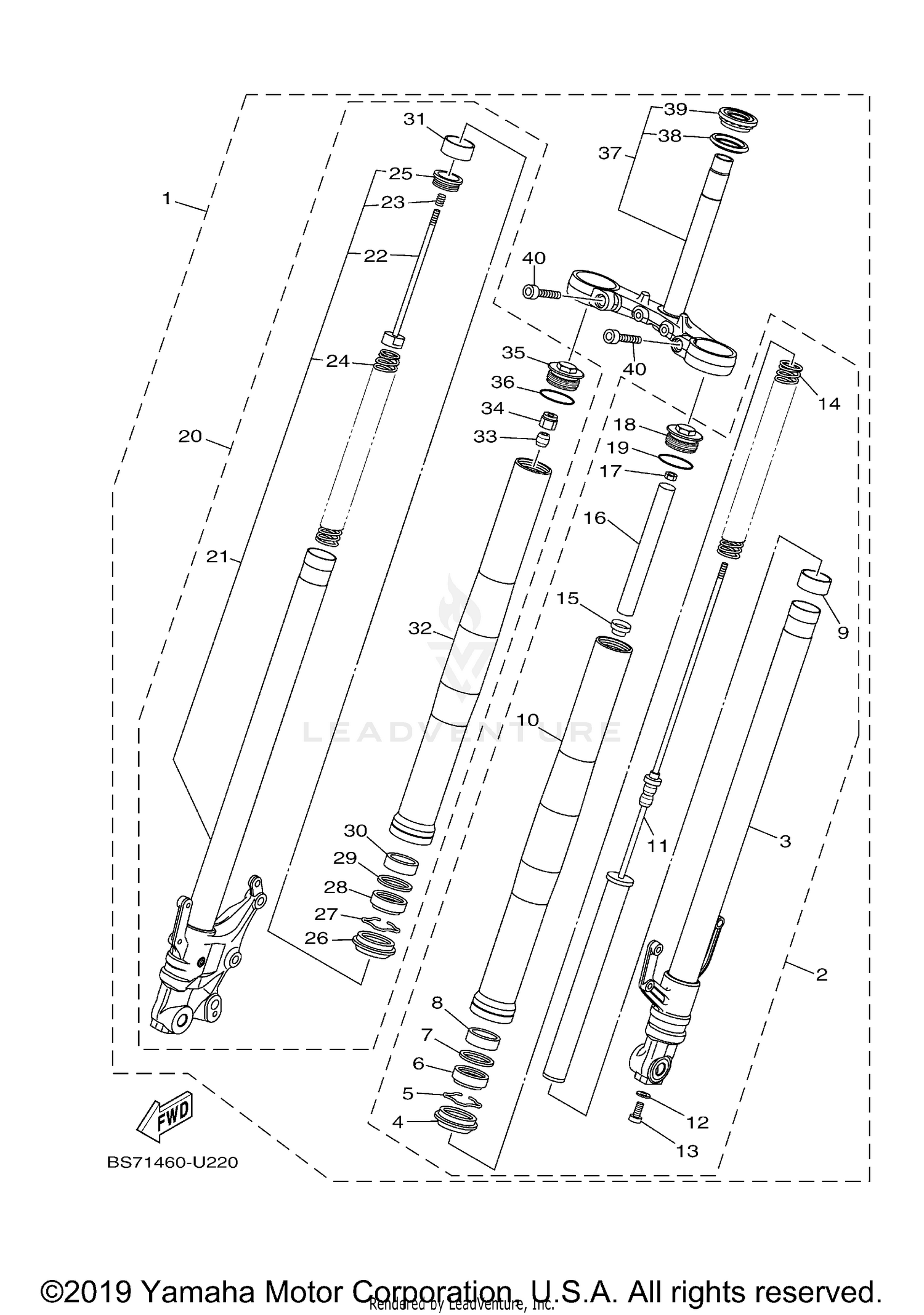

| Ref | Part Number | Description |
|---|
| 1 |
B5L-F3100-00-00 |
FRONT FORK ASSY Price: $957.99 |
| 2 |
BS7-F3102-00-00 |
FRONT FORK ASSY (L.H Price: $415.99 |
| 3 |
BS7-F3110-00-00 |
INNER TUBE COMP.1 Price: $170.99 |
| 4 |
B48-F3144-00-00 |
SEAL, DUST Price: $30.99 |
| 5 |
3R4-23153-00-00 |
RING, SNAP Price: $9.49 |
| 6 |
BK6-F3145-00-00 |
OIL SEAL (BK61) Price: $8.99 |
| 7 |
31A-23149-31-00 |
WASHER, SPRING UPPER Price: $8.49 |
| 8 |
31A-23125-31-00 |
METAL, SLIDE 1 Price: $38.99 |
| 9 |
BK6-F3171-00-00 |
PISTON, FRONT FORK ( Price: $11.49 |
| 10 |
BS7-F3126-10-00 |
TUBE, OUTER (L.H) Price: $187.99 |
| 12 |
2BU-F3158-00-00 |
GASKET Price: $3.65 |
| 13 |
3D8-23181-00-00 |
BOLT, HEXAGON SOCKET HEAD This part replaces 31B-F3181-00-00. Price: $9.49 |
| 14 |
BS7-F3141-00-00 |
SPRING, FRONT FORK Price: $30.99 |
| 15 |
BK6-F3117-00-00 |
GUIDE, SPRING (BK61) Price: $5.99 |
| 16 |
BS7-F3118-00-00 |
SPACER Price: $6.49 |
| 17 |
BK6-F3357-00-00 |
NUT (BK61) Price: $2.85 |
| 18 |
BS7-F3111-00-00 |
BOLT, CAP Price: $47.99 |
| 19 |
4V4-23188-L1-00 |
O-RING This part replaces 4V4-23188-L0-00. Price: $6.49 |
| 20 |
B5L-F3103-00-00 |
FRONT FORK ASSY (R.H Price: $390.99 |
| 21 |
B5L-F3120-00-00 |
INNER TUBE COMP.2 Price: $322.99 |
| 22 |
BK6-F330G-00-00 |
ROD COMP. (BK61) Price: $30.99 |
| 23 |
3AH-22222-00-00 |
SPRING, SHOCK ABSORB Price: $4.95 |
| 24 |
BS7-F3141-00-00 |
SPRING, FRONT FORK Price: $30.99 |
| 25 |
BK6-F319U-00-00 |
CAP (BK61) Price: $14.49 |
| 26 |
B48-F3144-00-00 |
SEAL, DUST Price: $30.99 |
| 27 |
3R4-23153-00-00 |
RING, SNAP Price: $9.49 |
| 28 |
BK6-F3145-00-00 |
OIL SEAL (BK61) Price: $8.99 |
| 29 |
31A-23149-31-00 |
WASHER, SPRING UPPER Price: $8.49 |
| 30 |
31A-23125-31-00 |
METAL, SLIDE 1 Price: $38.99 |
| 31 |
BK6-F3171-00-00 |
PISTON, FRONT FORK ( Price: $11.49 |
| 32 |
BS7-F3126-10-00 |
TUBE, OUTER (L.H) Price: $187.99 |
| 33 |
BK6-F332K-00-00 |
BUMP, STOP (BK61) Price: $8.49 |
| 34 |
BK6-F3393-00-00 |
NUT, SPECIAL (BK61) Price: $8.49 |
| 35 |
BS7-F3111-00-00 |
BOLT, CAP Price: $47.99 |
| 36 |
4V4-23188-L1-00 |
O-RING This part replaces 4V4-23188-L0-00. Price: $6.49 |
| 37 |
BS7-F3340-00-00 |
UNDER BRACKET COMP. Price: $180.99 |
| 38 |
3FV-23462-00-00 |
SEAL, STEERING Price: $26.99 |
| 39 |
93399-99932-00 |
BEARING Price: $69.99 |
