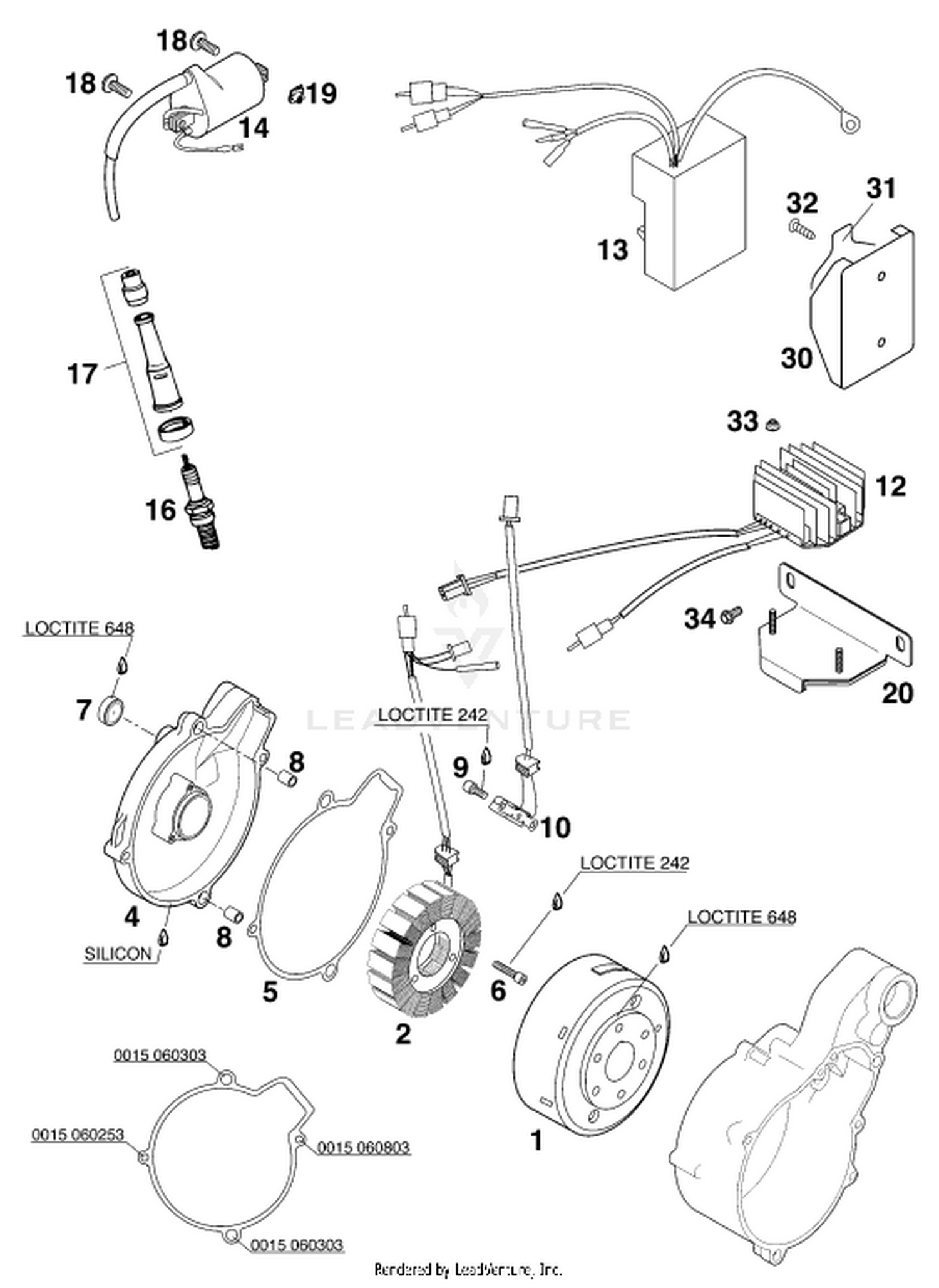

| Ref | Part Number | Description |
|---|
| 1 |
58439005100 |
FLYWHEEL KOKUSAN GP9128 '97 Price: Call Us |
| 2 |
58439004000 |
STATOR KOKUSAN LOOSE '96 Price: Call Us |
| 4 |
5843000214423 |
IGNITION COVER CPL. GREY 03 This part replaces 5843000214429. Price: Call Us |
| 5 |
58430040000 |
IGNITION COVER GASKET '96 Price: Call Us |
| 6 |
0912050253 |
AH SCREW DIN0912-M 5X25 Price: Call Us |
| 7 |
58430095100 |
INSPECT.GLASS GW 20-7 MINERAL This part replaces 58430095000. Price: Call Us |
| 8 |
49030090100 |
DOWEL 9,8 X7X10 This part replaces 49030090000. Price: Call Us |
| 9 |
0912050083 |
SHCS DIN 912 M5x8 Price: Call Us |
| 10 |
58439034000 |
PULSER COIL Price: Call Us |
| 12 |
58411034100 |
VOLT.REGULATOR-RECTIFIER 12V Price: Call Us |
| 13 |
58439031000 |
DIGITAL BOX CDI CB7418 ' Not Available Price: |
| 13 |
58439031100 |
DIGITALBOX CDI CB7428 '97 Not Available Price: |
| 14 |
58439006000 |
Ignition coil Price: Call Us |
| 16 |
58439093009 |
SPARK PLUG NGK DPR8EA-9 This part replaces 58439093008. Price: Call Us |
| 17 |
58031010000 |
Spark plug connector Price: Call Us |
| 18 |
0024060156 |
HH collar screw M6x15 TX30 This part replaces 0014060153. Price: Call Us |
| 20 |
58411055100 |
BATTERY BRACKET LC4-E/DUKE'97 Not Available Price: |
| 30 |
58439030100 |
RUBBER BRACKET FOR CDI '97 Not Available Price: |
| 31 |
58439030150 |
SUPPORT FOR RUBBER BRACKET '97 Price: Call Us |
| 32 |
0017050181 |
SCREW FOR PLASTIC D=5X18 This part replaces 0016055163. Price: Call Us |
| 33 |
56509064100 |
Self locking nut M6 - 10 This part replaces 56509064000. Price: Call Us |
