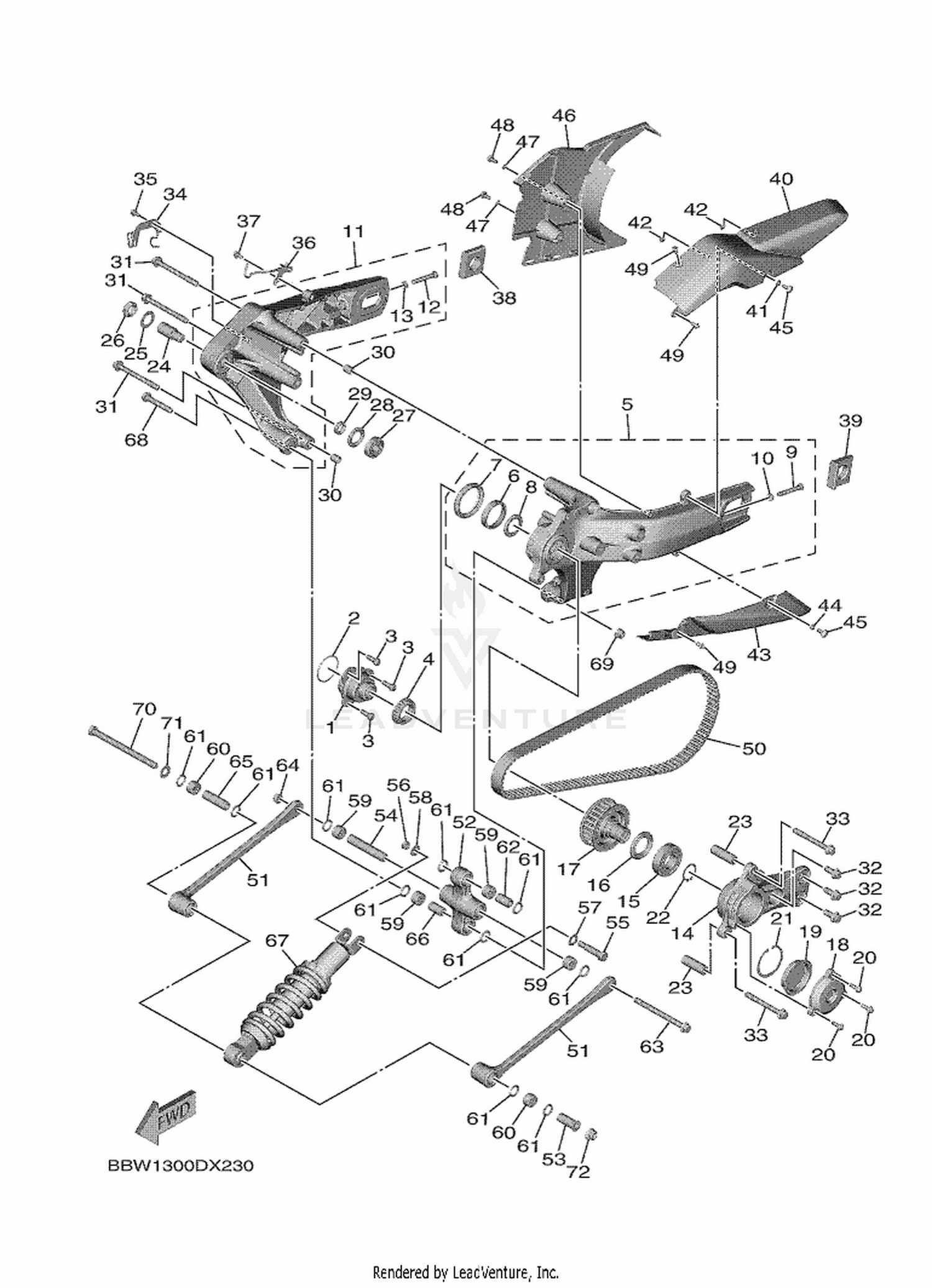

| Ref | Part Number | Description |
|---|
| 1 |
15B-17524-00 |
HOLDER Price: Call Us |
| 2 |
93210-50553 |
O-RING Price: Call Us |
| 3 |
91312-08020 |
BOLT Price: Call Us |
| 4 |
93332-00086 |
BEARING Price: Call Us |
| 5 |
BC3-2210M-00 |
REAR ARM ASSY 1 Price: Call Us |
| 6 |
5GJ-17554-00 |
RETAINER, BEARING Price: Call Us |
| 7 |
93102-55004 |
OIL SEAL Price: Call Us |
| 8 |
93102-30284 |
OIL SEAL Price: Call Us |
| 10 |
95302-08600 |
NUT, HEXAGON Price: Call Us |
| 11 |
BC3-2210N-01 |
REAR ARM ASSY 2 Price: Call Us |
| 13 |
95302-08600 |
NUT, HEXAGON Price: Call Us |
| 14 |
BC3-22465-00 |
HOLDER Price: Call Us |
| 17 |
B7M-17651-00 |
PULLEY, BELT Price: Call Us |
| 20 |
90110-06163 |
BOLT, HEXAGON SOCKET HEAD Price: Call Us |
| 21 |
99009-62500 |
CIRCLIP Price: Call Us |
| 22 |
99009-30400 |
CIRCLIP Price: Call Us |
| 23 |
59C-46153-00 |
COLLAR, GUIDE Price: Call Us |
| 24 |
15B-22141-00 |
SHAFT, PIVOT Price: Call Us |
| 25 |
90201-22018 |
WASHER, PLATE Price: Call Us |
| 26 |
1J7-22143-00 |
NUT Price: Call Us |
| 27 |
93332-00010 |
BEARING Price: Call Us |
| 28 |
93102-25017 |
OIL SEAL Price: Call Us |
| 29 |
90387-17011 |
COLLAR Price: Call Us |
| 30 |
99530-14016 |
PIN, DOWEL Price: Call Us |
| 31 |
95D32-10100 |
BOLT, FLANGE DEEP RECESS Price: Call Us |
| 32 |
95D32-10025 |
BOLT, FLANGE DEEP RECESS Price: Call Us |
| 33 |
95D32-10090 |
BOLT, FLANGE DEEP RECESS Price: Call Us |
| 34 |
BC3-21682-00 |
STAY, PLATE Price: Call Us |
| 35 |
95D32-06012 |
BOLT, FLANGE DEEP RECESS Price: Call Us |
| 36 |
BC3-2587A-00 |
HOLDER, BRAKE HOSE Price: Call Us |
| 37 |
90105-06181 |
BOLT, FLANGE Price: Call Us |
| 38 |
5VY-25388-00 |
PULLER, CHAIN 1 Price: Call Us |
| 39 |
5VY-25389-01 |
PULLER, CHAIN 2 Price: Call Us |
| 40 |
BC3-22311-01 |
CASE, CHAIN Price: Call Us |
| 41 |
90387-06372 |
COLLAR Price: Call Us |
| 42 |
90468-040A0 |
CLIP Price: Call Us |
| 43 |
BC3-22312-01 |
CASE, CHAIN 2 Price: Call Us |
| 44 |
90387-06372 |
COLLAR Price: Call Us |
| 45 |
90111-06116 |
BOLT,HEX. SOCKET BUTTON Price: Call Us |
| 46 |
BC3-22381-01 |
COVER 1 Price: Call Us |
| 47 |
90387-06372 |
COLLAR Price: Call Us |
| 48 |
95D32-06014 |
BOLT, FLANGE DEEP RECESS Price: Call Us |
| 49 |
90269-06001 |
RIVET Price: Call Us |
| 50 |
BC3-46241-01 |
BELT Price: Call Us |
| 51 |
BC3-2217M-00 |
ARM 1 Price: Call Us |
| 52 |
BC3-2217A-00 |
ARM, RELAY Price: Call Us |
| 53 |
BC3-2248B-00 |
COLLAR, ROD 1 Price: Call Us |
| 54 |
BC3-2248C-00 |
COLLAR, ROD 2 Price: Call Us |
| 55 |
90109-10027 |
BOLT Price: Call Us |
| 56 |
95612-10100 |
NUT, U Price: Call Us |
| 57 |
90201-13015 |
WASHER, PLATE Price: Call Us |
| 58 |
90201-10035 |
WASHER, PLATE Price: Call Us |
| 59 |
93315-31758 |
BEARING Price: Call Us |
| 60 |
93315-41774 |
BEARING Price: Call Us |
| 61 |
93109-17071 |
OIL SEAL Price: Call Us |
| 62 |
90387-127W0 |
COLLAR Price: Call Us |
| 63 |
90105-10220 |
BOLT, FLANGE Price: Call Us |
| 64 |
95602-10200 |
NUT, U FLANGE Price: Call Us |
| 65 |
BC3-2248B-10 |
COLLAR, ROD 1 Price: Call Us |
| 66 |
BC3-22882-00 |
COLLAR, DISTANCE 1 Price: Call Us |
| 67 |
BBW-22210-00 |
SHOCK ABSORBER ASSY, REAR Price: Call Us |
| 68 |
90105-10318 |
BOLT, FLANGE Price: Call Us |
| 69 |
95602-10200 |
NUT, U FLANGE Price: Call Us |
| 70 |
90101-12060 |
BOLT Price: Call Us |
| 71 |
90201-12034 |
WASHER, PLATE Price: Call Us |
