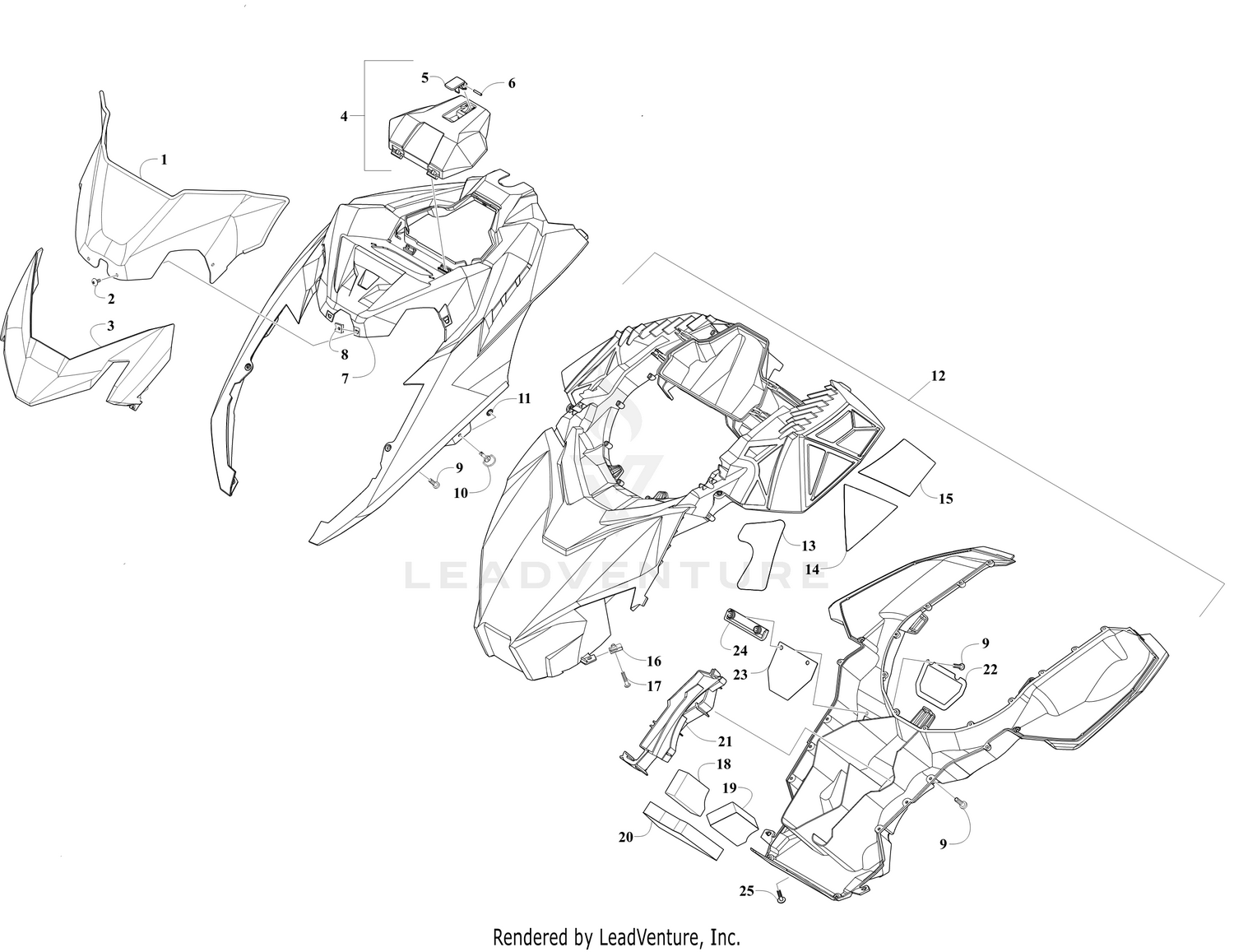

HOOD ASSEMBLY [110663] — Parts Catalog

Ref	Part Number	Description
1	1616-428	Windshield, Low - Medium Green Price: $88.95
2	2623-164	Screw, Self-Tapping Price: $1.53
3	1616-426	Trim, Headlight Cowl - Medium Green Price: $80.95
5	6406-611	Latch, Glove Box Price: $4.86
6	8070-282	Pin, Spring Price: $1.45
7	1616-425	Hood, Main - Medium Green Price: $299.95
8	1623-939	Nut, U Price: $1.30
9	1623-933	Screw, Self-Tapping Price: $0.35
10	2623-003	Pin, Retaining Price: $10.75
11	2623-004	Nut, Push Price: $4.72
13	1616-334	Screen, Front - Intake - Right Price: $17.29
13	1616-335	Screen, Front - Intake - Left Price: $17.29
14	1616-336	Screen, Mid - Intake - Right Price: $18.29
14	1616-337	Screen, Mid - Intake - Left Price: $18.29
15	1616-338	Screen, Rear - Intake - Right Price: $26.95
15	1616-339	Screen, Rear - Intake - Left Price: $26.95
16	1623-637	Clip, U-Nut Price: $2.61
17	8468-525	SCREW,MACH-TSPNH M5X0.8X25 CL8.8 BLK Price: $16.92
18	0	Not A Serviceable Item Not Available Price:
19	0	Not A Serviceable Item Not Available Price:
20	0	Not A Serviceable Item Not Available Price:
21	2670-709	Tuner, 1/4 Wave Price: Call Us
22	1616-232	Screen, Intake - Center Price: $4.84
23	1616-319	RETAINER,REED-UNDERHOOD AIR Price: $4.09
24	1616-320	REED,UNDERHOOD AIR Price: $1.94
