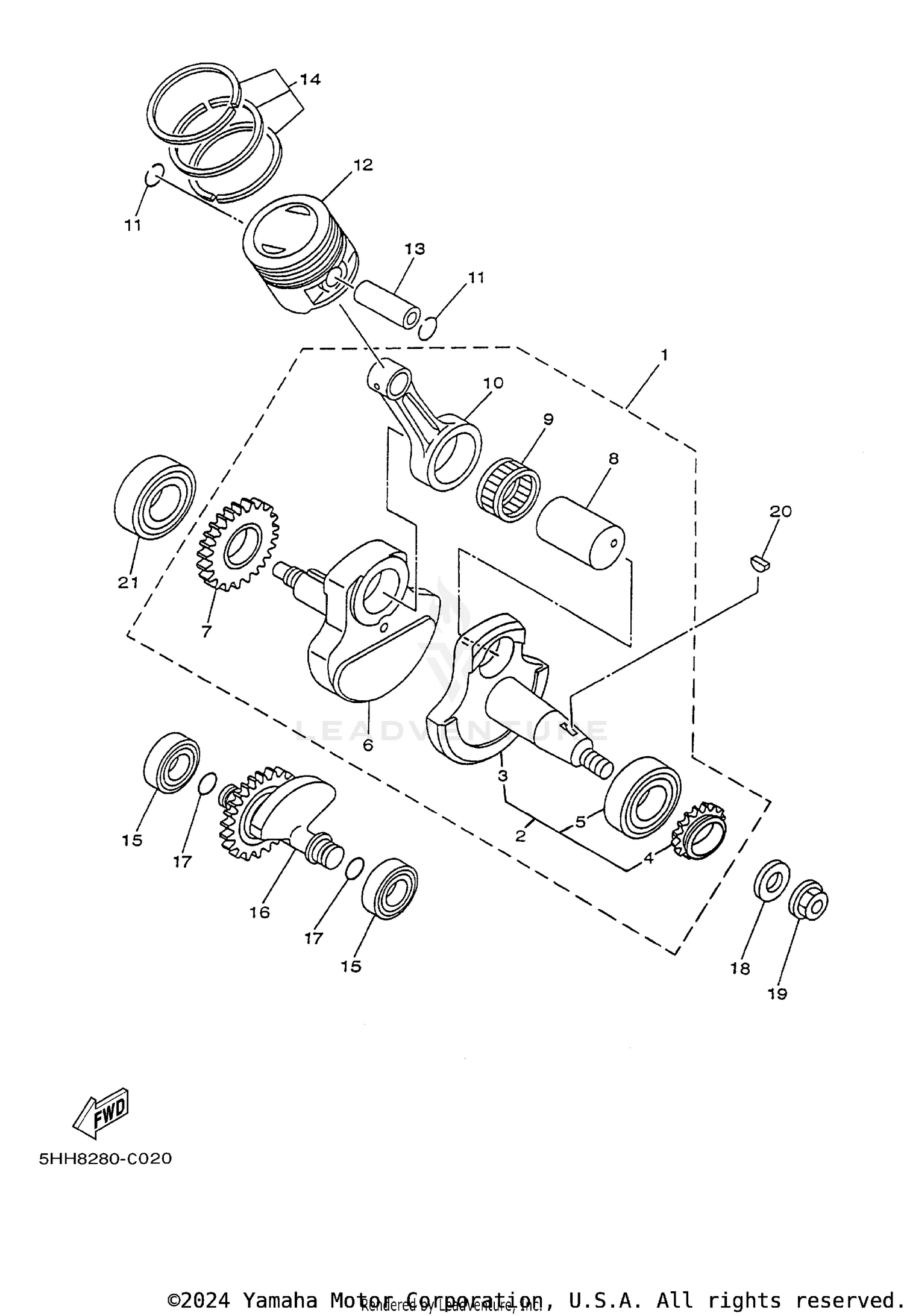

CRANKSHAFT PISTON
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5HH-E1400-20-00 | CRANKSHAFT ASSY Price: $751.99 |
| 2 | 5HH-WE141-20-00 | CRANK SUB ASSY 1 Price: $288.99 |
| 3 | 5HH-E1412-20-00 | CRANK 1 Price: Call Us |
| 4 | 5HH-11549-10-00 | SPROCKET, CAM CHAIN Price: $65.99 |
| 5 | 93306-20532-00 | BEARING This part replaces 93306-205YX-00. Price: $72.99 |
| 6 | 5HH-E1422-10-00 | CRANK 2 Price: $179.99 |
| 7 | 5HH-E1536-00-00 | GEAR, DRIVE Price: $89.99 |
| 8 | 4LS-11681-01-00 | PIN, CRANK 1 Price: $70.99 |
| 9 | 93310-6290C-00 | BEARING Price: $88.99 |
| 10 | 4LS-11651-02-00 | ROD, CONNECTING Price: $89.99 |
| 11 | 93450-16068-00 | CIRCLIP Price: $8.49 |
| 12 | 1B2-E1631-00-C0 | PISTON (STD) Price: $109.99 |
| 13 | 2TK-11633-00-00 | PIN, PISTON This part replaces 5HH-E1633-00-00. Price: $25.99 |
| 14 | 5RM-E1603-00-00 | PISTON RING SET (STD) Price: $92.99 |
| 15 | 93306-252YA-00 | BEARING Price: $14.49 |
| 16 | 5HH-E1500-03-00 | BALANCER ASSY Price: $145.99 |
| 17 | 93210-11001-00 | O-RING Price: $3.70 |
| 18 | 90201-120E8-00 | WASHER, PLATE Price: $8.49 |
| 19 | 90179-12657-00 | NUT This part replaces 90179-12248-00. Price: $6.49 |
| 20 | 90280-03017-00 | KEY, WOODRUFF This part replaces 90280-03045-00. Price: $8.49 |
