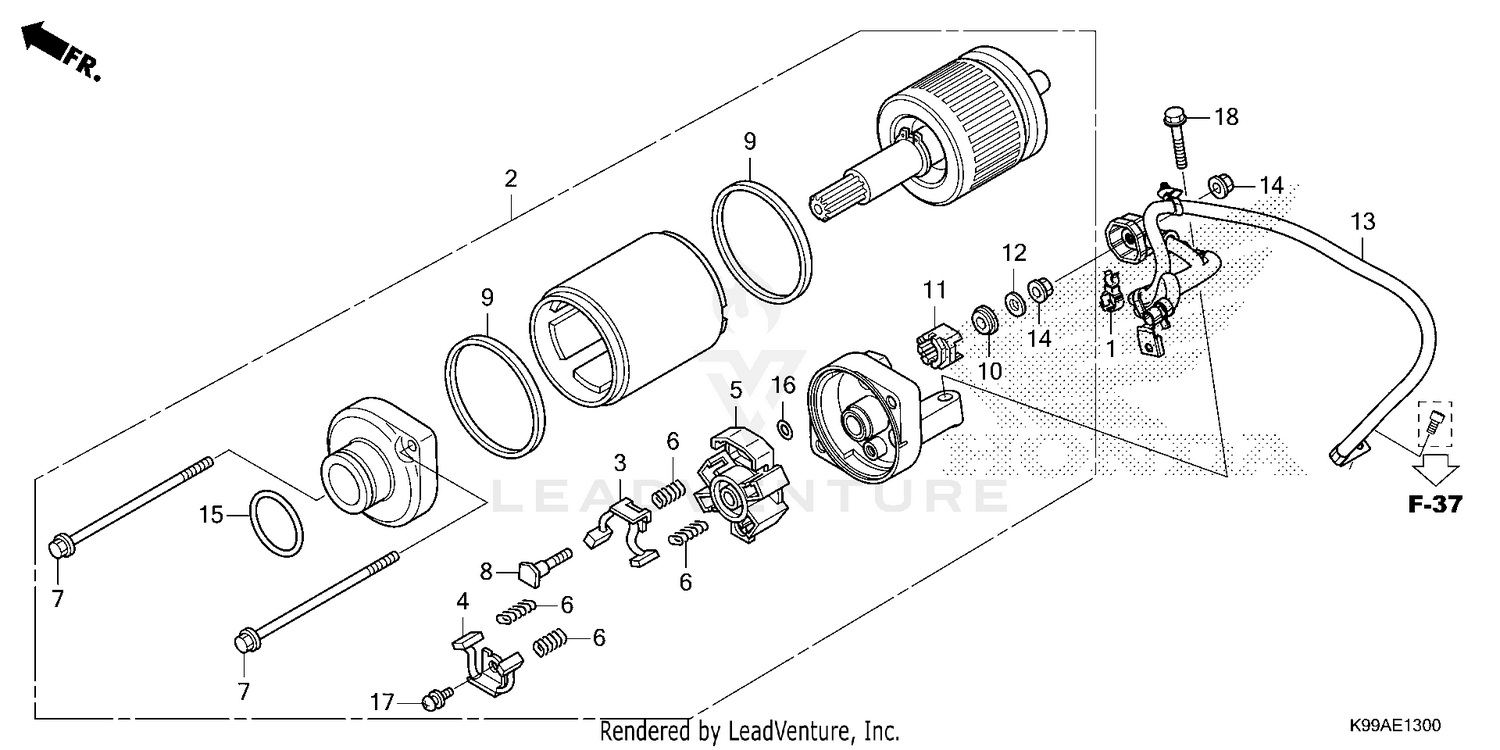

STARTING MOTOR
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 19119-K99-A71 | CLAMP, WATER HOSE Price: $2.45 |
| 2 | 31200-K2K-B01 | STARTER MOTOR ASSY. (MITSUBA) (NOT AVAILABLE) Price: $167.22 |
| 3 | 31201-MEW-921 | BRUSH SET A, CARBON (Honda Code 8476772) Price: $9.78 |
| 4 | 31202-MEW-921 | BRUSH SET B, CARBON (Honda Code 8476780) Price: $15.85 |
| 5 | 31203-MEW-921 | HOLDER, BRUSH (Honda Code 8614117) Price: $9.40 |
| 6 | 31204-MEW-921 | SPRING, CARBON BRUSH (Honda Code 8476798) Price: $15.30 |
| 7 | 31205-HP5-601 | BOLT, SETTING Price: $3.84 |
| 8 | 31206-MEW-921 | BOLT, TERMINAL Price: $3.35 |
| 9 | 31207-HP5-601 | RING Price: $2.45 |
| 10 | 31208-MEW-921 | INSULATOR (Honda Code 8476822) Price: $8.75 |
| 11 | 31209-MEW-921 | STOPPER, TERMINAL (Honda Code 8476830) Price: $12.98 |
| 12 | 31210-MEW-921 | WASHER Price: $2.07 |
| 13 | 32410-K99-A70 | CABLE Price: $32.40 |
| 14 | 90071-MB0-000 | NUT-WASHER (6MM) Price: $2.36 |
| 15 | 91312-MG7-003 | O-RING (24.4X3.1) This part replaces 91309-425-003. Price: $7.98 |
| 16 | 91320-MB0-000 | O-RING (Honda Code 1292184) Price: $2.76 |
| 17 | 93892-05012-08 | SCREW-WASHER (5X12) (Honda Code 0368621) Price: $1.20 |
