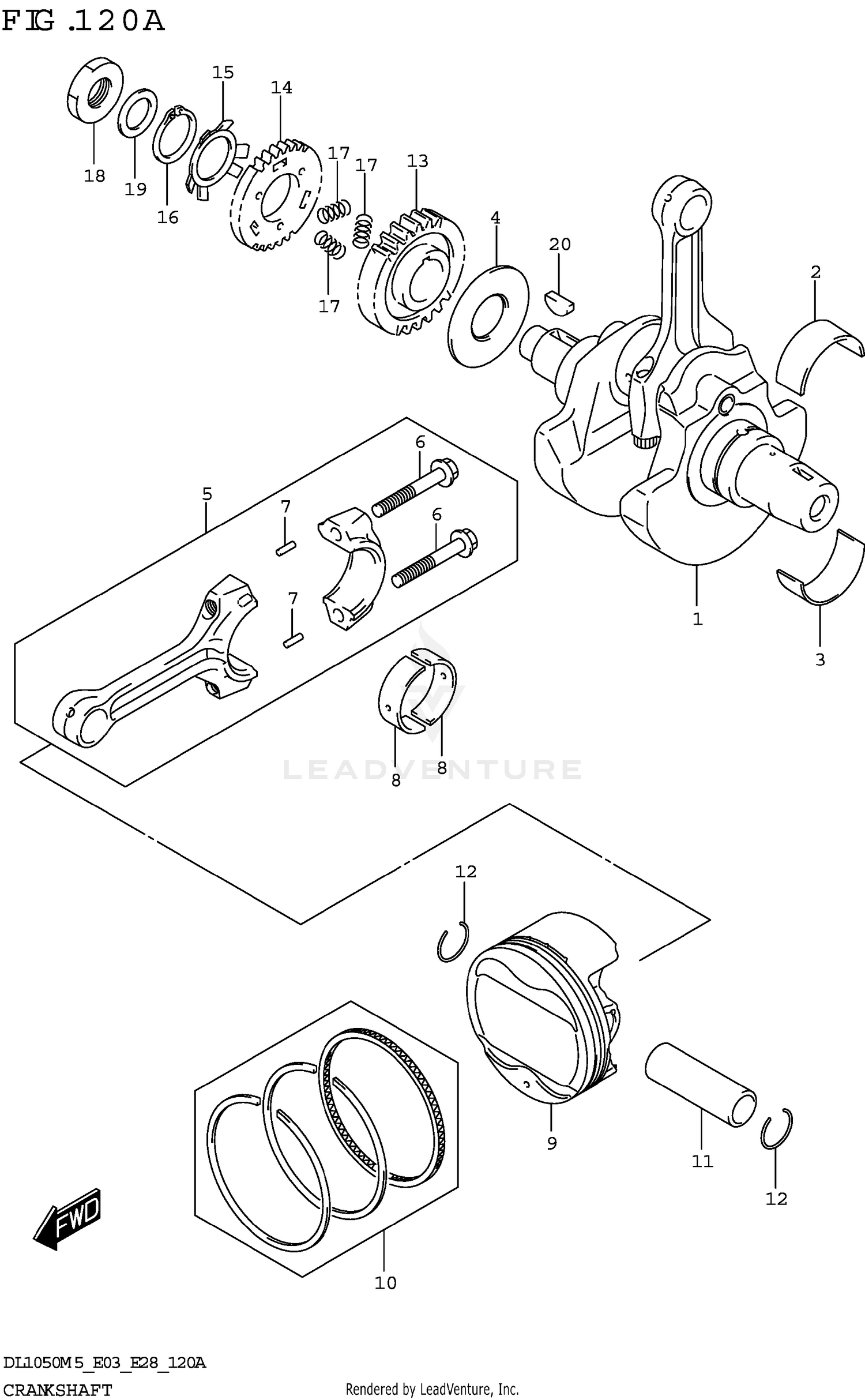

CRANKSHAFT
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 12220-31J00 | CRANKSHAFT Price: $1,488.38 |
| 4 | 12652-38B00 | WASHER,CRANK THRUST Price: $77.23 |
| 5 | 12160-06G10 | CONNECTING ROD ASSY Price: $207.20 |
| 9 | 12111-31J10-0F0 | PISTON Price: $205.86 |
| 10 | 12140-31J00 | RING SET,PISTON Price: $121.16 |
| 11 | 12151-02F10 | PIN,PISTON Price: $31.48 |
| 12 | 09381-22002 | CIRCLIP Price: $1.73 |
| 13 | 21111-02F11 | GEAR,PRI DRIVE (NT:31) Price: $147.23 |
| 15 | 21114-02F00 | WASHER,PRI DRIVE Price: $11.51 |
| 16 | 08331-31409 | CIRCLIP Price: $3.77 |
| 17 | 09440-07001 | SPRING Price: $2.50 |
| 18 | 09140-22012 | NUT Price: $13.86 |
| 19 | 09164-22007 | WASHER (22.2X35X2(3)) Price: $7.72 |
