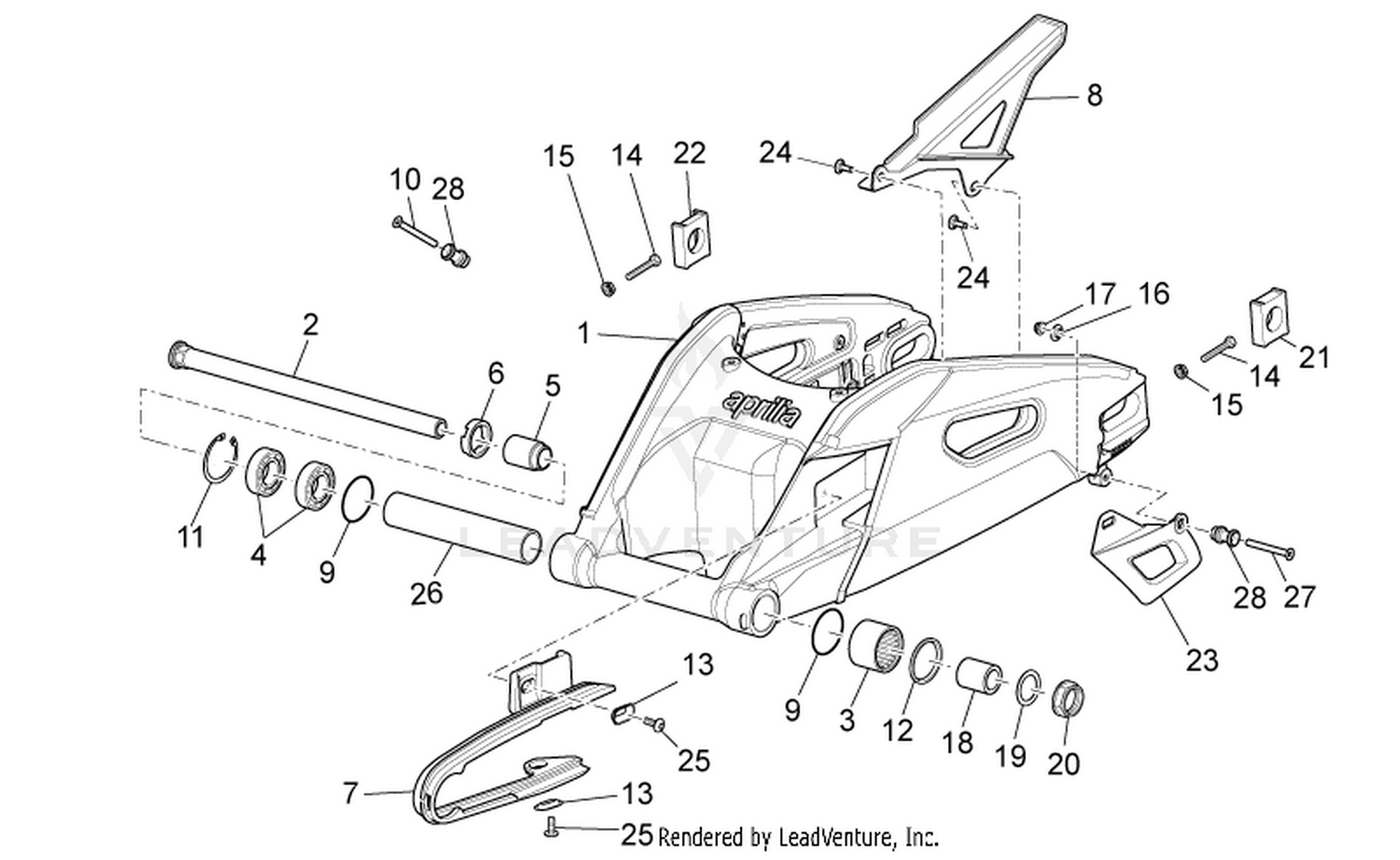

| Ref | Part Number | Description |
|---|
| 1 |
2B001289 |
Swing arm Price: Call Us |
| 2 |
858707 |
Rear swing arm pin Price: $127.08 |
| 3 |
AP8110078 |
Drawn cap Price: $8.40 |
| 4 |
890002 |
Ball bearing Price: $17.34 |
| 5 |
858708 |
Adjustment bush Price: $22.05 |
| 6 |
648707 |
Swing arm ring nut Price: $4.10 |
| 7 |
858780 |
Chain guide plate Price: $9.69 |
| 8 |
858783 |
Chain guard Price: $5.98 |
| 9 |
AP8144048 |
O-ring Price: $2.70 |
| 10 |
AP8150468 |
Screw Price: $2.70 |
| 11 |
AP8121204 |
Inside circlip Price: $2.70 |
| 12 |
AP8144005 |
Oil seal Price: $5.93 |
| 13 |
AP8234020 |
Cup for shoe Price: $1.97 |
| 14 |
2B001920 |
Chain tens.adjuster screw Price: $4.89 |
| 15 |
2B004511 |
Nut Price: $0.25 |
| 16 |
AP8121075 |
T bush Price: $2.70 |
| 17 |
AP8150430 |
Low self-locking nut Price: $0.12 |
| 18 |
AP8121203 |
Rear int.sw.arm piv.bush Price: $8.11 |
| 19 |
AP8125687 |
Wheel pin washer Price: $0.31 |
| 20 |
648708 |
Rear wheel spindle nut Price: $12.90 |
| 21 |
AP8144443 |
LH chain guide plate Price: $14.30 |
| 22 |
AP8144444 |
RH chain guide plate Price: $17.34 |
| 23 |
858781 |
Chain guide plate Price: $4.18 |
| 24 |
AP8152302 |
Screw w/ flange Price: $2.60 |
| 25 |
AP8152267 |
Hex socket screw Price: $0.25 |
| 26 |
AP8121570 |
Internal spacer Price: $13.42 |
| 27 |
AP8150503 |
Screw Price: $2.70 |
