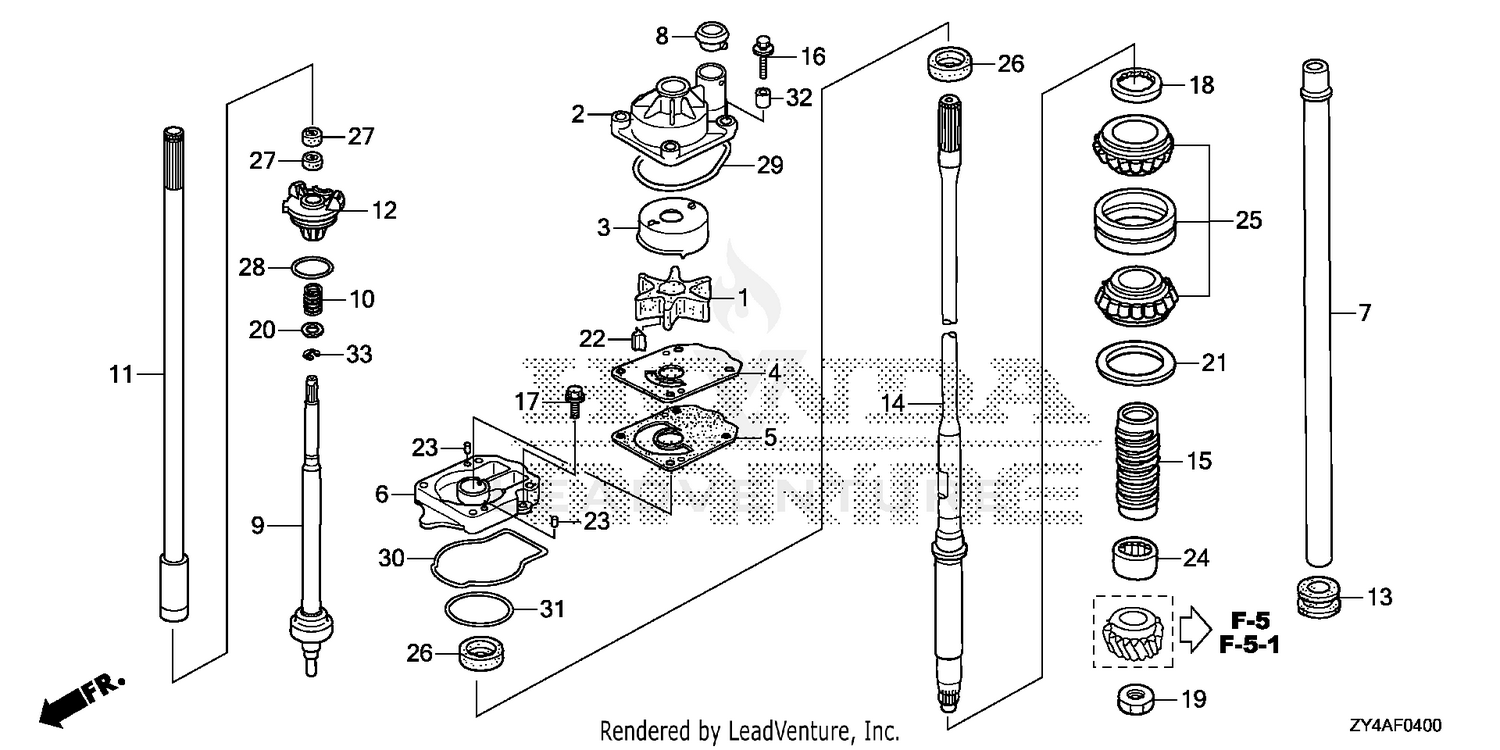

| Ref | Part Number | Description |
|---|
| 1 |
19210-ZY3-023 |
IMPELLER, PUMP This part replaces 19210-ZY3-003. Price: $55.10 |
| 1 |
53209KV7670 |
SEAL, WINKER LENS Price: Call Us |
| 2 |
19221-ZY3-010 |
SEE PART DETAILS - PRI; HOUSING, IMPELLER Price: $63.18 |
| 2 |
83504GE0000 |
GROMMET, RR. COVER Price: Call Us |
| 3 |
19223-ZY3-000 |
LINER, PUMP Price: $43.14 |
| 3 |
83551GE2000 |
GROMMET, AIR CLEANER CASE Price: Call Us |
| 4 |
19231-ZY3-000 |
COVER, IMPELLER Price: $20.94 |
| 4 |
83600MCA000YE |
COVER SET, R. SIDE *NHA54M* Price: Call Us |
| 4 |
83600MCA000YF |
COVER SET, R. SIDE *B191M* Price: Call Us |
| 4 |
83600MCA000ZM |
COVER SET, R. SIDE *R287M* Price: Call Us |
| 5 |
19234-ZY3-000 |
GASKET B, IMPELLER Price: $7.62 |
| 5 |
83605MCAA40 |
EMBLEM, SIDE COVER Price: Call Us |
| 6 |
06400-ZY3-000 |
KIT,WATER PUMP HS This part replaces 19241-ZY3-000. Price: $104.40 |
| 6 |
83610MCA000ZA |
PROTECTOR SET, R. SIDE *NH303M* Price: Call Us |
| 7 |
19251-ZY3-611 |
TUBE, WATER (XL) Price: $54.12 |
| 7 |
83700MCA000YE |
COVER SET, L. SIDE *NHA54M* Price: Call Us |
| 7 |
83700MCA000YF |
COVER SET, L. SIDE *B191M* Price: Call Us |
| 7 |
83700MCA000ZM |
COVER SET, L. SIDE *R287M* Price: Call Us |
| 8 |
19253-ZY3-000 |
RING, WATER TUBE SEAL Price: $8.96 |
| 8 |
83710MCA000ZA |
PROTECTOR SET, L. SIDE *NH303M* Price: Call Us |
| 9 |
24310-ZY3-E00 |
ROD, SHIFT (COUNTER ROTATION) Price: $223.12 |
| 10 |
24318-ZY3-000 |
SPRING, SHIFT ROD Price: $3.74 |
| 11 |
24320-ZY6-610 |
ROD A, SHIFT (XL) Price: $116.58 |
| 12 |
24343-ZW1-B02 |
SEE PART DETAILS - PRI; HOLDER, SHIFT ROD Price: $22.00 |
| 13 |
40204-ZY3-000 |
GROMMET, EXTENSION CASE Price: $8.68 |
| 14 |
41112-ZY3-611 |
SHAFT, VERTICAL (XL) Price: $1,079.36 |
| 15 |
41116-ZY3-000 |
SLINGER, OIL Price: $31.08 |
| 16 |
90105-ZX2-C00 |
BOLT-WASHER (8X60) Price: $11.50 |
| 17 |
90215-HW1-671 |
SEE PART DETAILS - PRI; BOLT, FLANGE (6X16) (SUS) Price: $1.42 |
| 18 |
90242-ZW1-000 |
NUT, LOCK (64MM) Price: $35.94 |
| 19 |
90303-ZY3-000 |
NUT, HEX. (18MM) Price: $13.78 |
| 20 |
90472-723-000 |
WASHER, PLAIN (12MM) Price: $1.96 |
| 21 |
90518-ZW1-B00 |
SHIM A, GEAR (0.10) Price: $10.06 |
| 21 |
90519-ZW1-B00 |
SHIM B, GEAR (0.15) Price: $10.06 |
| 21 |
90520-ZW1-B00 |
SHIM C, GEAR (0.30) Price: $10.06 |
| 21 |
90521-ZW1-B00 |
SHIM D, GEAR (0.50) Price: $10.06 |
| 22 |
90752-ZY3-003 |
KEY, WOODRUFF Price: $24.44 |
| 23 |
90756-ZV5-000 |
PIN, DOWEL (6X10) Price: $3.62 |
| 24 |
91053-ZY3-003 |
BEARING, NEEDLE (32X46X37) Price: $62.30 |
| 25 |
91054-ZW1-B31 |
BEARING, TAPER ROLLER (30X62X40) Price: $103.56 |
| 26 |
91251-ZY3-C01 |
SEAL, WATER (26X42X7) Price: $7.70 |
| 27 |
91254-ZY3-003 |
SEAL, WATER (12X21X6) Price: $6.20 |
| 28 |
91308-MJ0-003 |
O-RING (49.4X3.1) Price: $4.94 |
| 29 |
91356-ZY3-003 |
O-RING, WATER PUMP Price: $10.10 |
| 30 |
91358-ZY3-003 |
O-RING, WATER PUMP HOUSING Price: $10.72 |
| 31 |
91359-ZY3-003 |
O-RING (69.1X2.4) Price: $10.72 |
| 32 |
91551-ZY3-000 |
COLLAR, DISTANCE Price: $2.90 |
