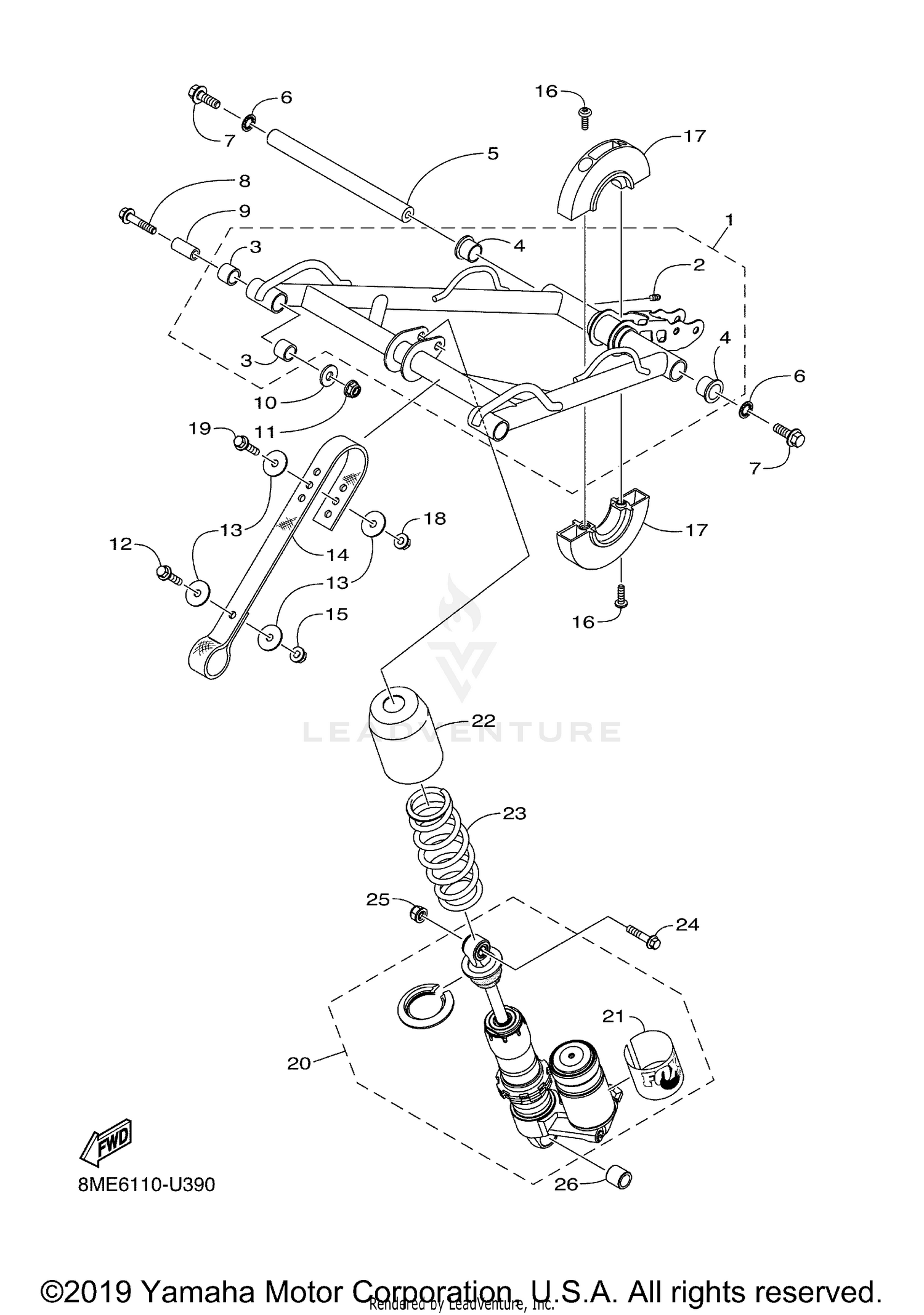

| Ref | Part Number | Description |
|---|
| 1 |
8JR-G7331-10-00 |
ARM, PIVOT 1 Price: $336.99 |
| 2 |
8JP-RAL01-00-00 |
NIPPLE, GREASE 1 Price: $2.85 |
| 3 |
8JP-RA814-00-00 |
BUSH, 5 Price: $5.49 |
| 4 |
8JP-RA812-00-00 |
BUSH, 0.751 Price: $4.85 |
| 5 |
8JP-G7486-10-00 |
SHAFT 4 Price: $39.99 |
| 6 |
8JP-RA457-00-00 |
WASHER, TOOTH M10 Price: $0.65 |
| 7 |
8JP-RA199-00-00 |
BOLT, FLANGE M10X1.25X30 Price: $3.85 |
| 8 |
8JP-RA296-00-00 |
SCREW, 7 Price: $4.30 |
| 9 |
8JP-RA733-00-00 |
COLLAR, 16 Price: $26.99 |
| 10 |
8JP-RA462-00-00 |
WASHER, PLAIN Price: $1.15 |
| 11 |
8JP-RA360-00-00 |
NUT, FLANGE LOCKING Price: $1.40 |
| 12 |
8JP-RA183-00-00 |
BOLT, FLANGE M6X1.0X30 Price: $1.50 |
| 13 |
8JP-RA450-00-00 |
WASHER, 6.87X25.4X2.32 Price: $0.95 |
| 14 |
8KG-G7495-00-00 |
STOPPER 1 Price: $20.99 |
| 15 |
8JM-RA322-00-00 |
NUT, FLANGE M6-1.0 Price: $1.15 |
| 16 |
8JP-RA289-00-00 |
SCREW, 10-14X3/4 Price: $0.45 |
| 17 |
8JR-G7513-00-00 |
RIM, GUIDE WHEEL 1 Price: $10.49 |
| 18 |
8KC-RA309-00-00 |
NUT Price: $0.25 |
| 19 |
8MF-RA183-00-00 |
BOLT FLANGE M6X1.0X Price: $1.75 |
| 20 |
8MF-F2201-00-00 |
DAMPER SUB ASSY Price: $542.99 |
| 21 |
8JW-F151J-00-00 |
LABEL 6 Price: $51.99 |
| 22 |
8JP-F2211-00-00 |
COVER Price: $34.99 |
| 23 |
8JR-G7336-00-00 |
SPRING Price: $98.99 |
| 24 |
8JP-RA1A2-00-00 |
BOLT, FLANGE Price: $2.65 |
| 25 |
8JP-RA360-10-00 |
NUT, FLANGE LOCKING Price: $1.25 |
