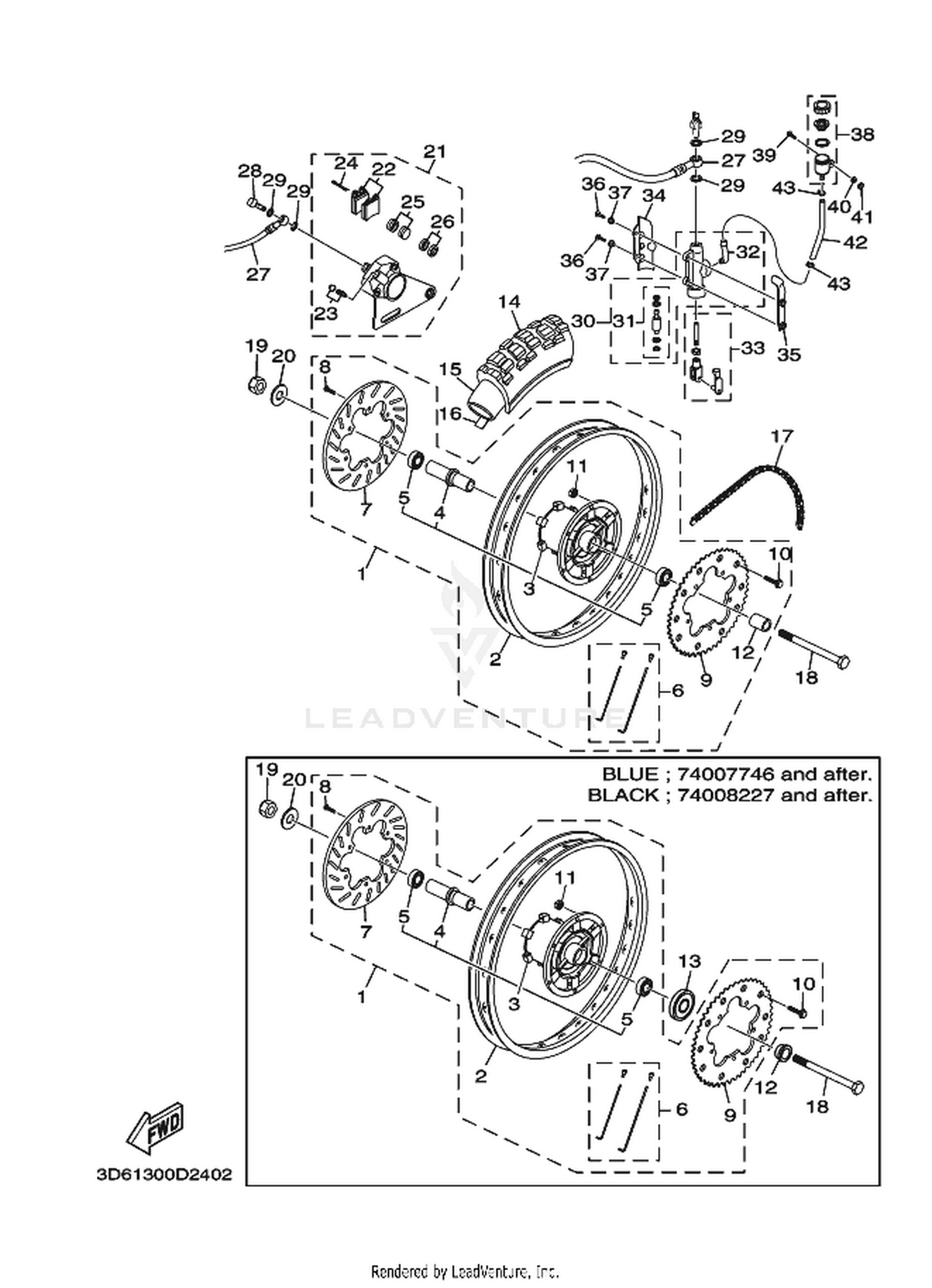

24 REAR WHEEL BRAKE SYSTEM
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 3D6-F5300-00 | REAR WHEEL ASSY Price: Call Us |
| 16 | 1D4-F5719-00 | BAND, RIM Price: Call Us |
| 17 | 3D6-F2269-00 | CHAIN Price: Call Us |
| 18 | 1D4-F5381-00 | AXLE, WHEEL Price: Call Us |
| 19 | 1D4-F2143-00 | NUT Price: Call Us |
| 20 | 1D4-F2142-00 | WASHER, SHAFT Price: Call Us |
| 21 | 3D6-F580W-00 | CALIPER ASSY, REAR 2 Price: Call Us |
| 27 | 3D6-F5873-00 | HOSE, BRAKE 2 Price: Call Us |
| 28 | 1D4-F244H-00 | BOLT Price: Call Us |
| 29 | 1D4-F5147-00 | WASHER, THRUST Price: Call Us |
| 30 | 1D4-F583V-00 | RR. MASTER CYLINDER ASSY. Price: Call Us |
| 33 | 3D6-F5880-00 | PUSH ROD COMP. Price: Call Us |
| 34 | 1D4-F586E-00 | PROTECTOR, MASTER CYLINDER Price: Call Us |
| 35 | 3D6-F133F-00 | BRACKET, MASTER CYLINDER Price: Call Us |
| 36 | 1D4-F4177-00 | BOLT 2 Price: Call Us |
| 38 | 1D4-F5804-00 | RESERVE TANK ASSY. Price: Call Us |
| 39 | 1D4-F4176-00 | BOLT 1 Price: Call Us |
| 41 | 1D4-E4775-00 | NUT Price: Call Us |
| 42 | 1D4-F5874-00 | HOSE, BRAKE Price: Call Us |
