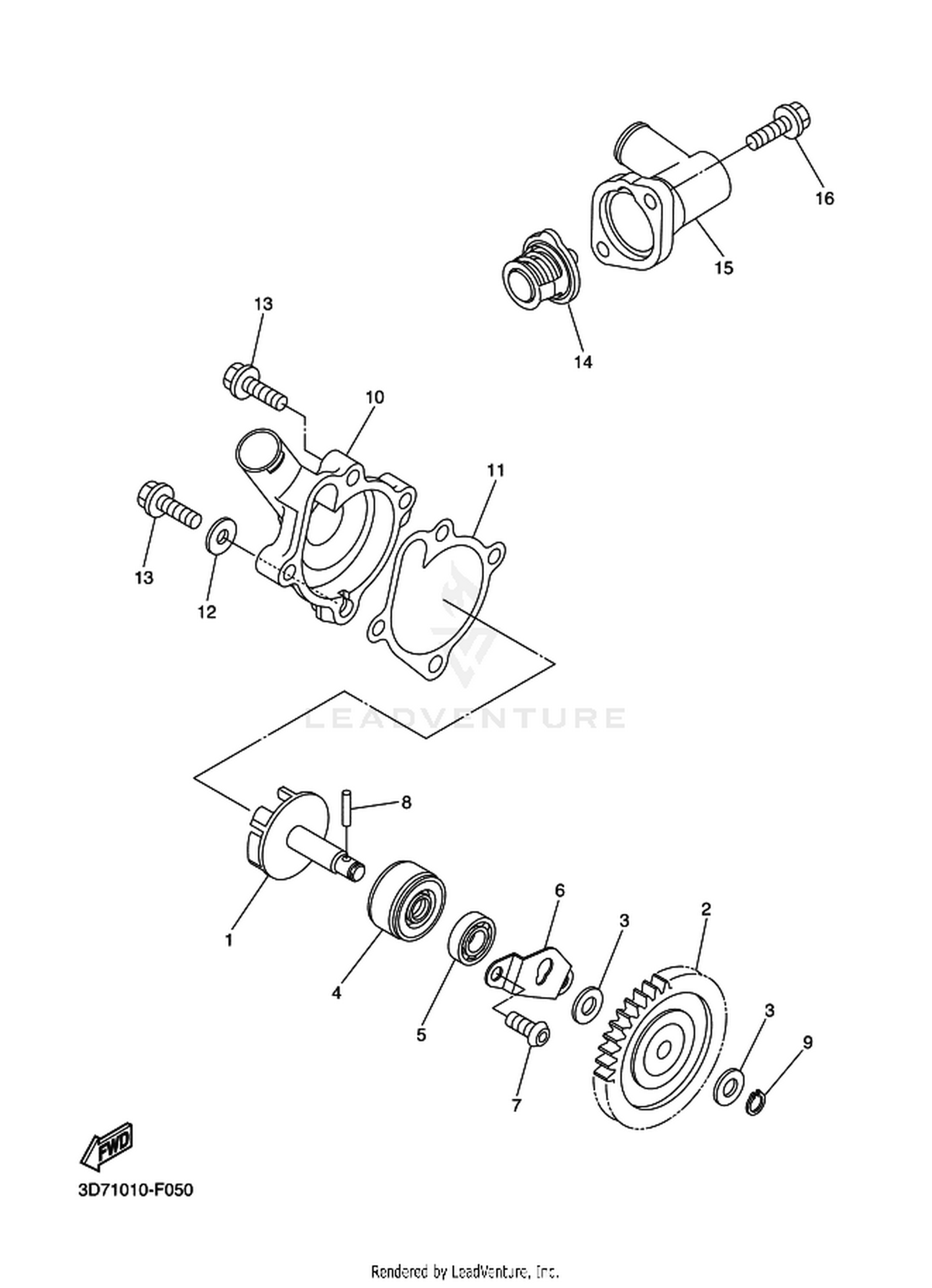

05 WATER PUMP
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 3D7-12450-00 | IMPELLER SHAFT ASSY Price: Call Us |
| 2 | 3D7-12453-00 | GEAR Price: Call Us |
| 3 | 90201-08073 | WASHER, PLATE Price: Call Us |
| 5 | 93306-90001 | BEARING Price: Call Us |
| 6 | 3D7-12681-00 | PLATE Price: Call Us |
| 7 | 90149-06083 | SCREW Price: Call Us |
| 8 | 93603-17070 | PIN, DOWEL Price: Call Us |
| 9 | 99009-08400 | CIRCLIP Price: Call Us |
| 10 | 3D7-12422-00 | COVER, HOUSING Price: Call Us |
| 11 | 3D7-12428-00 | GASKET, HOUSING COVER 2 Price: Call Us |
| 12 | 90430-06014 | GASKET Price: Call Us |
| 13 | 95022-06025 | BOLT, FLANGE Price: Call Us |
| 14 | 4D9-12411-00 | THERMOSTAT Price: Call Us |
| 15 | 3D7-12413-00 | COVER, THERMOSTAT Price: Call Us |
