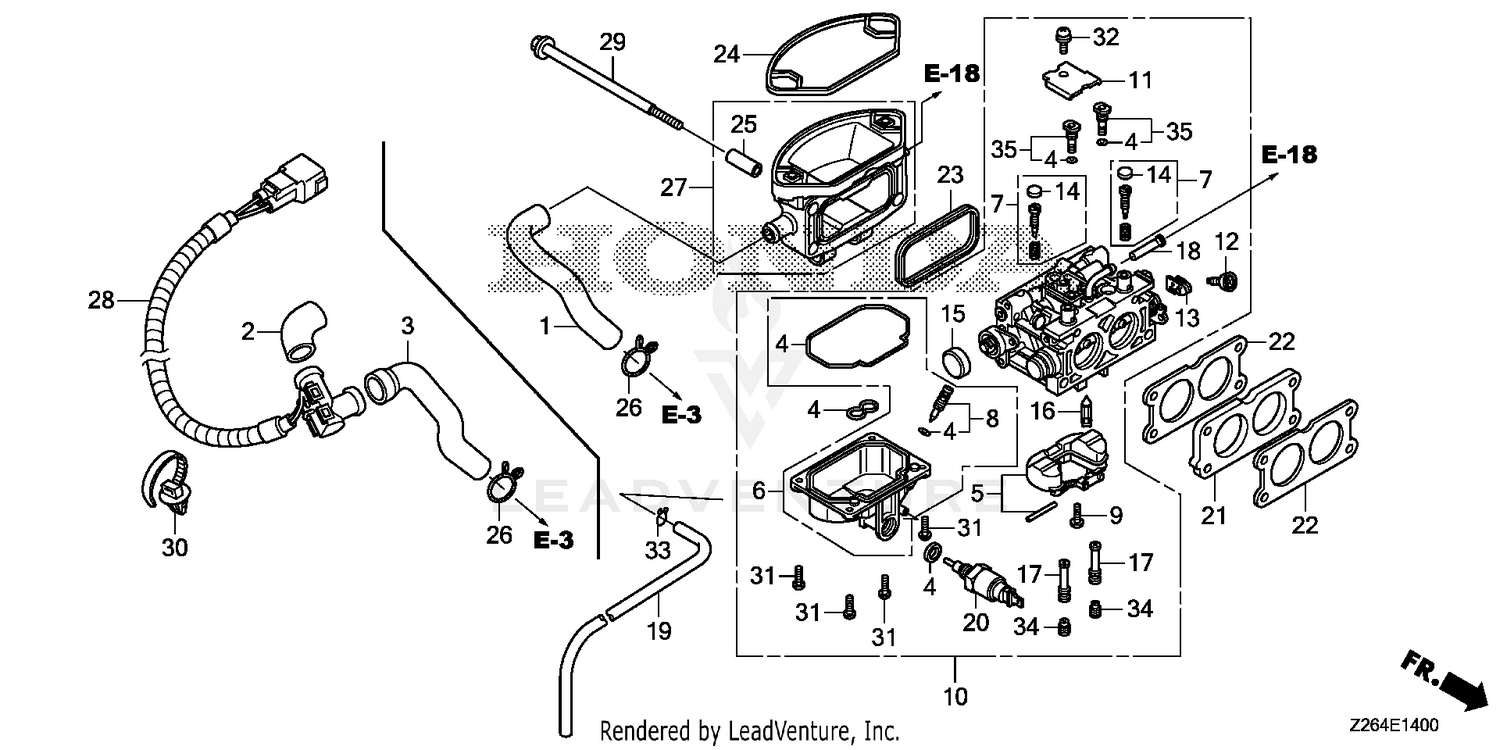

| Ref | Part Number | Description |
|---|
| 1 |
15721-Z6L-000 |
TUBE, BREATHER Price: $6.70 |
| 4 |
16010-Z6L-003 |
GASKET SET Price: $22.04 |
| 5 |
16013-Z6L-003 |
FLOAT SET Price: $27.64 |
| 6 |
16015-Z6L-003 |
CHAMBER SET, FLOAT Price: $97.10 |
| 7 |
16016-ZCP-WA1 |
SCREW SET Price: $10.86 |
| 8 |
16024-124-760 |
SEE PART DETAILS - PRI; SCREW SET, DRAIN (ADVENTURE GREEN) (CARBURETOR NO.) Price: $14.64 |
| 9 |
16081-Z6L-003 |
SCREW, FLOAT Price: $5.06 |
| 10 |
16100-ZCP-WD1 |
CARBURETOR ASSY. (BK07W A) Price: $248.17 |
| 11 |
16113-Z6L-003 |
PLATE Price: $7.54 |
| 12 |
16124-ZE0-005 |
SCREW, THROTTLE STOP (Honda Code 1441559). Price: $17.88 |
| 13 |
16126-Z6L-003 |
ARM, THROTTLE LINKAGE Price: $9.02 |
| 14 |
16134-Z6L-801 |
CAP, ADJUSTING SCREW (CARBURETOR NO.) Price: $3.16 |
| 15 |
16148-141-881 |
SEE PART DETAILS - PRI; CAP, CHOKE LEVER DUST (Honda Code 2110468). Price: $6.58 |
| 16 |
16155-Z6L-003 |
VALVE, FLOAT Price: $27.98 |
| 17 |
16166-ZCP-WA1 |
NOZZLE, MAIN Price: $19.90 |
| 18 |
16176-Z2G-D51 |
SCREEN, FUEL STRAINER Price: $10.84 |
| 19 |
16198-ZCL-000 |
TUBE, DRAIN Price: $3.80 |
| 20 |
16200-Z6L-003 |
VALVE ASSY., SOLENOID Price: $60.36 |
| 21 |
16211-Z6L-000 |
INSULATOR, CARBURETOR Price: $10.10 |
| 22 |
16221-Z6L-000 |
GASKET, CARBURETOR Price: $4.78 |
| 23 |
17228-Z6L-000 |
GASKET, AIR CLEANER Price: $4.16 |
| 24 |
17229-Z6L-000 |
SEAL, AIR CLEANER HOUSING Price: $6.34 |
| 25 |
17238-ZE7-010 |
COLLAR, AIR CLEANER Use from Engine SN 1786085. Price: $4.58 |
| 26 |
17369-KB4-670 |
CLIP, BREATHER TUBE Price: $7.12 |
| 27 |
17410-Z6L-000 |
ELBOW, AIR CLEANER Price: $37.60 |
| 29 |
90003-Z6L-010 |
BOLT, FLANGE (6X106) Price: $3.74 |
| 31 |
93500-04012-0H |
SEE PART DETAILS - PRI; SCREW, PAN (4X12) (Honda Code 0285643). Price: $1.14 |
| 32 |
93892-05010-18 |
SCREW-WASHER (5X10) Price: $1.44 |
| 33 |
95002-02080 |
CLIP, TUBE (B8) (Honda Code 0250647). Price: $2.20 |
| 34 |
99101-ZH8-1100 |
JET, MAIN (#110) (CARBURETOR NO.) Price: $8.74 |
