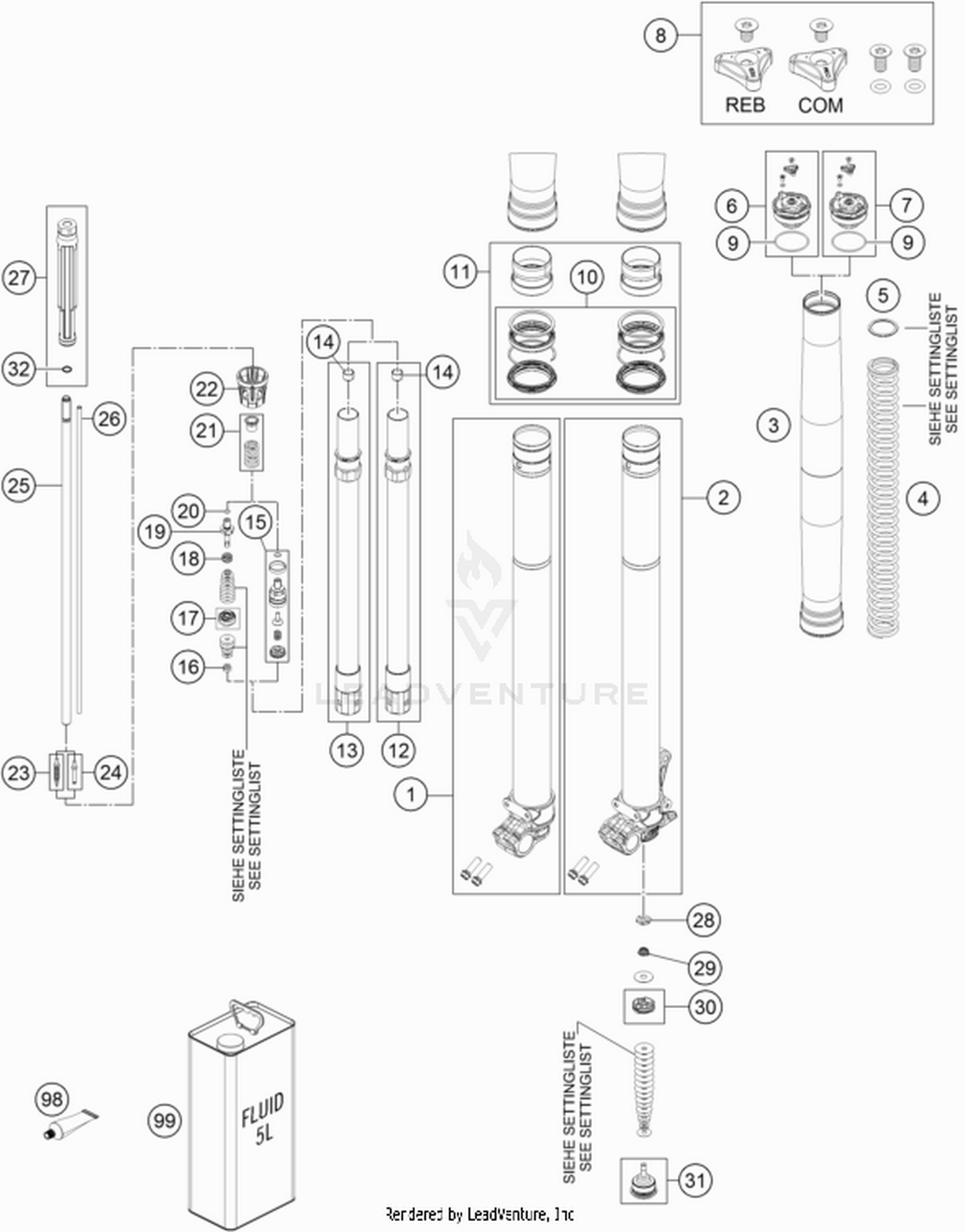

| Ref | Part Number | Description |
|---|
| 1 |
48601633S1 |
AXLE CLAMP OC R/S CPL. TUBE Price: Call Us |
| 2 |
48601632S1 |
AXLE CLAMP OC L/S CPL. TUBE Price: Call Us |
| 3 |
48600736 |
Fork outer tube 49,13x577 dt54 Price: Call Us |
| 5 |
48600456 |
Washer 35x43x2,5 plastic Price: Call Us |
| 5 |
48600457 |
Preload bush 35x43x3,5 Price: Call Us |
| 5 |
48600458 |
Washer 35x43x1,5 plastic Price: Call Us |
| 6 |
48601680S2 |
Screw cap M51x1,5 PA right cpl This part replaces 48601680S. Price: Call Us |
| 7 |
48601681S |
Screw cap M51x1,5 PA compressi Price: Call Us |
| 8 |
R14033T |
SCREW CAP SMALL PART KIT This part replaces R14033. Price: Call Us |
| 9 |
48600048 |
O-ring 46x2 NBR70 siliconized Price: Call Us |
| 10 |
RP10048T |
Seal kit 48mm SKF black This part replaces R14046. Price: Call Us |
| 11 |
RP10048T |
Seal kit 48mm SKF black This part replaces R14063. Price: Call Us |
| 12 |
48600763S1 |
PIPETHREADED SLEEVE WITH HOLE Price: Call Us |
| 13 |
48600763S2 |
PIPE THREADED SLEEVE Price: Call Us |
| 14 |
48600430 |
Guide bushing 12x14x10 Price: Call Us |
| 15 |
48601554S1 |
Assembly compression tap cpl. Price: Call Us |
| 16 |
40540486 |
Nut M6x0,5 h6,5 WAF10 rebound Price: Call Us |
| 17 |
48600575S |
PISTON REBOUND + PISTON RING Price: Call Us |
| 18 |
48600382 |
Spring (11,4) 0,4-8 valve Price: Call Us |
| 19 |
48600576 |
Tap 6x46 rebound Price: Call Us |
| 20 |
48600299 |
O-ring 6x1,2 NBR70 Price: Call Us |
| 21 |
48600578S |
Spring (13,9) 37-32 rebound cp Price: Call Us |
| 22 |
48601298 |
Spring retainer 27,08x43x45 Price: Call Us |
| 23 |
48600277S |
Needle 4,5x43,6 cpl. Price: Call Us |
| 24 |
48601558S |
Needle 4,5x38,2 cpl. Price: Call Us |
| 25 |
48600568 |
Piston rod 12x554 Price: Call Us |
| 26 |
48601786 |
Adjustment tube 6x521,7 Price: Call Us |
| 27 |
S228700003S0100 |
Stop 12,4x31,9x200,3 kpl. This part replaces 48601556S. Price: Call Us |
| 28 |
48600163 |
Nut valve M6x0,5 h6,5 WAF17 Price: Call Us |
| 29 |
48600202 |
Spring (8,5) l6,5 valve Price: Call Us |
| 30 |
48600047S |
Piston 6x27,8x9 compression cp Price: Call Us |
| 31 |
48601553S |
Screw cap M29,3x1 OC split cpl Price: Call Us |
| 32 |
04500003 |
O-ring 11x2,5 NBR70 PTFE yello Price: Call Us |
| 98 |
T14034 |
Fuchs grease IPR (250g) This part replaces T511. Price: Call Us |
