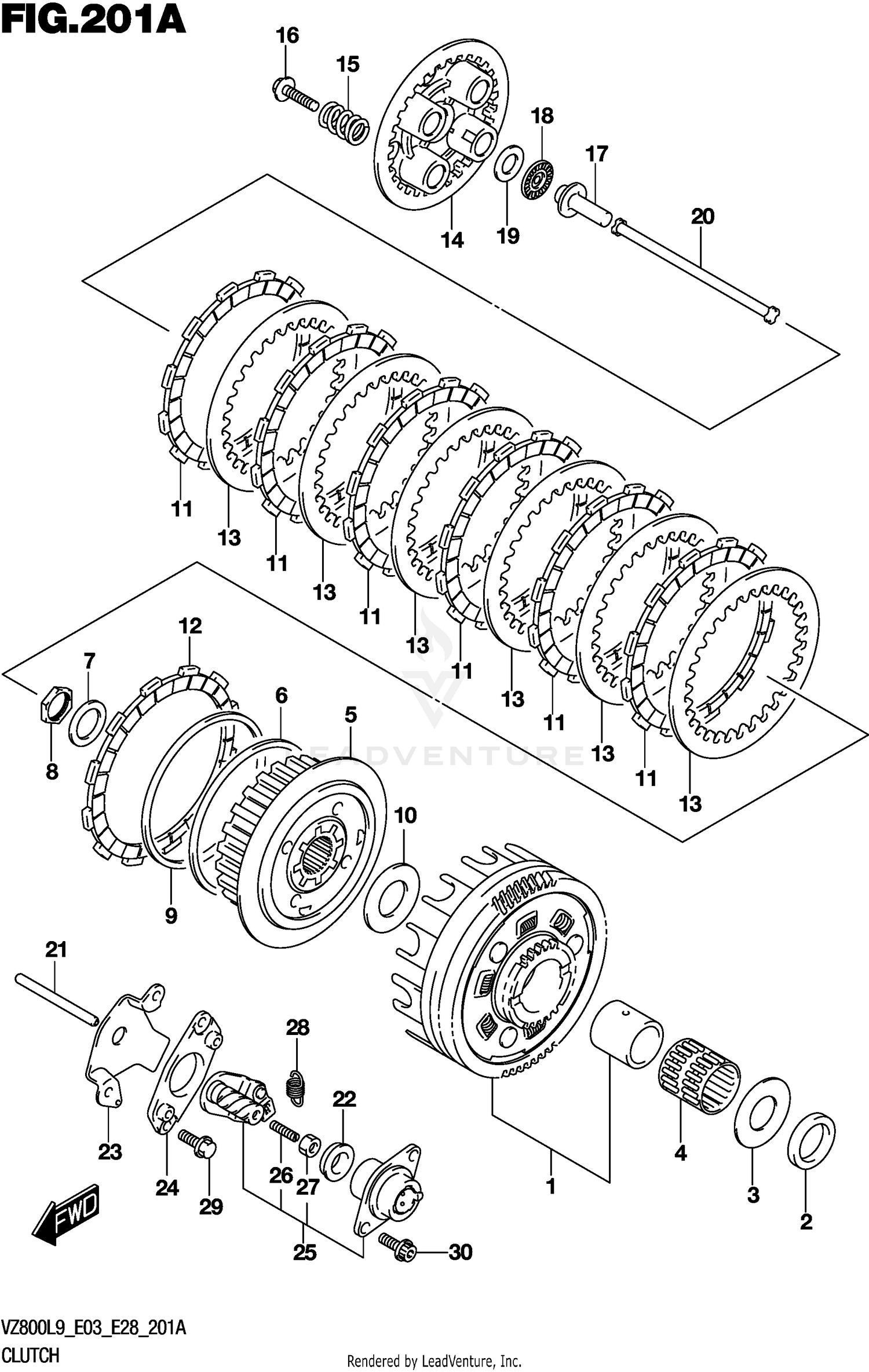

| Ref | Part Number | Description |
|---|
| 1 |
21200-38840 |
GEAR ASSY,PRIMARY (NT:71) Price: $495.99 |
| 2 |
09180-25077 |
SPACER (25X38X6.5) Price: $14.23 |
| 3 |
09160-25055 |
WASHER (25X50X2.5) Price: $9.05 |
| 4 |
09263-35017 |
BEARING (35X40X35.8) Price: $50.09 |
| 5 |
21410-41F00 |
HUB,CLUTCH SLEEVE Price: $155.45 |
| 6 |
21471-37400 |
SEAT, WAVE WASHER (T:1.4) Price: $12.08 |
| 7 |
09164-22007 |
WASHER (22.2X35X2(3)) Price: $7.72 |
| 8 |
09140-22008 |
NUT Price: $7.72 |
| 9 |
09164-00004 |
WASHER (110.5X119X0.9) Price: $14.02 |
| 10 |
09160-25055 |
WASHER (25X50X2.5) Price: $9.05 |
| 11 |
21441-37400 |
PLATE,CLUTCH DRIVE (T:3.0) Price: $22.39 |
| 12 |
21442-37401 |
PLATE,CLUTCH DRIVE (T:3.5) Price: $23.06 |
| 13 |
21451-14A00 |
PLATE,CLUTCH DRIVEN (T:1.6) Price: $11.76 |
| 14 |
21462-27A00 |
DISK,CLUTCH PRESSURE Price: $62.30 |
| 15 |
21413-41F00 |
SPRING,CLUTCH Price: $5.92 |
| 16 |
09116-06203 |
BOLT (6X30) Price: $3.89 |
| 17 |
23121-31E00 |
PIECE,CLUTCH PUSH Price: $30.40 |
| 18 |
09263-15003 |
BEARING (15X28X2) Price: $10.10 |
| 19 |
09160-15045 |
WASHER (15.5X28X1) Price: $4.75 |
| 20 |
23110-27A00 |
ROD,CLUTCH (L:161) Price: $26.79 |
| 21 |
23111-45C00 |
ROD,CLUTCH PUSH LEFT Price: $18.76 |
| 22 |
09283-06010 |
OIL SEAL (6X34X10.5) Price: $20.46 |
| 23 |
23117-45C00 |
RETAINER,CL PUSH ROD OIL SEAL Price: $4.55 |
| 24 |
23130-45C00 |
PLATE,CLUTCH RELEASE SCREW Price: $28.39 |
| 25 |
23200-41F00 |
SCREW ASSY,CLUTCH RELEASE Price: $103.66 |
| 26 |
09134-06010 |
SCREW (6X25) Price: $3.80 |
| 28 |
09443-09050 |
SPRING Price: $4.97 |
| 29 |
07120-0620A |
BOLT Price: $3.20 |
