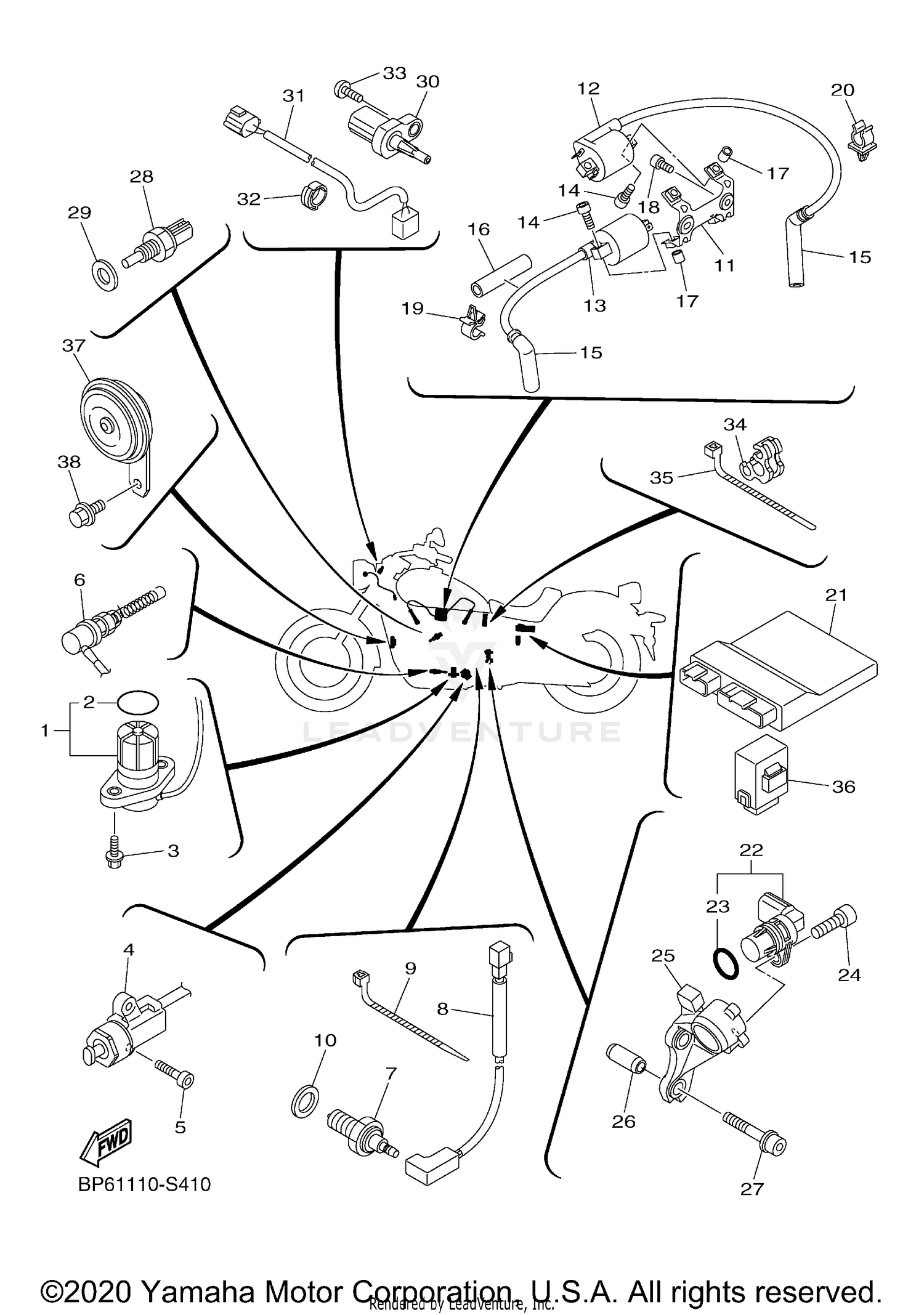

| Ref | Part Number | Description |
|---|
| 1 |
5S7-85720-00-00 |
OIL LEVEL GAUGE ASSY Price: $120.99 |
| 2 |
5VY-8A8E0-00-00 |
O-RING Price: $15.49 |
| 3 |
95022-06016-00 |
BOLT, FLANGE Price: $3.90 |
| 4 |
1TP-82566-01-00 |
SWITCH, SIDE STAND This part replaces 1TP-82566-00-00. Price: $75.99 |
| 5 |
91317-05016-00 |
BOLT, HEX. SOCKET HEAD Price: $3.55 |
| 6 |
BP6-82530-01-00 |
STOP SWITCH ASSY This part replaces BP6-82530-00-00. Price: $45.99 |
| 7 |
3GB-82540-01-00 |
NEUTRAL SWITCH ASSY Price: $63.99 |
| 8 |
5S7-82509-10-00 |
WIRE, SUB LEAD Price: $7.99 |
| 10 |
90430-10148-00 |
GASKET Price: $5.99 |
| 11 |
3D8-21359-01-00 |
BRACKET, COIL Price: $31.99 |
| 12 |
1TP-82310-03-00 |
IGNITION COIL ASSY This part replaces 1TP-82310-02-00. Price: $38.99 |
| 13 |
1S4-82310-03-00 |
IGNITION COIL ASSY This part replaces 1S4-82310-02-00. Price: $56.99 |
| 14 |
91314-06020-00 |
BOLT, HEXAGON SOCKET HEAD This part replaces 90110-06175-00. Price: $2.65 |
| 15 |
5S7-82370-00-00 |
PLUG CAP ASSY Price: $78.99 |
| 16 |
90445-14020-00 |
HOSE (L65) Price: $3.80 |
| 17 |
90445-07048-00 |
HOSE Price: $0.80 |
| 18 |
91312-06008-00 |
BOLT, HEXAGON SOCKET HEAD Price: $0.40 |
| 19 |
90464-09129-00 |
CLAMP Price: $2.22 |
| 20 |
90464-09008-00 |
CLAMP Price: $3.20 |
| 21 |
1TP-8591A-00-00 |
ENGINE CONTROL UNIT ASSY Price: $897.99 |
| 22 |
1TP-83755-00-00 |
SENSOR, SPEED Price: $84.99 |
| 23 |
4D9-81168-00-00 |
O-RING Price: $7.49 |
| 24 |
91312-06014-00 |
BOLT This part replaces 90110-06168-00. Price: $5.49 |
| 25 |
1TP-81948-00-00 |
BRACKET Price: $49.99 |
| 26 |
99530-08012-00 |
PIN, DOWEL Price: $6.60 |
| 27 |
90110-06300-00 |
BOLT, HEXAGON SOCKET HEAD Price: $3.40 |
| 28 |
52B-H3591-00-00 |
THERMO UNIT This part replaces 4P9-83591-00-00. Price: $37.99 |
| 29 |
90201-10128-00 |
WASHER, PLATE Price: $4.05 |
| 30 |
5YU-85886-00-00 |
SENSOR, AIR TEMPERATURE Price: $37.99 |
| 31 |
B33-82509-00-00 |
WIRE, SUB LEAD Price: $15.49 |
| 32 |
90464-13227-00 |
CLAMP Price: $8.49 |
| 33 |
98517-05012-00 |
SCREW, PAN HEAD This part replaces 98502-05012-00. Price: $5.49 |
| 34 |
1TP-81443-00-00 |
CLAMP, LEAD 1 Price: $4.85 |
| 35 |
90464-20258-00 |
CLAMP Price: $5.60 |
| 36 |
5S7-83350-01-00 |
FLASHER RELAY ASSY Price: $107.99 |
| 37 |
2S3-83371-00-00 |
HORN Price: $65.99 |
