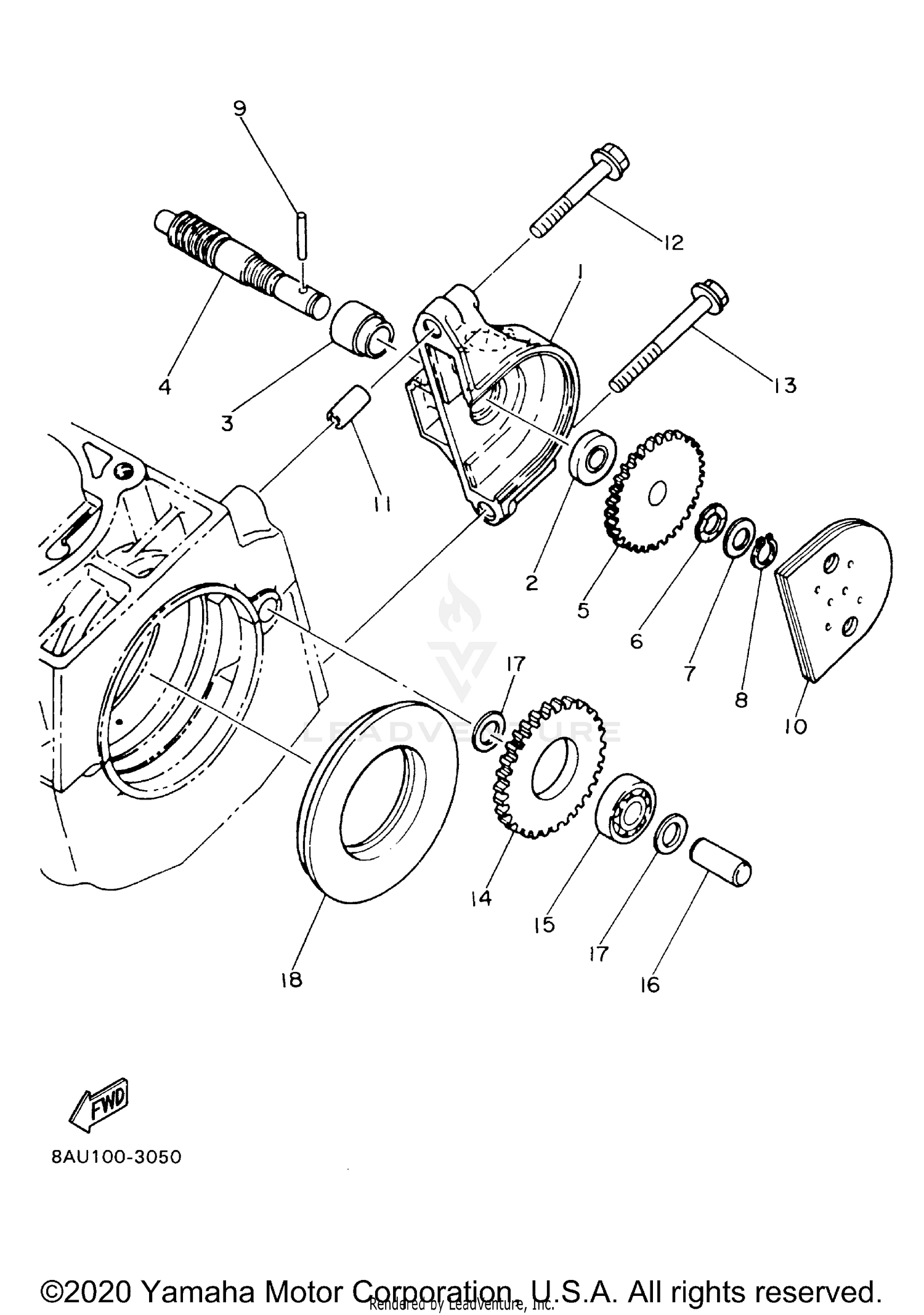

| Ref | Part Number | Description |
|---|
| 1 |
8AT-15416-00-00 |
COVER, OIL PUMP Price: $60.99 |
| 2 |
93101-10090-00 |
OIL SEAL This part replaces 93101-10001-00. Price: $9.49 |
| 3 |
821-13176-00-00 |
METAL, WORM SHAFT OUTER Price: $7.99 |
| 4 |
866-13175-00-00 |
SHAFT, WORM Price: $31.99 |
| 5 |
821-13188-00-00 |
GEAR, DRIVE (32T) Price: $34.99 |
| 6 |
90206-11016-00 |
WASHER, WAVE Price: $15.49 |
| 7 |
137-13148-00-00 |
PLATE, CAM THRUST Price: $3.85 |
| 8 |
99009-10400-00 |
CIRCLIP Price: $5.49 |
| 9 |
93603-22028-00 |
PIN, DOWEL Price: $4.05 |
| 10 |
8K4-15426-00-00 |
COVER, OIL PUMP 2 Price: $11.49 |
| 11 |
91808-16023-00 |
PIN, DOWEL This part replaces 99530-08016-00. Price: $7.99 |
| 12 |
95022-06040-00 |
BOLT, FLANGE Price: $3.70 |
| 13 |
95022-06055-00 |
BOLT, FLANGE Price: $1.40 |
| 14 |
8H8-13179-00-00 |
GEAR, IDLE (34T) Price: $36.99 |
| 15 |
93306-00002-00 |
BEARING (B6000RS) Price: $36.99 |
| 16 |
8G8-13342-00-00 |
SHAFT, IDLE GEAR Price: $4.45 |
| 17 |
90201-10119-00 |
WASHER, PLATE Price: $1.00 |
