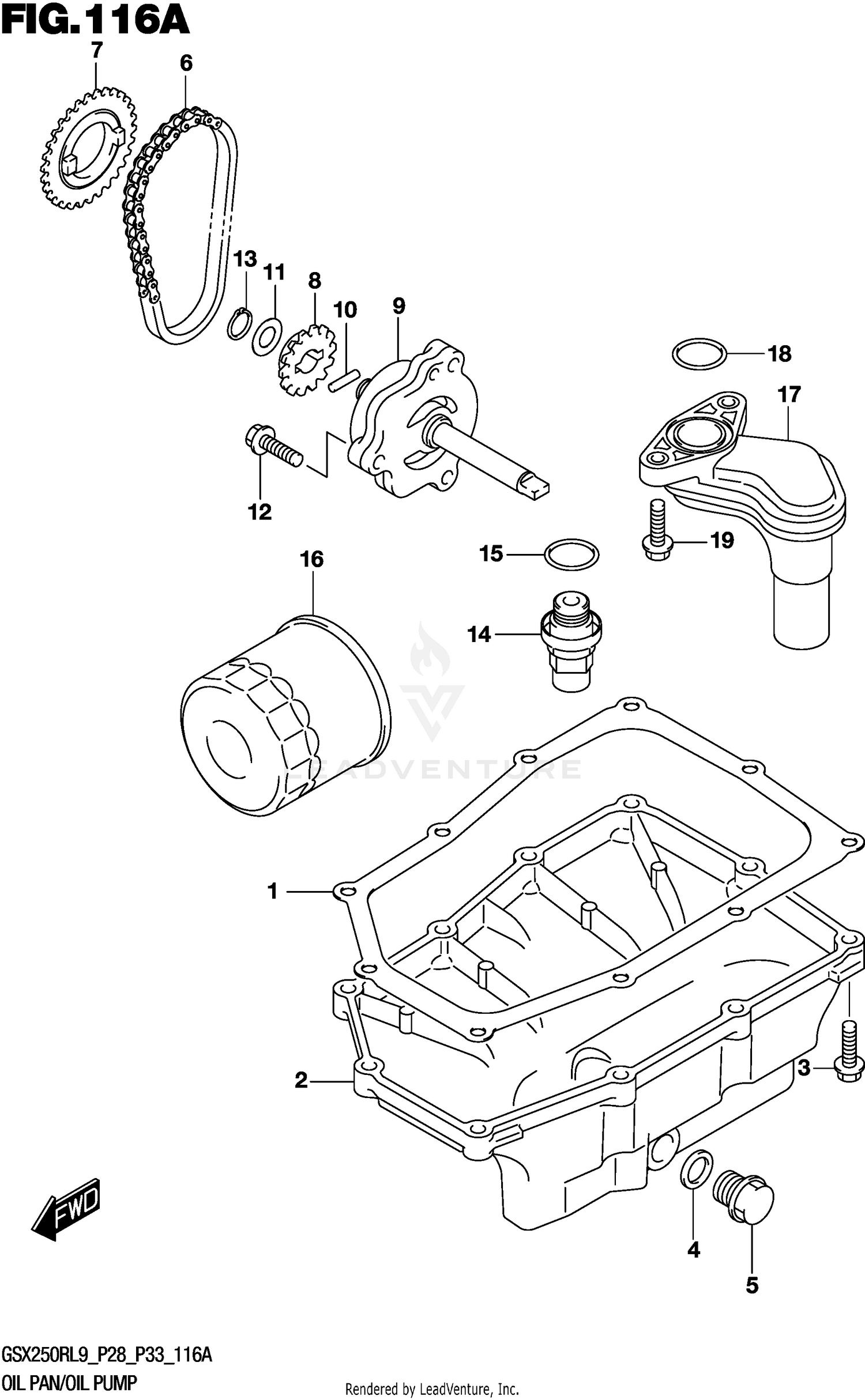

| Ref | Part Number | Description |
|---|
| 2 |
11511-48H00 |
PAN, OIL Price: $67.74 |
| 3 |
01547-0625A |
BOLT Price: $2.45 |
| 4 |
09168-14L01 |
GASKET (13.8X18.8X4.8) Price: $1.29 |
| 6 |
16310-48H00 |
CHAIN ASSY, OIL PUMP DRIVE Price: $9.82 |
| 7 |
16321-48H00 |
SPROCKET, OIL PUMP DRIVE Price: $14.96 |
| 8 |
16331-48H00 |
SPROCKET, OIL PUMP DRIVEN Price: $8.24 |
| 9 |
16400-20K00 |
PUMP ASSY, OIL Price: $61.55 |
| 10 |
16421-48H00 |
PIN, OIL PUMP Price: $2.06 |
| 11 |
16422-48H00 |
WASHER, PUMP DRIVEN GEAR Price: $3.53 |
| 12 |
01547-0625A |
BOLT Price: $2.45 |
| 13 |
08331-31109 |
CIRCLIP Price: $2.15 |
| 14 |
16440-48H00 |
VALVE ASSY, OIL RELIEF Price: $58.82 |
| 15 |
09168-16010 |
GASKET (16X22X2) Price: $1.83 |
| 16 |
16510-07J10 |
FILTER ASSY, ENGINE OIL This part replaces 16510-07J00. Price: $16.18 |
| 17 |
16520-48H00 |
STRAINER, ENGINE OIL Price: $20.32 |
| 18 |
09280-23L01 |
O RING (D:2.4,ID22.8) Price: $3.64 |
