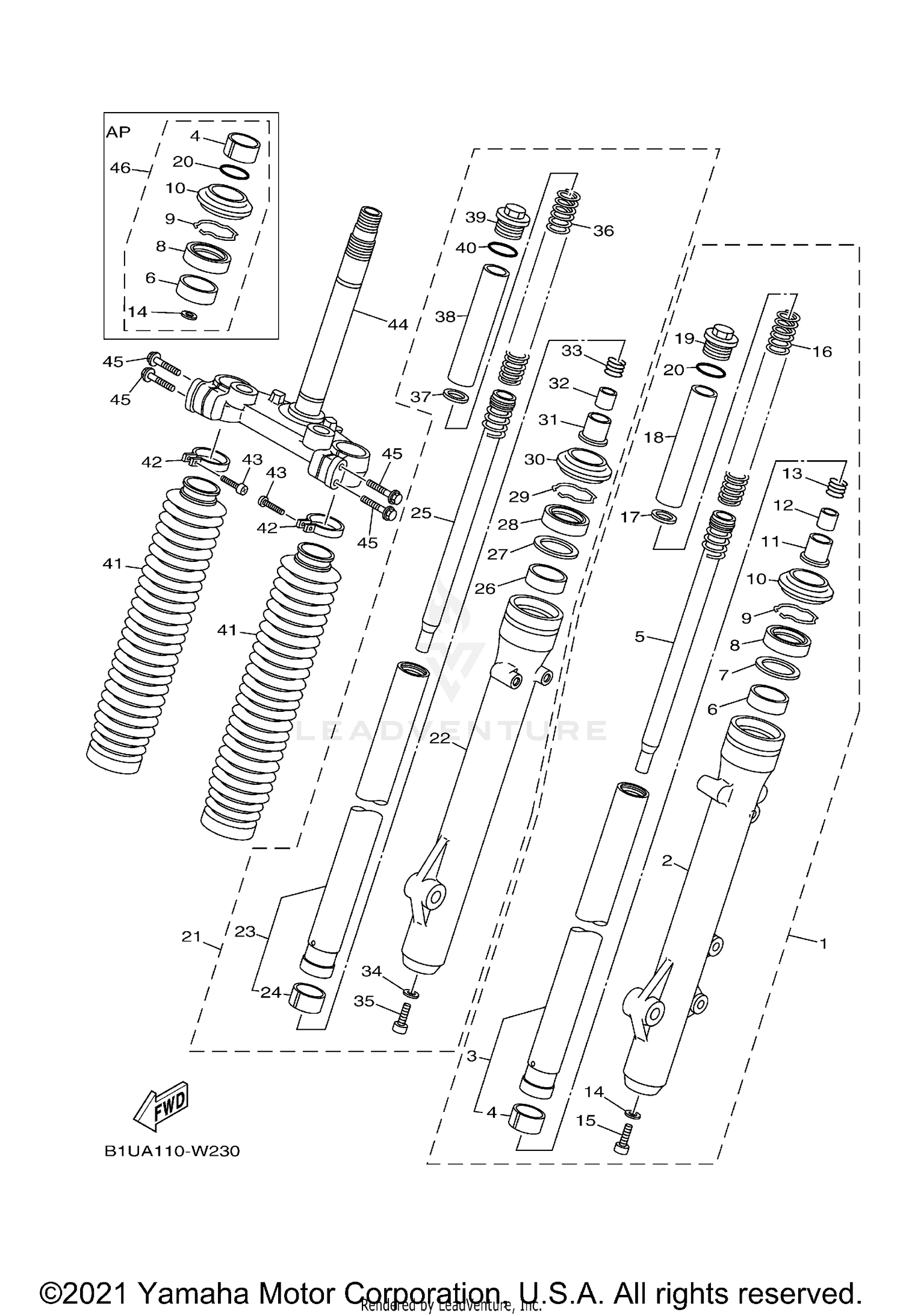

| Ref | Part Number | Description |
|---|
| 1 |
3C5-23102-20-00 |
FRONT FORK ASSY (L.H) Price: $528.99 |
| 2 |
3C5-23126-10-00 |
TUBE, OUTER (LEFT) Price: $280.99 |
| 3 |
3C5-23110-00-00 |
INNER TUBE COMP. 1 Price: $279.99 |
| 4 |
5JX-23171-00-00 |
PISTON, FRONT FORK Price: $24.99 |
| 5 |
3C5-23170-00-00 |
CYLINDER COMP., FRONT FORK Price: $103.99 |
| 6 |
5JX-23125-00-00 |
METAL, SLIDE 1 Price: $19.99 |
| 7 |
5K5-23149-00-00 |
WASHER, SPRING UPPER Price: $8.49 |
| 8 |
5JX-23145-00-00 |
OIL SEAL Price: $16.49 |
| 9 |
4A1-23156-00-00 |
CLIP, OIL SEAL Price: $5.99 |
| 10 |
5JX-23144-00-00 |
SEAL, DUST Price: $17.99 |
| 11 |
5XT-23173-00-00 |
SPINDLE, TAPER Price: $39.99 |
| 12 |
5XT-23363-00-00 |
COLLAR 1 Price: $8.49 |
| 13 |
5XT-23151-00-00 |
SPRING, REBOUND Price: $7.49 |
| 14 |
1N1-23158-00-00 |
GASKET Price: $7.49 |
| 15 |
91314-08025-00 |
BOLT, HEXAGON SOCKET HEAD This part replaces 91311-08025-00. Price: $9.49 |
| 16 |
3C5-23141-00-00 |
SPRING, FRONT FORK Price: $47.99 |
| 17 |
4FY-23149-00-00 |
WASHER, SPRING UPPER Price: $7.99 |
| 18 |
3C5-23118-00-00 |
SPACER Price: $12.49 |
| 19 |
5JX-23111-00-00 |
BOLT, CAP Price: $41.99 |
| 20 |
240-23114-00-00 |
GASKET Price: $15.49 |
| 21 |
3C5-23103-20-00 |
FRONT FORK ASSY (R.H) Price: $794.99 |
| 22 |
3C5-23136-10-00 |
TUBE, OUTER (RIGHT) Price: $284.99 |
| 23 |
3C5-23110-00-00 |
INNER TUBE COMP. 1 Price: $279.99 |
| 24 |
5JX-23171-00-00 |
PISTON, FRONT FORK Price: $24.99 |
| 25 |
3C5-23170-00-00 |
CYLINDER COMP., FRONT FORK Price: $103.99 |
| 26 |
5JX-23125-00-00 |
METAL, SLIDE 1 Price: $19.99 |
| 27 |
5K5-23149-00-00 |
WASHER, SPRING UPPER Price: $8.49 |
| 28 |
5JX-23145-00-00 |
OIL SEAL Price: $16.49 |
| 29 |
4A1-23156-00-00 |
CLIP, OIL SEAL Price: $5.99 |
| 30 |
5JX-23144-00-00 |
SEAL, DUST Price: $17.99 |
| 31 |
5XT-23173-00-00 |
SPINDLE, TAPER Price: $39.99 |
| 32 |
5XT-23363-00-00 |
COLLAR 1 Price: $8.49 |
| 33 |
5XT-23151-00-00 |
SPRING, REBOUND Price: $7.49 |
| 34 |
1N1-23158-00-00 |
GASKET Price: $7.49 |
| 35 |
91314-08025-00 |
BOLT, HEXAGON SOCKET HEAD This part replaces 91311-08025-00. Price: $9.49 |
| 36 |
3C5-23141-00-00 |
SPRING, FRONT FORK Price: $47.99 |
| 37 |
4FY-23149-00-00 |
WASHER, SPRING UPPER Price: $7.99 |
| 38 |
3C5-23118-00-00 |
SPACER Price: $12.49 |
| 39 |
5JX-23111-00-00 |
BOLT, CAP Price: $41.99 |
| 40 |
240-23114-00-00 |
GASKET Price: $15.49 |
| 41 |
3C5-23191-10-00 |
BOOT Price: $77.99 |
| 42 |
3C5-23192-00-00 |
BAND Price: $17.99 |
| 43 |
98507-04018-00 |
SCREW, PAN HEAD This part replaces 98506-04016-00. Price: $2.35 |
| 44 |
3C5-23340-10-00 |
UNDER BRACKET COMP. Price: $434.99 |
| 45 |
5RS-23346-00-00 |
BOLT 1 Price: $8.49 |
