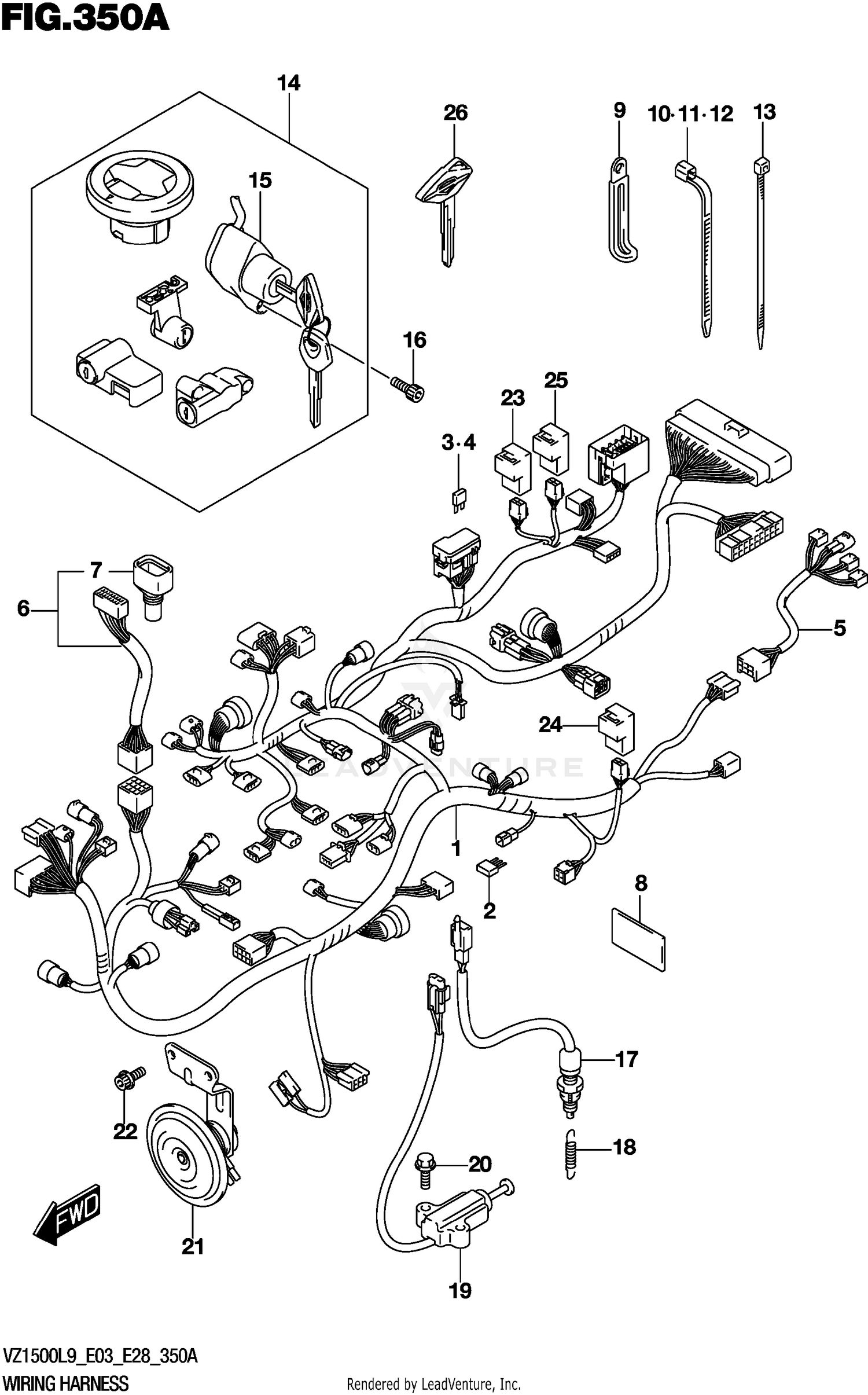

WIRING HARNESS (E03,E28)
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 36610-40HF0 | HARNESS Price: Call Us |
| 5 | 36858-40H00 | WIRE Price: $63.13 |
| 6 | 36859-40H00 | WIRE Price: $54.77 |
| 8 | 33652-26E00 | PROTECTOR,20X90X1.0 (20X90X1. Price: $4.01 |
| 9 | 09404-06429 | CLAMP (L:45) Price: $2.20 |
| 10 | 09407-14403 | CLAMP (L:125) Price: $2.72 |
| 11 | 09407-19401 | CLAMP (L:190) Price: $3.22 |
| 12 | 09407-10403 | CLAMP (L:95) Price: $1.58 |
| 13 | 09407-14407 | CLAMP (L:145) Price: $3.70 |
| 14 | 37000-40880 | LOCK SET Price: Call Us |
| 15 | 37110-40H32 | SWITCH ASSY,IGN This part replaces 37110-40H31. Price: $158.88 |
| 16 | 07130-0616B | BOLT This part replaces 07130-0616A. Price: $2.87 |
| 17 | 37740-19F00 | SWITCH ASSY Price: $33.79 |
| 18 | 09443-06077 | SPRING Price: $5.89 |
| 19 | 37840-22H01 | SWITCH ASSY,SID This part replaces 37840-22H00. Price: $91.97 |
| 20 | 01547-0620A | BOLT Price: $2.45 |
| 21 | 38500-40H00 | HORN ASSY Price: $94.73 |
| 22 | 07120-0612B | BOLT Price: $3.76 |
