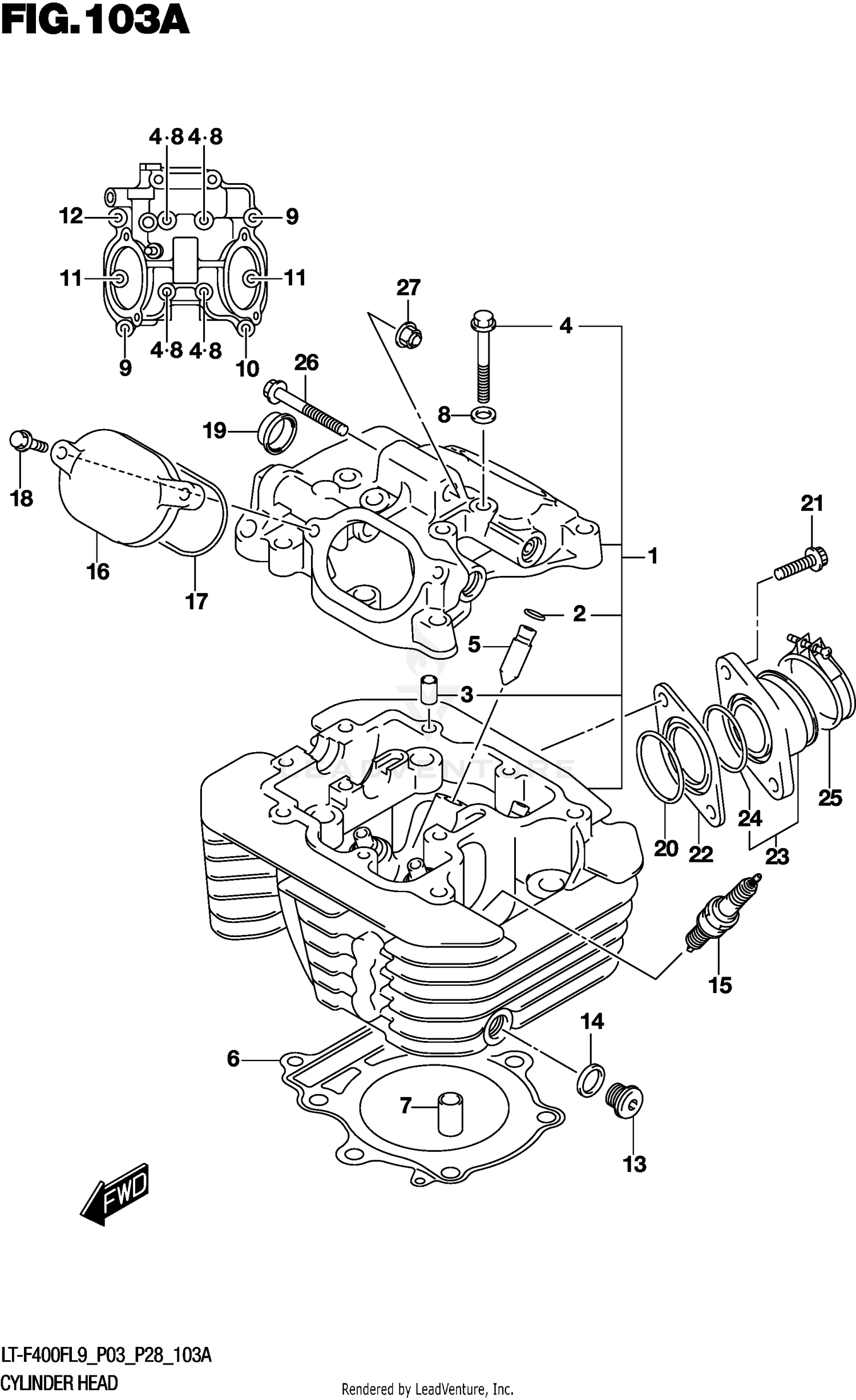

CYLINDER HEAD
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 11100-27H20 | HEAD ASSY, CYLINDER Price: $1,243.96 |
| 7 | 09206-13004 | PIN (13X22) Price: $2.85 |
| 8 | 09168-06023 | GASKET (5.8X13X1.2) Price: $2.45 |
| 9 | 09103-06108 | BOLT (6X35) Price: $2.24 |
| 10 | 09103-06026 | BOLT (6X39) Price: $2.10 |
| 11 | 01550-0625A | BOLT (6X25) Price: $2.37 |
| 12 | 01550-0630A | BOLT (L:30) Price: $2.79 |
| 13 | 09248-12004 | PLUG,L:12 (L:12) Price: $8.36 |
| 14 | 09168-12002 | GASKET (12.1X16.2X3.7) Price: $1.92 |
| 16 | 11175-47D00 | CAP,INSPECTION Price: $26.05 |
| 18 | 01550-0620A | BOLT (6X20) Price: $2.37 |
| 19 | 09241-25007 | PLUG (OD:30) Price: $7.52 |
| 20 | 09280-40020 | O-RING (D:2.4,ID:39.7) This part replaces 09280-40010. Price: $3.49 |
| 21 | 07120-0625A | BOLT Price: $3.02 |
| 22 | 13117-38F01 | INSULATOR, INTAKE PIPE Price: $11.74 |
| 23 | 13101-27H01 | PIPE ASSY,INTAKE This part replaces 13101-27H00. Price: $58.24 |
| 25 | 09402-54208 | CLAMP Price: $6.87 |
