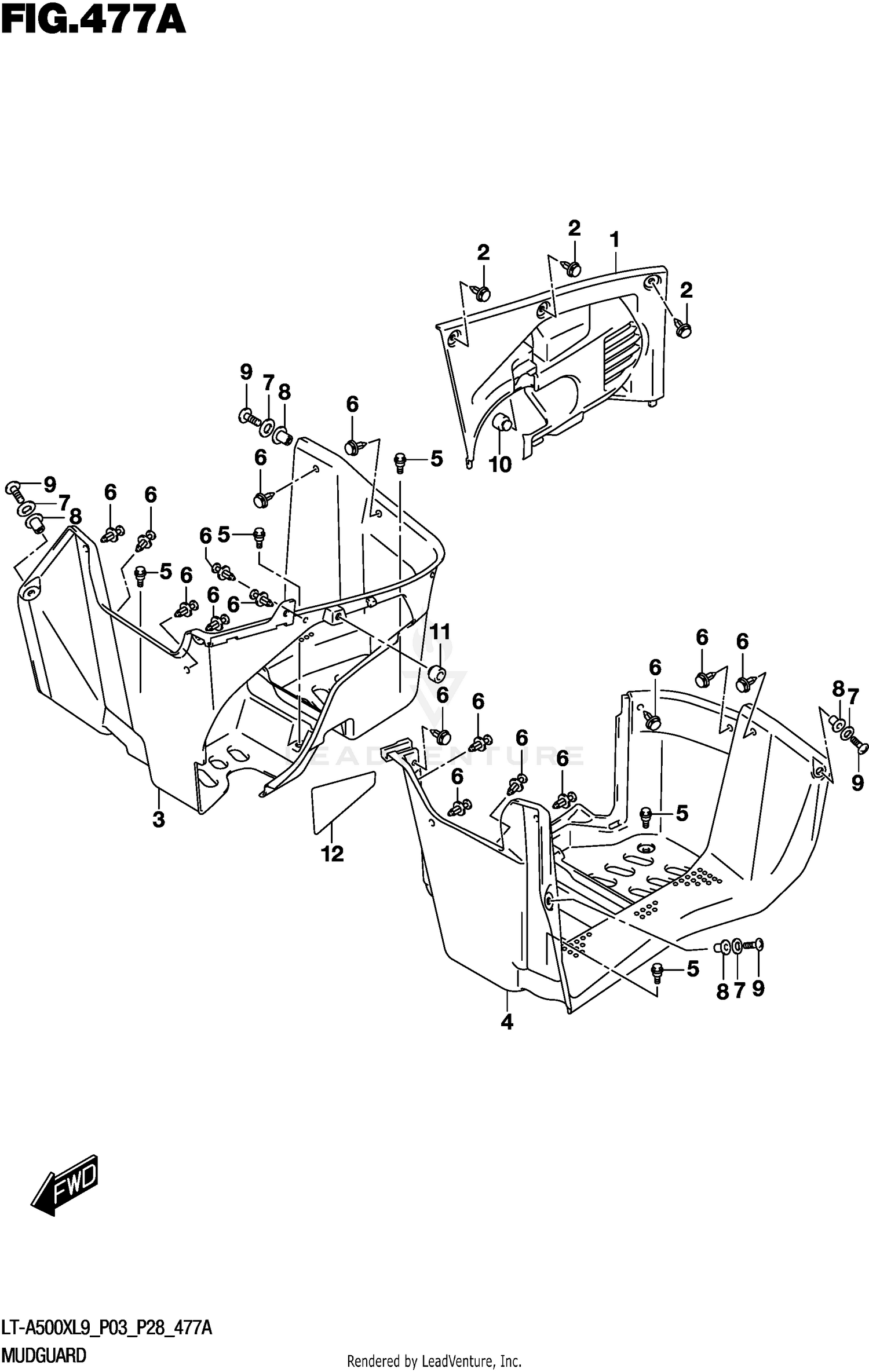

MUDGUARD
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 63342-34K01-291 | LID,FOOTREST GU This part replaces 63342-34K00. Price: $97.71 |
| 2 | 09409-08008 | CLIP Price: $1.97 |
| 3 | 63331-34K02-291 | MUDGUARD,FOOTRE This part replaces 63331-34K00. Price: $37.47 |
| 4 | 63341-34K02-291 | MUDGUARD,FOOTRE This part replaces 63341-34K00. Price: $70.91 |
| 5 | 09111-06088 | BOLT (6X13.5) Price: $2.46 |
| 6 | 09409-08008 | CLIP Price: $1.97 |
| 7 | 09160-05046 | WASHER (5.5X20X1.4) Price: $2.22 |
| 8 | 09159-05019 | NUT (M5) Price: $8.69 |
| 9 | 02142-0520B | SCREW Price: $2.15 |
| 10 | 09321-10019 | CUSHION Price: $5.96 |
| 11 | 09321-10019 | CUSHION Price: $5.96 |
