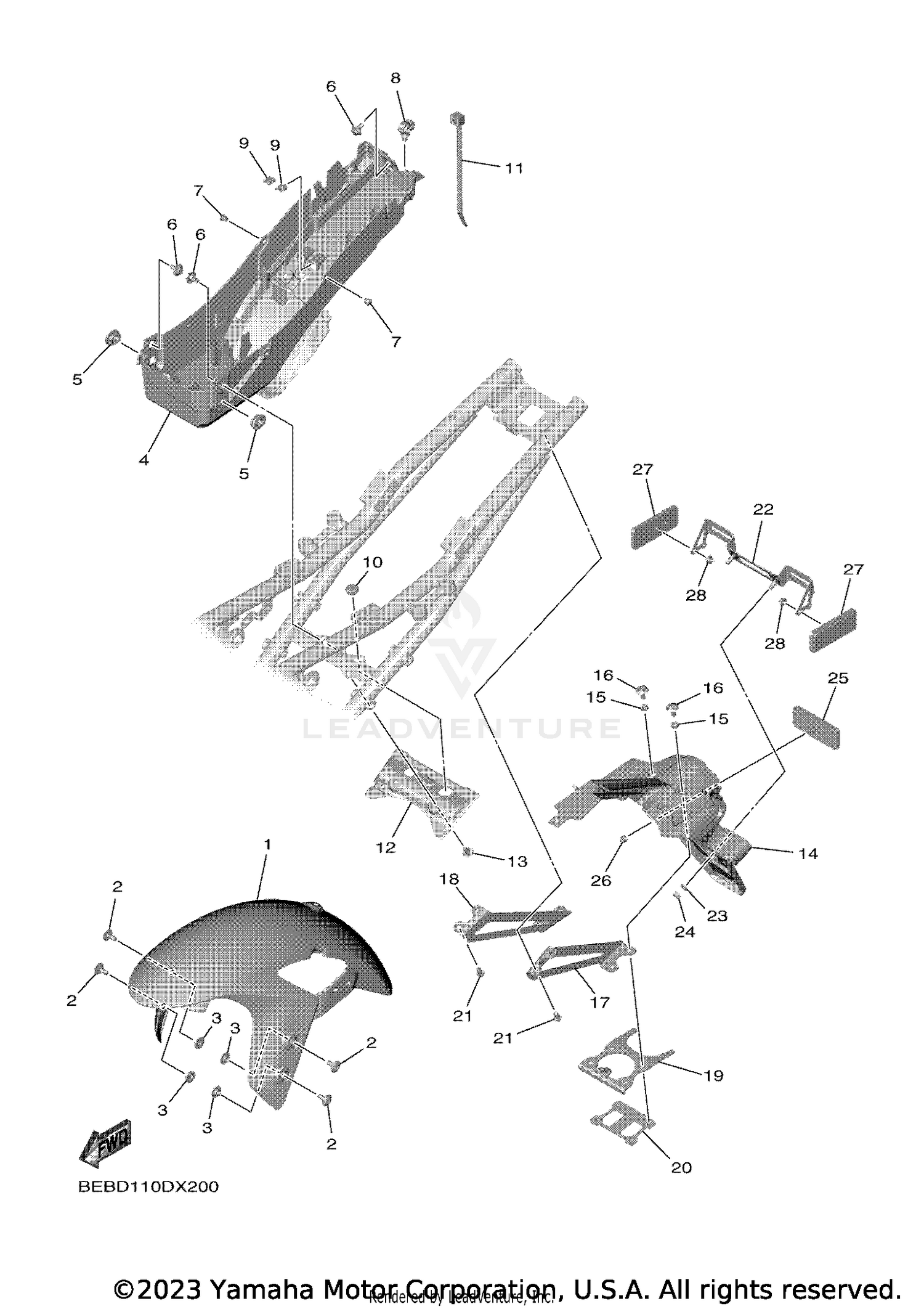

| Ref | Part Number | Description |
|---|
| 2 |
90111-06196-00 |
BOLT,HEX. SOCKET B Price: $2.30 |
| 3 |
90387-07717-00 |
COLLAR Price: $9.49 |
| 4 |
BEB-8212B-00-00 |
BOX, BATTERY 1 Price: $49.99 |
| 5 |
90480-01559-00 |
GROMMET Price: $6.49 |
| 6 |
90109-06202-00 |
BOLT Price: $3.10 |
| 7 |
90338-07180-00 |
PLUG This part replaces 90338-06018-00. Price: $8.49 |
| 8 |
90464-18002-00 |
CLAMP Price: $9.49 |
| 9 |
90183-04039-00 |
NUT, spring Price: $8.49 |
| 10 |
90480-14100-00 |
GROMMET Price: $9.49 |
| 11 |
90464-15152-00 |
CLAMP This part replaces 90465-13275-00. Price: $6.49 |
| 12 |
1WS-21642-01-00 |
GUARD, FLAP Price: $5.99 |
| 13 |
90269-06002-00 |
RIVET Price: $9.49 |
| 14 |
BEB-21629-00-00 |
GUARD, MUD Price: $76.99 |
| 15 |
90387-06106-00 |
COLLAR This part replaces 90387-06372-00. Price: $8.49 |
| 16 |
90111-06061-00 |
BOLT, HEX. SOCKET BUTTON This part replaces 90111-06089-00. Price: $9.49 |
| 17 |
BEB-2164F-00-00 |
STAY 1 Price: $26.99 |
| 18 |
BEB-2164G-00-00 |
STAY 2 Price: $25.99 |
| 19 |
BAT-21682-00-00 |
STAY, PLATE Price: $15.49 |
| 20 |
BAT-2161G-00-00 |
BRACKET 6 Price: $10.49 |
| 21 |
95E32-06012-00 |
BOLT, FLANGE DEEP RECESS This part replaces 90105-06226-00. Price: $1.10 |
| 22 |
2RC-84751-00-00 |
BRACKET, LICENSE Price: $35.99 |
| 23 |
92990-06600-00 |
WASHER, PLATE This part replaces 92902-06600-00. Price: $2.85 |
| 24 |
95617-06100-00 |
NUT, U This part replaces 95602-06100-00. Price: $2.90 |
| 25 |
3Y6-85130-02-00 |
REAR REFLECTOR ASSY Price: $30.99 |
| 26 |
95607-05200-00 |
NUT, U FLANGE This part replaces 95602-05200-00. Price: $10.49 |
| 27 |
3Y6-85130-02-00 |
REAR REFLECTOR ASSY Price: $30.99 |
