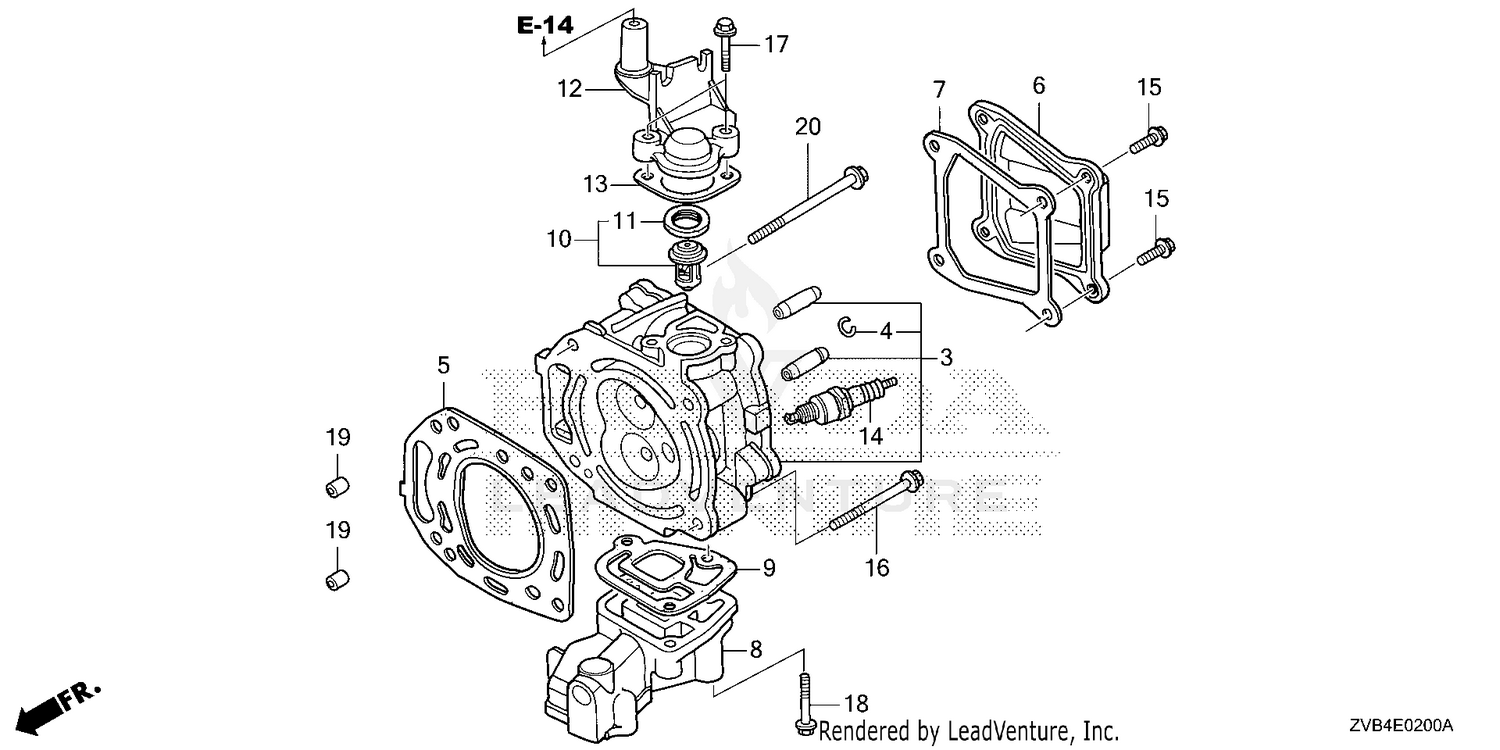

| Ref | Part Number | Description |
|---|
| 1 |
12204-Z1T-305 |
SEE PART DETAILS - SUP; GUIDE, VALVE (OVER SIZE) Price: $7.58 |
| 2 |
12205-ZE1-315 |
GUIDE, EX. VALVE (OVER SIZE) This part replaces 12205-Z1T-305. Price: $9.14 |
| 3 |
12210-ZVD-000ZA |
CYLINDER HEAD *NH8* (DARK GRAY) Price: $173.91 |
| 4 |
12216-ZE5-300 |
CLIP, VALVE GUIDE Use from Engine SN 1231803. Price: $1.74 |
| 5 |
12251-ZVD-000 |
GASKET, CYLINDER HEAD Price: $39.32 |
| 6 |
12311-ZV1-010 |
SEE PART DETAILS - PRI; COVER, HEAD Price: $16.00 |
| 7 |
12391-ZVD-000 |
GASKET, HEAD COVER Price: $5.32 |
| 8 |
18110-ZVD-000ZA |
MANIFOLD, EX. *NH8* (DARK GRAY) Price: $96.22 |
| 10 |
19300-881-761 |
SEE PART DETAILS - PRI; THERMOSTAT ASSY. Price: $55.12 |
| 11 |
19302-921-003 |
RUBBER, THERMOSTAT Price: $10.04 |
| 12 |
19310-ZVD-000ZA |
COVER, THERMOSTAT *NH8* (DARK GRAY) Price: $78.76 |
| 13 |
19351-ZVD-000 |
GASKET, THERMOSTAT COVER Price: $2.58 |
| 14 |
31916-ZVD-003 |
SPARK PLUG (BKR6E-E) Price: $16.48 |
| 15 |
90013-ZVD-000 |
BOLT, FLANGE (6X12) Price: $2.22 |
| 16 |
90018-ZVD-000 |
BOLT, FLANGE (8X60) Price: $3.74 |
| 17 |
90030-ZY3-000 |
BOLT, FLANGE (6X22) Price: $1.26 |
| 18 |
90031-ZY3-000 |
BOLT, FLANGE (6X32) Price: $1.42 |
| 19 |
94301-10160 |
SEE PART DETAILS - PRI; PIN A, DOWEL (10X16) (Honda Code 0058206). Price: $3.10 |
