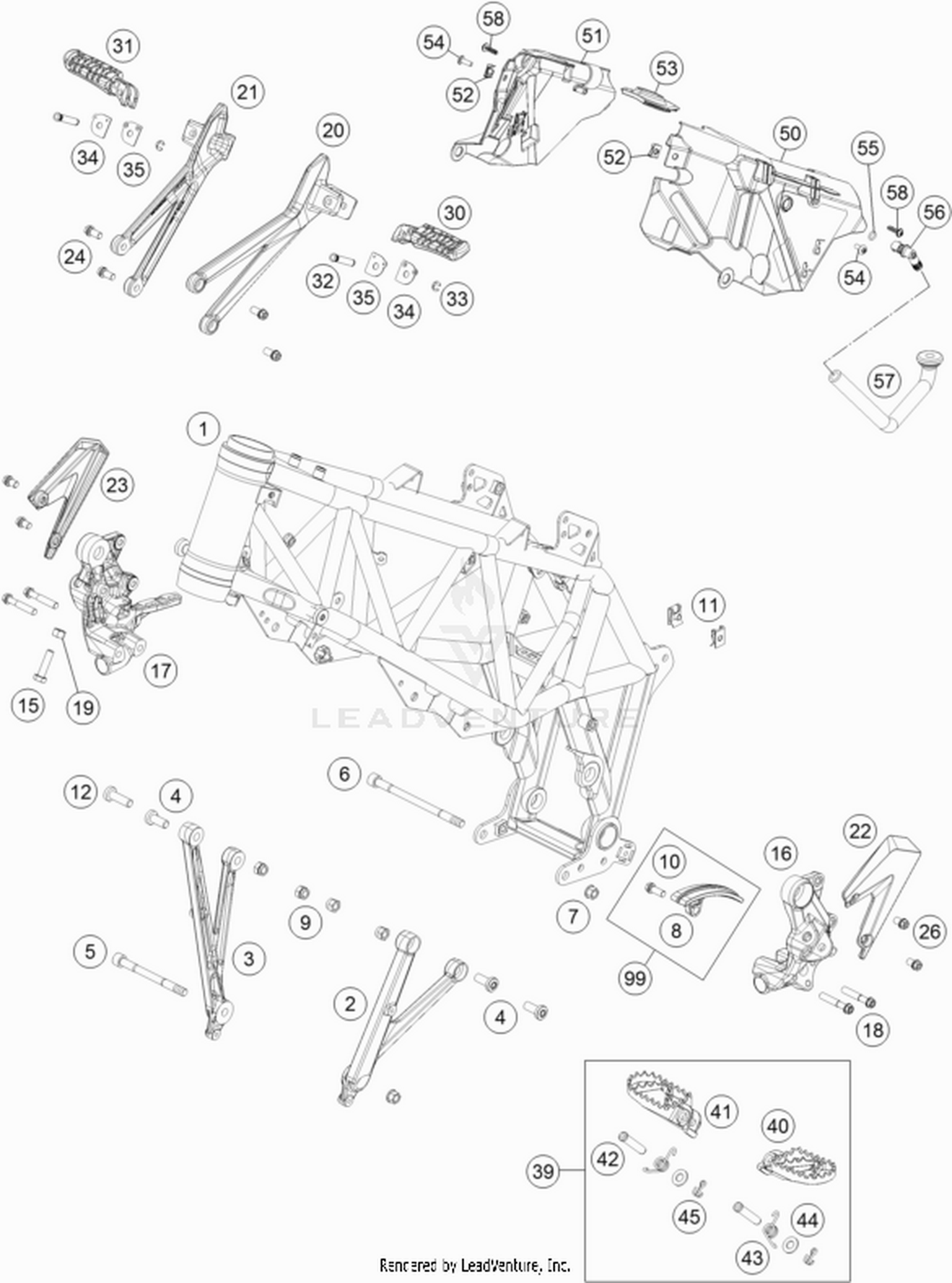

| Ref | Part Number | Description |
|---|
| 1 |
7650300130004 |
FRAME ''765NA'' ORANGE Price: Call Us |
| 2 |
7650300500033 |
ENGINE SUPPORT L/S BLACK Price: Call Us |
| 3 |
7650300600033 |
ENGINE SUPPORT R/S BLACK Price: Call Us |
| 4 |
0035100249 |
AH collar screw M10x24 ISA45 Price: Call Us |
| 5 |
75003015000 |
SPECIAL SCREW M10X115 ISK8 07 Price: Call Us |
| 6 |
75003014000 |
SPECIAL SCREW M10X152 ISK8 07 Price: Call Us |
| 7 |
55530044000 |
Collar nut M10-SW13 ZnNi This part replaces 54630044000. Price: Call Us |
| 8 |
76504067000 |
CHAIN SLID. GUARD 08 Price: Call Us |
| 9 |
54310086100 |
SELF LOCKING NUT M10 CU WS=14 Price: Call Us |
| 10 |
0025080206 |
HH collar screw M8x20 Price: Call Us |
| 11 |
54603048500 |
RANGE CHANGE METAL NUT M4 Price: Call Us |
| 12 |
0035100309S |
AH collar screw M10x30 ISA45 Price: Call Us |
| 15 |
0933050203 |
HH SCREW DIN933 M5x20 Price: Call Us |
| 16 |
7650303804401 |
FOOT REST BRACKET L/S Price: Call Us |
| 17 |
7690303904401 |
Footpeg bracket right cmpl. This part replaces 7650303924401. Price: Call Us |
| 18 |
0025080456 |
HH collar screw M8x45 TX40 Price: Call Us |
| 19 |
0934050003 |
HEXAGON NUT DIN0934-M 5 Price: Call Us |
| 20 |
7690304800001 |
Rear footpeg bracket left This part replaces 7650304800001. Price: Call Us |
| 21 |
7650304900001 |
FOOT REST BRACKET REAR R/S Price: Call Us |
| 22 |
76503038150 |
HEEL PROTECTOR LS 09 Price: Call Us |
| 23 |
76503039050 |
HEEL PROTECTOR RS 08 Price: Call Us |
| 24 |
0025080166 |
HH COLLAR SCREW M8X16 TX40 Price: Call Us |
| 26 |
0025080126 |
HH collar screw M8x12 TX40 Price: Call Us |
| 30 |
60003050000 |
FOOTREST CPL. L/S REAR 03 Price: Call Us |
| 31 |
60003051000 |
Footrest cmpl. r/s rear 03 Price: Call Us |
| 32 |
60003044000 |
BOLT FOR FOOTREST REAR 03 Price: Call Us |
| 34 |
60003052000 |
ENGAGE PANEL FOOTREST R/S 03 Price: Call Us |
| 35 |
60003152000 |
ENGAGE PANEL FOOTREST L/S 03 Price: Call Us |
| 39 |
78003040033 |
FOOTREST L/S + R/S CPL. 09 Price: Call Us |
| 40 |
78003040050 |
FOOTREST L/S 08 Price: Call Us |
| 41 |
78003041050 |
FOOTREST R/S 08 Price: Call Us |
| 42 |
54803044000 |
PIN FOR FOOT PED 51.5X9.8 MM Price: Call Us |
| 43 |
54603041000 |
FOOTREST SPRING L/S R/S Price: Call Us |
| 45 |
0094032250 |
PIN DIN 0094-3.2X25 NIRO This part replaces 0094032253. Price: Call Us |
| 50 |
76503083200 |
COVER FRAME L/S Price: Call Us |
| 51 |
76503084200 |
COVER FRAME R/S Price: Call Us |
| 53 |
76503085000 |
COVER FOR IGNITION LOCK Price: Call Us |
| 54 |
78105081010 |
SCREW TORX M5X10 Price: Call Us |
| 55 |
0770080020 |
O-RING 8X2 SILICONE Price: Call Us |
| 56 |
60038082000 |
ANGLE CONNECTOR LC8 03 Price: Call Us |
| 57 |
76530087100 |
VENTILATION OIL SEPARATOR FOAM Price: Call Us |
| 58 |
0081050181 |
SCREW FOR PLASTIC K50X18 T20 Price: Call Us |
