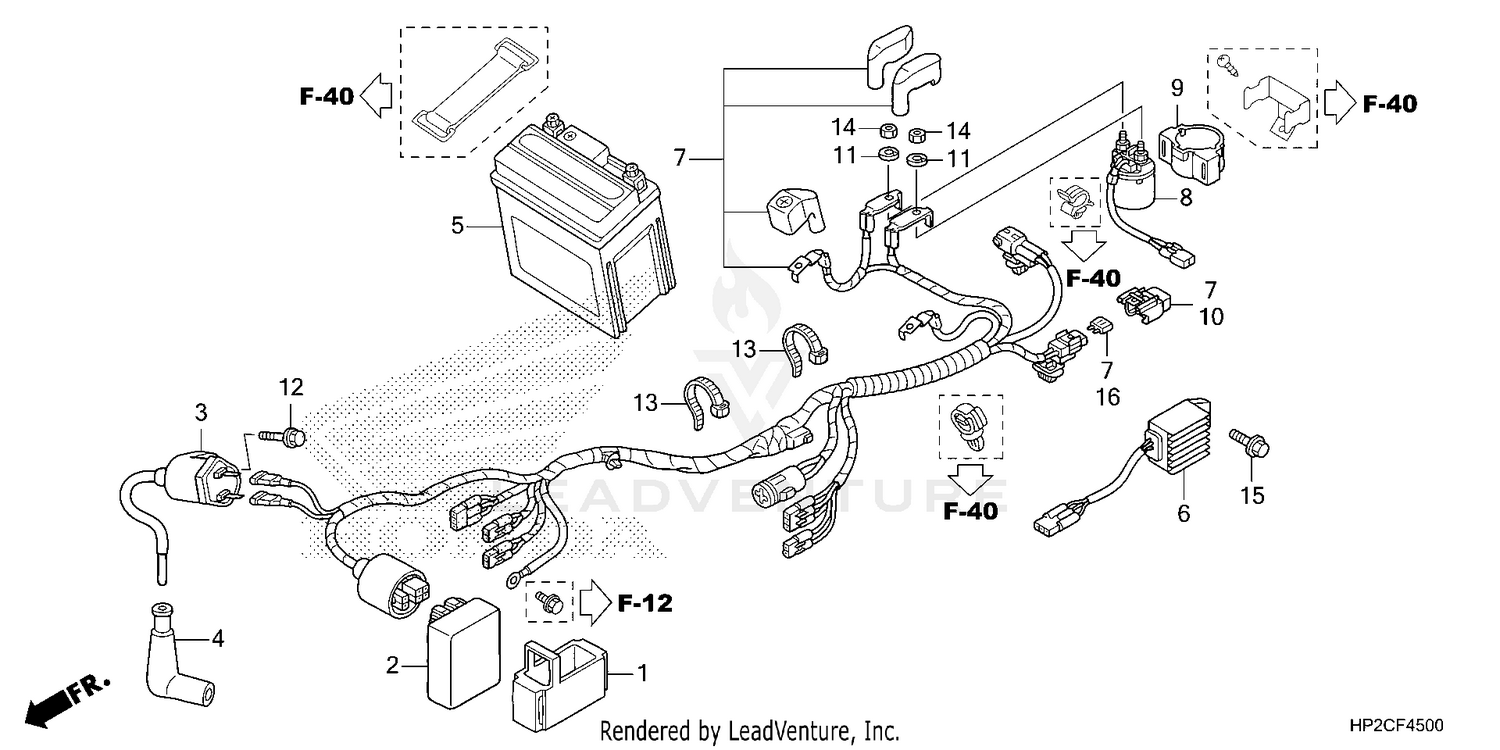

| Ref | Part Number | Description |
|---|
| 1 |
30401-HA7-670 |
CUSHION, IGNITION CONTROL MODULE (CDI) Price: $12.11 |
| 2 |
30410-HP2-671 |
MODULE, IGNITION CONTROL (CDI) Price: $145.38 |
| 3 |
30510-MN1-680 |
COIL, IGNITION This part replaces 30510-GAG-000. Price: $93.84 |
| 4 |
30700-GB3-602 |
CAP ASSY., NOISE SUPPRESSOR Price: $24.73 |
| 5 |
31500-KY4-905AH |
BATTERY (YTX5L-BS) (YUASA) (MSDS) This part replaces 31500-KY4-905. Price: $83.76 |
| 6 |
31600-HP2-671 |
RECTIFIER, REGULATE Price: $75.09 |
| 7 |
32100-HP2-840 |
WIRE HARNESS Price: $328.29 |
| 8 |
35850-HF1-671 |
SW ASSY., START MAG This part replaces 35850-HF1-670. Price: $118.85 |
| 9 |
35856-425-000 |
RUBBER, MAGNETIC SHOCK Price: $13.20 |
| 10 |
38211-KRG-003 |
COVER, FUSE Price: $3.05 |
| 11 |
90052-ZA0-800 |
WASHER, SPRING (6MM) (Honda Code 1310549) Price: $1.36 |
| 12 |
90112-GK8-010 |
BOLT, FLANGE (5X22) Price: $3.24 |
| 13 |
90652-KT1-771 |
BAND, WIRE (BLACK) Price: $5.62 |
| 14 |
94002-06390-0S |
NUT, HEX. (6MM) Price: $1.06 |
| 15 |
95701-06016-00 |
BOLT, FLANGE (6X16) (Honda Code 2410892) Price: $1.70 |
