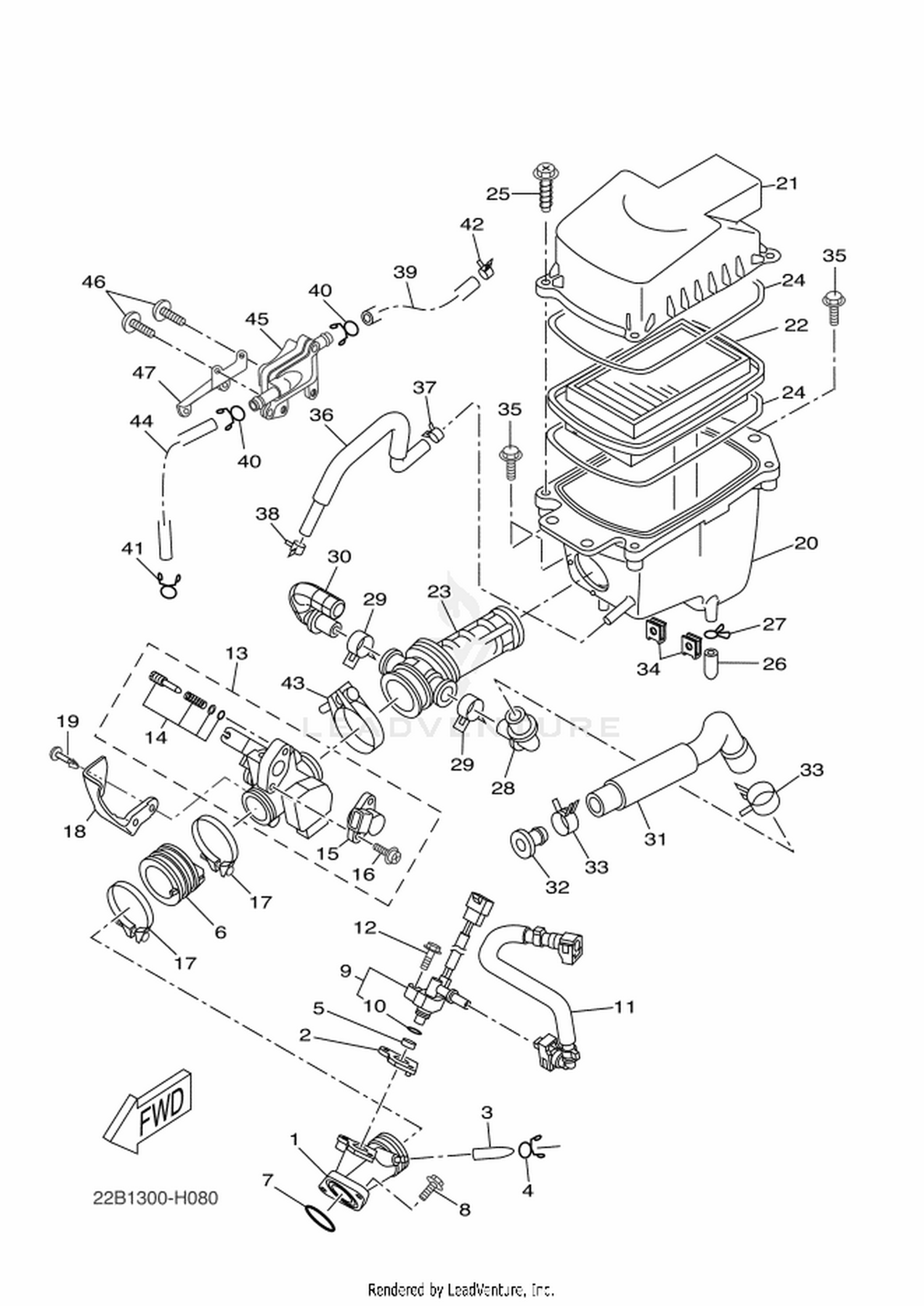

08 INTAKE

08 INTAKE

Parts (41)

RefPart NumberDescription
1 3C1-E3585-00 MANIFOLD Price: Call Us
2 3C1-E3556-00 GASKET, MANIFOLD Price: Call Us
3 5PX-13569-00 PLUG, BLIND Price: Call Us
4 90467-08075 CLIP Price: Call Us
5 90430-09801 GASKET Price: Call Us
6 3C1-E3586-00 JOINT, CARBURETOR 1 Price: Call Us
7 93210-32807 O-RING Price: Call Us
8 90149-06X02 SCREW Price: Call Us
9 5D7-13770-00 INJECTOR ASSY Price: Call Us
11 22B-13971-00 PIPE, FUEL 1 Price: Call Us
12 90105-06X46 BOLT, FLANGE Price: Call Us
13 5D7-E3750-01 THROTTLE BODY ASSY Price: Call Us
17 1B9-13575-00 BAND Price: Call Us
18 22B-E4293-00 COVER 1 Price: Call Us
19 90269-04025 RIVET Price: Call Us
20 22B-E4411-00 CASE, AIR CLEANER 1 Price: Call Us
21 5D7-E4412-01 CAP, CLEANER CASE 1 Price: Call Us
22 3C1-E4450-00 ELEMENT ASSY, AIR CLEANER Price: Call Us
23 22B-E4453-00 JOINT, AIR CLEANER 1 Price: Call Us
24 3C1-E4452-00 SEAL Price: Call Us
25 90163-05803 SCREW, TAPPING Price: Call Us
26 5TL-E443E-00 PIPE, DRAIN Price: Call Us
28 3C1-E4485-00 PIPE, JOINT Price: Call Us
29 90467-20050 CLIP Price: Call Us
30 3C1-E4419-00 PIPE Price: Call Us
31 22B-E441J-00 PIPE, SILENCER Price: Call Us
32 90338-16008 PLUG Price: Call Us
33 90467-23059 CLIP Price: Call Us
34 90183-060A6 NUT, SPRING Price: Call Us
35 90109-06X05 BOLT Price: Call Us
36 22B-E1166-00 PIPE, BREATHER 1 Price: Call Us
37 90467-13064 CLIP (16G) Price: Call Us
38 90467-13064 CLIP (16G) Price: Call Us
39 22B-E4882-00 HOSE, BEND 2 Price: Call Us
40 90467-14015 CLIP Price: Call Us
41 90467-14015 CLIP Price: Call Us
42 90467-14117 CLIP Price: Call Us
43 90450-39802 HOSE CLAMP ASSY Price: Call Us
44 22B-E4881-00 HOSE, BEND 1 Price: Call Us
45 5GD-14803-00 AIR INDUCTION SYSTEM ASSY Price: Call Us
46 92017-06012 BOLT, BUTTON HEAD Price: Call Us
