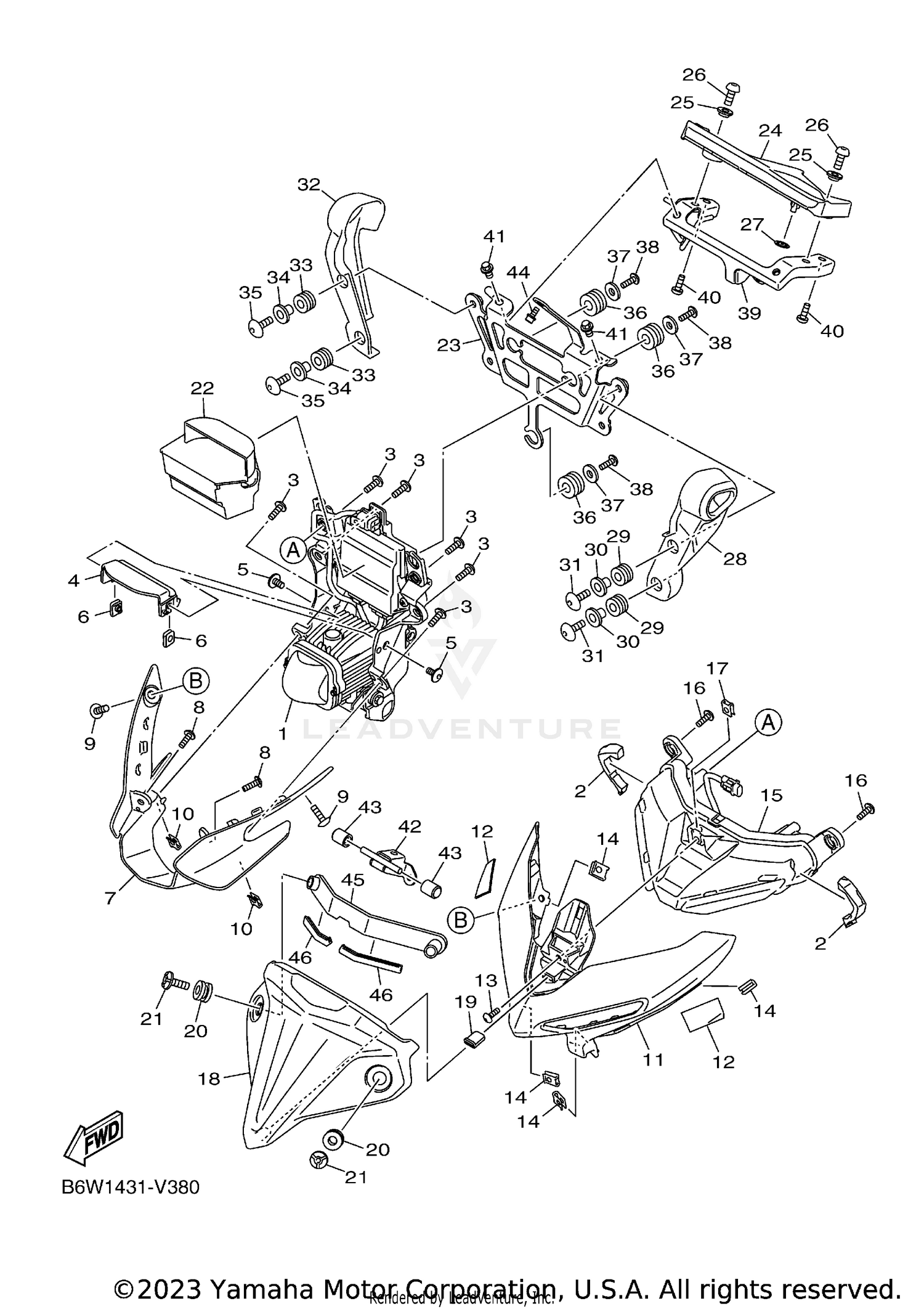

| Ref | Part Number | Description |
|---|
| 1 |
B9T-H4300-00-00 |
HEADLIGHT ASSY Price: $1,461.99 |
| 2 |
90520-10834-00 |
DAMPER, PLATE Price: $0.65 |
| 3 |
97707-50016-00 |
SCREW, TRUSS HEAD TAPPING Price: $1.85 |
| 4 |
B9T-H411E-00-00 |
STAY,HEAD LIGHT IN Price: $8.49 |
| 5 |
90111-05003-00 |
BOLT, HEXAGON SOCKET HEAD Price: $9.49 |
| 6 |
90183-050A6-00 |
NUT, SPRING This part replaces 90183-05076-00. Price: $2.95 |
| 7 |
B9T-H4144-00-00 |
COVER, HEADLIGHT Price: $14.49 |
| 8 |
97707-50016-00 |
SCREW, TRUSS HEAD TAPPING Price: $1.85 |
| 9 |
90160-05009-00 |
SCREW, ROUND TAPPI Price: $0.55 |
| 10 |
90183-05042-00 |
NUT, SPRING This part replaces 90183-05807-00. Price: $1.00 |
| 12 |
90520-20819-00 |
DAMPER, PLATE Price: $0.60 |
| 13 |
90160-05009-00 |
SCREW, ROUND TAPPI Price: $0.55 |
| 14 |
90183-05042-00 |
NUT, SPRING This part replaces 90183-05807-00. Price: $1.00 |
| 15 |
B9T-H4410-00-00 |
POSITION LIGHT ASS Price: $239.99 |
| 16 |
97707-50016-00 |
SCREW, TRUSS HEAD TAPPING Price: $1.85 |
| 17 |
90183-05042-00 |
NUT, SPRING This part replaces 90183-05807-00. Price: $1.00 |
| 19 |
1PA-F411J-00-00 |
DAMPER, SIDE COVER Price: $0.60 |
| 20 |
90480-12808-00 |
GROMMET Price: $2.45 |
| 21 |
90111-06870-00 |
BOLT,HEX. SOCKET B Price: $6.49 |
| 22 |
B9T-H4196-00-00 |
COVER, SOCKET Price: $10.49 |
| 23 |
B9T-F8357-00-00 |
STAY 2 Price: $19.49 |
| 24 |
B9T-F8345-00-00 |
MOLE 1 Price: $9.49 |
| 25 |
90387-06242-00 |
COLLAR Price: $7.49 |
| 26 |
90111-06029-00 |
BOLT, HEX. SOCKET BUTTON Price: $6.49 |
| 27 |
90183-05M02-00 |
NUT, SPRING Price: $0.50 |
| 28 |
B9T-F83D3-00-00 |
COVER, FLASHER 1 Price: $3.40 |
| 29 |
90480-12808-00 |
GROMMET Price: $2.45 |
| 30 |
90387-06899-00 |
COLLAR Price: $3.50 |
| 31 |
90111-06086-00 |
BOLT, HEX. SOCKET BUTTON Price: $6.49 |
| 32 |
B9T-F83D4-00-00 |
COVER, FLASHER 2 Price: $9.49 |
| 33 |
90480-12808-00 |
GROMMET Price: $2.45 |
| 34 |
90387-06899-00 |
COLLAR Price: $3.50 |
| 35 |
90111-06086-00 |
BOLT, HEX. SOCKET BUTTON Price: $6.49 |
| 36 |
90480-14004-00 |
GROMMET Price: $9.49 |
| 37 |
90201-061A5-00 |
WASHER, PLATE This part replaces 90201-05036-00. Price: $8.49 |
| 38 |
97707-50016-00 |
SCREW, TRUSS HEAD TAPPING Price: $1.85 |
| 39 |
B9T-F8356-00-00 |
STAY 1 Price: $18.49 |
| 40 |
92012-06014-00 |
BOLT, BUTTON HEAD Price: $9.49 |
| 41 |
95022-06012-00 |
BOLT, FLANGE Price: $3.55 |
| 42 |
B08-F334G-00-00 |
BRACKET 1 Price: $14.49 |
| 43 |
2SN-H4527-00-00 |
DAMPER Price: $3.50 |
| 44 |
90110-06865-00 |
BOLT, HEXAGON SOCK Price: $0.50 |
| 45 |
B9T-H454L-00-00 |
BRACKET Price: $10.49 |
