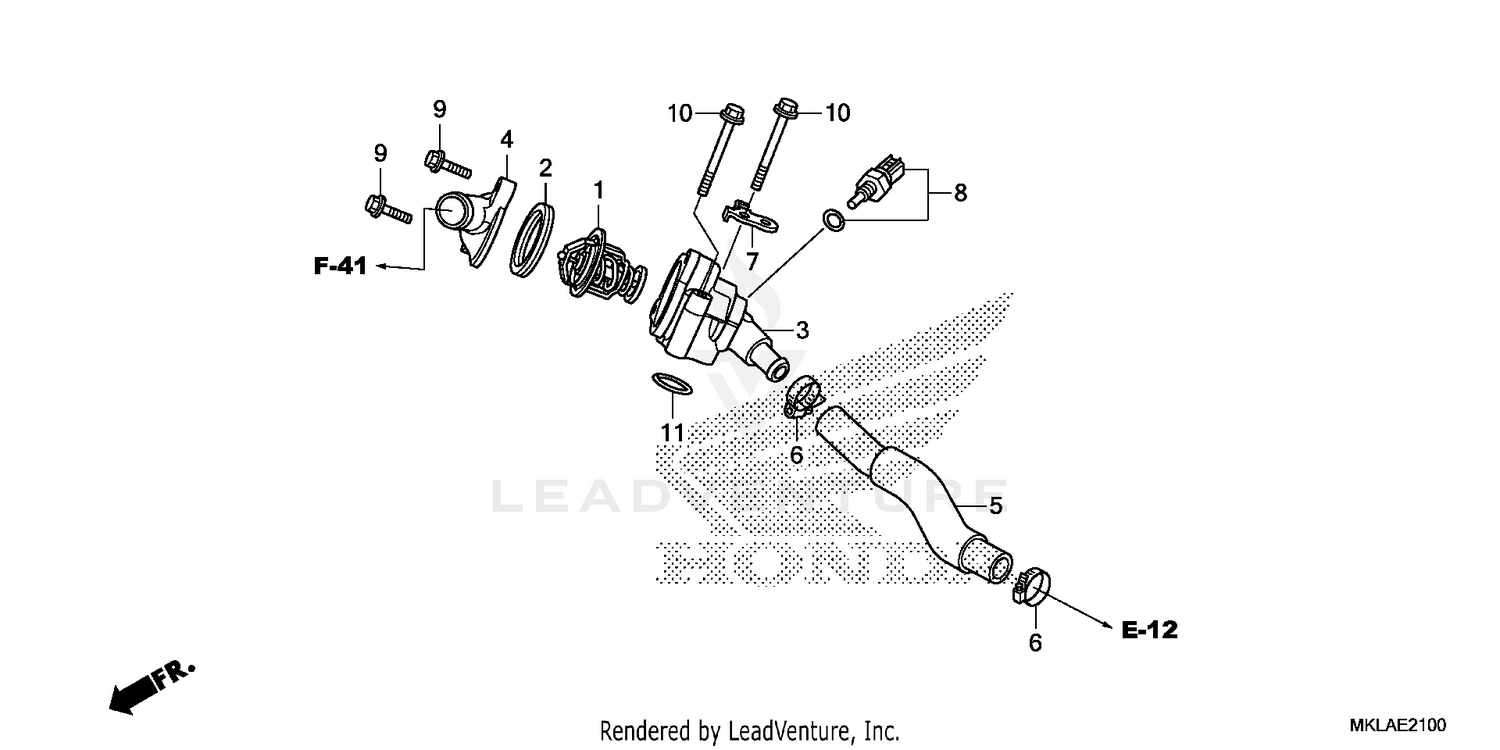

THERMOSTAT
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 19300-MCJ-003 | THERMOSTAT ASSY. Price: $62.93 |
| 2 | 19305-KV3-010 | RUBBER, THERMOSTAT Price: $7.62 |
| 3 | 19310-MGS-D30 | CASE, THERMOSTAT Price: $105.24 |
| 4 | 19316-MGS-D30 | COVER, THERMOSTAT Price: $30.25 |
| 5 | 19322-MGS-D30 | HOSE, WATER BYPASS Price: $18.20 |
| 6 | 19504-KY1-003 | CLAMP, WATER HOSE (25MM) Price: $12.47 |
| 7 | 32150-MGS-D30 | STAY, HARNESS Price: $3.09 |
| 8 | 37870-MGS-D31 | SENSOR ASSY., WATER TEMPERATURE Price: $60.36 |
| 9 | 90027-GHB-670 | BOLT, FLANGE (6X22) Price: $2.56 |
| 10 | 90027-GHB-770 | BOLT, FLANGE (6X55) Price: $3.69 |
| 11 | 91356-425-005 | O-RING (29.7X2.4) (NOK) This part replaces 91356-425-003. Price: $3.51 |
